SDO HMI 2014-08-26 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.48 | 674.77 | 84.32 | 485.67 | 7.88 | 344.13 | 46.82 | 274.18 | 0.7265 | -352.0 | -279.8 | |
|
previous
or next observation for the same group /

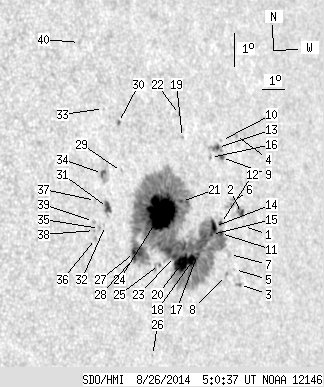

back to the solar disc SDO HMI 2014-08-26 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.62 | 7.56 | 347.35 | 50.04 | 273.93 | 0.7639 | -599.0 | -482.2 | |
| 1.98 | 5.75 | 1.51 | 4.39 | 7.96 | 347.32 | 50.01 | 274.45 | 0.7634 | -487.4 | -454.5 | |
| 0.36 | 2.16 | 0.27 | 1.64 | 5.83 | 346.92 | 49.61 | 271.62 | 0.7603 | -663.0 | -551.3 | |
| 0.00 | 1.62 | 0.00 | 1.24 | 10.33 | 347.50 | 50.19 | 277.57 | 0.7646 | 230.0 | 266.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 6.31 | 346.74 | 49.43 | 272.23 | 0.7579 | -252.0 | -222.3 | |
| 0.00 | 6.56 | 0.00 | 4.96 | 8.31 | 346.86 | 49.55 | 274.89 | 0.7580 | -709.0 | -522.0 | |
| 0.00 | 2.07 | 0.00 | 1.56 | 6.78 | 346.57 | 49.26 | 272.84 | 0.7556 | -311.0 | -272.0 | |
| 0.00 | 2.33 | 0.00 | 1.75 | 6.16 | 346.35 | 49.04 | 272.00 | 0.7535 | 512.0 | 244.8 | |
| 1.44 | 12.39 | 1.08 | 9.31 | 9.73 | 346.70 | 49.39 | 276.76 | 0.7557 | 760.7 | 594.1 | |
| 0.00 | 0.81 | 0.00 | 0.61 | 10.24 | 346.81 | 49.49 | 277.44 | 0.7569 | 352.0 | 281.7 | |
| 1.98 | 606.03 | 1.48 | 435.81 | 7.45 | 346.25 | 48.94 | 273.71 | 0.7515 | -887.1 | -322.5 | |
| 1.08 | -11.00 | 0.81 | -11.00 | 7.75 | 346.30 | 48.98 | 274.12 | 0.7518 | -729.2 | 999999 | |
| 1.44 | -9.00 | 1.08 | -9.00 | 10.05 | 346.58 | 49.26 | 277.18 | 0.7543 | 684.9 | 999999 | |
| 3.86 | -11.00 | 2.87 | -11.00 | 7.69 | 346.01 | 48.69 | 274.01 | 0.7486 | -998.9 | 999999 | |
| 0.81 | -11.00 | 0.60 | -11.00 | 7.46 | 345.83 | 48.52 | 273.69 | 0.7467 | -1108.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.21 | 9.78 | 346.19 | 48.88 | 276.82 | 0.7499 | 751.0 | 607.4 | |
| 1.80 | -11.00 | 1.32 | -11.00 | 6.91 | 345.11 | 47.80 | 272.91 | 0.7386 | 197.6 | 999999 | |
| 8.26 | -11.00 | 6.02 | -11.00 | 6.75 | 344.86 | 47.55 | 272.67 | 0.7358 | 642.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 10.50 | 345.03 | 47.72 | 277.78 | 0.7366 | -361.0 | -300.2 | |
| 17.15 | -11.00 | 12.39 | -11.00 | 6.71 | 344.36 | 47.04 | 272.57 | 0.7299 | 853.5 | 999999 | |
| 1.26 | -11.00 | 0.91 | -11.00 | 8.58 | 344.63 | 47.32 | 275.15 | 0.7322 | -70.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.18 | 11.20 | 345.05 | 47.73 | 278.73 | 0.7367 | -478.0 | -475.2 | |
| 2.69 | -11.00 | 1.93 | -11.00 | 6.95 | 344.07 | 46.76 | 272.88 | 0.7264 | -316.5 | 999999 | |
| 63.04 | -11.00 | 44.92 | -11.00 | 8.32 | 343.69 | 46.38 | 274.76 | 0.7211 | -1134.5 | 999999 | |
| 0.36 | 3.86 | 0.25 | 2.73 | 6.77 | 343.38 | 46.07 | 272.57 | 0.7182 | 255.5 | 233.1 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 4.05 | 342.81 | 45.49 | 268.71 | 0.7139 | 433.0 | 363.4 | |
| 1.62 | -11.00 | 1.13 | -11.00 | 7.22 | 342.35 | 45.03 | 273.14 | 0.7053 | 462.7 | 999999 | |
| 2.24 | -11.00 | 1.56 | -11.00 | 7.07 | 342.33 | 45.01 | 272.92 | 0.7051 | 690.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 9.71 | 342.16 | 44.84 | 276.68 | 0.7021 | -427.0 | -347.8 | |
| 0.54 | 1.71 | 0.37 | 1.19 | 11.20 | 342.30 | 44.99 | 278.80 | 0.7041 | 676.5 | 589.0 | |
| 3.95 | 6.64 | 2.71 | 4.55 | 8.68 | 341.38 | 44.07 | 275.18 | 0.6927 | -723.7 | -545.1 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 8.14 | 341.22 | 43.91 | 274.40 | 0.6909 | 106.0 | 125.0 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 11.67 | 341.74 | 44.43 | 279.50 | 0.6974 | 264.0 | 387.0 | |
| 1.62 | 7.72 | 1.11 | 5.29 | 9.72 | 341.34 | 44.02 | 276.69 | 0.6920 | 717.3 | 372.5 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 8.07 | 340.96 | 43.64 | 274.29 | 0.6876 | 435.0 | 421.2 | |
| 0.00 | 1.53 | 0.00 | 1.04 | 7.79 | 340.75 | 43.44 | 273.86 | 0.6851 | 648.0 | 489.9 | |
| 0.00 | 1.17 | 0.00 | 0.79 | 8.93 | 340.91 | 43.60 | 275.54 | 0.6867 | 482.0 | 394.4 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 8.03 | 340.74 | 43.43 | 274.21 | 0.6848 | 644.0 | 524.0 | |
| 0.00 | 1.62 | 0.00 | 1.10 | 8.31 | 340.73 | 43.42 | 274.62 | 0.6847 | 720.0 | 567.0 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 13.75 | 341.16 | 43.85 | 282.54 | 0.6916 | 484.0 | 344.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
