SDO HMI 2014-08-26 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.72 | 0.00 | 10.49 | -13.08 | 329.25 | 31.93 | 237.47 | 0.6149 | -60.4 | -59.0 | |
|
previous
or next observation for the same group /

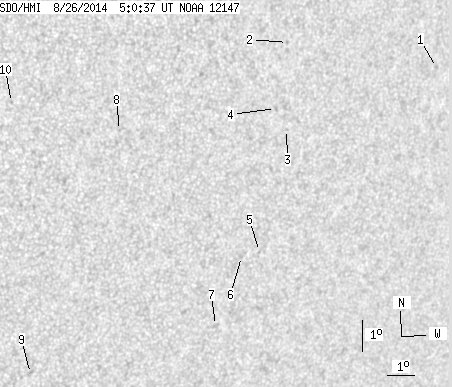

back to the solar disc SDO HMI 2014-08-26 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.03 | -8.92 | 337.18 | 39.86 | 248.67 | 0.6821 | 658.0 | 480.5 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -7.69 | 331.31 | 34.00 | 247.12 | 0.6037 | 662.0 | 501.9 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -10.44 | 331.57 | 34.26 | 243.18 | 0.6226 | 479.0 | 480.8 | |
| 0.00 | 2.07 | 0.00 | 1.29 | -9.74 | 331.08 | 33.77 | 243.86 | 0.6124 | 478.0 | 448.3 | |
| 0.00 | 1.35 | 0.00 | 0.87 | -14.32 | 331.13 | 33.82 | 237.43 | 0.6422 | -386.0 | -355.3 | |
| 0.00 | 1.71 | 0.00 | 1.09 | -14.43 | 330.48 | 33.16 | 236.76 | 0.6356 | -504.0 | -350.8 | |
| 0.00 | 2.96 | 0.00 | 1.92 | -16.65 | 329.90 | 32.58 | 233.37 | 0.6452 | -56.0 | -136.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -10.07 | 325.50 | 28.19 | 238.93 | 0.5452 | -519.0 | -377.4 | |
| 0.00 | 3.05 | 0.00 | 1.86 | -17.81 | 323.35 | 26.04 | 225.63 | 0.5869 | -786.0 | -480.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -8.96 | 321.70 | 24.39 | 236.96 | 0.4886 | -630.0 | -460.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
