SDO HMI 2014-08-26 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.56 | 668.34 | 75.84 | 491.13 | 7.97 | 344.08 | 47.86 | 274.36 | 0.7387 | -399.3 | -283.0 | |
|
previous
or next observation for the same group /

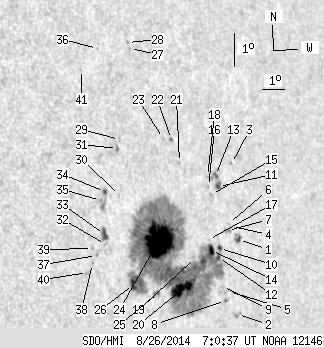

back to the solar disc SDO HMI 2014-08-26 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.98 | 5.66 | 1.55 | 4.42 | 8.00 | 347.40 | 51.18 | 274.57 | 0.7763 | -485.0 | -423.5 | |
| 0.00 | 3.77 | 0.00 | 2.93 | 5.75 | 347.01 | 50.79 | 271.64 | 0.7736 | -734.0 | -564.0 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 10.31 | 347.53 | 51.31 | 277.57 | 0.7769 | 509.0 | 418.6 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 8.42 | 347.13 | 50.92 | 275.11 | 0.7732 | -328.0 | -328.3 | |
| 0.00 | 3.32 | 0.00 | 2.56 | 6.48 | 346.67 | 50.46 | 272.56 | 0.7692 | 77.0 | -39.6 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 8.53 | 347.01 | 50.79 | 275.24 | 0.7717 | -380.0 | -310.5 | |
| 0.00 | 2.87 | 0.00 | 2.23 | 8.32 | 346.92 | 50.70 | 274.96 | 0.7709 | -680.0 | -551.7 | |
| 0.36 | 1.62 | 0.28 | 1.24 | 6.22 | 346.49 | 50.28 | 272.20 | 0.7674 | 270.5 | 134.9 | |
| 0.00 | 1.62 | 0.00 | 1.24 | 6.66 | 346.41 | 50.19 | 272.76 | 0.7662 | -206.0 | -235.5 | |
| 1.62 | 595.83 | 1.24 | 437.57 | 7.82 | 346.44 | 50.23 | 274.28 | 0.7659 | -667.2 | -326.7 | |
| 1.62 | 10.42 | 1.25 | 8.02 | 9.68 | 346.75 | 50.53 | 276.73 | 0.7685 | 793.1 | 606.8 | |
| 1.80 | -10.00 | 1.38 | -10.00 | 7.55 | 346.35 | 50.14 | 273.93 | 0.7650 | -930.7 | 999999 | |
| 1.08 | -11.00 | 0.83 | -11.00 | 10.03 | 346.68 | 50.46 | 277.18 | 0.7677 | 672.9 | 999999 | |
| 4.13 | -10.00 | 3.14 | -10.00 | 7.79 | 346.06 | 49.84 | 274.22 | 0.7615 | -989.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.17 | 9.47 | 346.37 | 50.15 | 276.45 | 0.7643 | -351.0 | -187.9 | |
| 0.00 | 0.90 | 0.00 | 0.69 | 9.73 | 346.27 | 50.06 | 276.78 | 0.7633 | 673.0 | 635.3 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 8.14 | 345.97 | 49.76 | 274.67 | 0.7604 | -458.0 | -405.4 | |
| 0.00 | 1.08 | 0.00 | 0.82 | 10.03 | 346.29 | 50.07 | 277.18 | 0.7634 | 698.0 | 618.0 | |
| 0.00 | 0.81 | 0.00 | 0.61 | 7.65 | 345.28 | 49.06 | 273.99 | 0.7528 | -658.0 | -573.1 | |
| 20.92 | -10.00 | 15.46 | -10.00 | 6.75 | 344.50 | 48.28 | 272.73 | 0.7444 | 812.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 10.57 | 345.07 | 48.86 | 277.89 | 0.7496 | -486.0 | -414.6 | |
| 0.45 | 1.53 | 0.33 | 1.13 | 11.30 | 344.86 | 48.64 | 278.86 | 0.7472 | -541.6 | -445.8 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 11.36 | 344.50 | 48.28 | 278.95 | 0.7431 | -483.0 | -391.4 | |
| 59.63 | -10.00 | 43.35 | -10.00 | 8.32 | 343.68 | 47.46 | 274.80 | 0.7339 | -1185.3 | 999999 | |
| 0.63 | 3.68 | 0.46 | 2.66 | 6.75 | 343.45 | 47.23 | 272.65 | 0.7321 | 404.7 | 365.1 | |
| 4.58 | -10.00 | 3.25 | -10.00 | 7.09 | 342.37 | 46.16 | 273.04 | 0.7190 | 490.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 14.21 | 343.64 | 47.42 | 282.86 | 0.7345 | -680.0 | -595.3 | |
| 0.00 | 1.26 | 0.00 | 0.91 | 14.40 | 343.60 | 47.38 | 283.12 | 0.7341 | -473.0 | -490.8 | |
| 0.00 | 1.26 | 0.00 | 0.89 | 11.51 | 342.51 | 46.30 | 279.20 | 0.7199 | 442.0 | 400.6 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 9.83 | 342.18 | 45.96 | 276.85 | 0.7158 | -315.0 | -216.0 | |
| 0.00 | 2.78 | 0.00 | 1.97 | 11.25 | 342.37 | 46.15 | 278.84 | 0.7181 | 700.0 | 502.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 8.40 | 341.33 | 45.11 | 274.82 | 0.7057 | -715.0 | -625.4 | |
| 3.68 | 6.74 | 2.57 | 4.69 | 8.71 | 341.33 | 45.11 | 275.26 | 0.7056 | -648.1 | -473.9 | |
| 1.08 | 6.82 | 0.75 | 4.77 | 10.00 | 341.55 | 45.33 | 277.10 | 0.7081 | 586.8 | 374.5 | |
| 0.00 | 1.26 | 0.00 | 0.88 | 9.75 | 341.33 | 45.11 | 276.73 | 0.7054 | 796.0 | 736.4 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 14.34 | 342.21 | 45.99 | 283.16 | 0.7179 | 497.0 | 435.1 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 8.11 | 340.89 | 44.68 | 274.38 | 0.7004 | 499.0 | 438.8 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 7.88 | 340.69 | 44.47 | 274.05 | 0.6980 | 510.0 | 454.2 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 8.33 | 340.75 | 44.54 | 274.70 | 0.6986 | 700.0 | 512.6 | |
| 0.00 | 2.60 | 0.00 | 1.79 | 7.63 | 340.44 | 44.22 | 273.67 | 0.6950 | 583.0 | 539.4 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 13.76 | 341.34 | 45.12 | 282.44 | 0.7071 | 663.0 | 558.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
