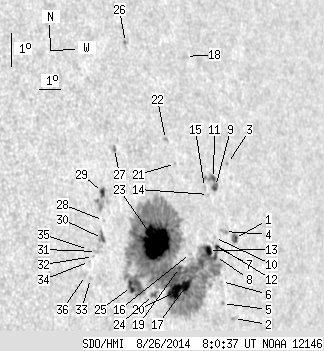

SDO HMI 2014-08-26 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.12 | 658.79 | 80.99 | 489.07 | 7.94 | 344.12 | 48.45 | 274.35 | 0.7456 | -379.9 | -290.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.41 | 4.94 | 2.70 | 3.91 | 8.07 | 347.41 | 51.74 | 274.69 | 0.7823 | -474.5 | -322.7 | |
| 0.00 | 2.33 | 0.00 | 1.84 | 5.66 | 346.99 | 51.32 | 271.58 | 0.7794 | -749.0 | -566.1 | |
| 0.00 | 0.81 | 0.00 | 0.64 | 10.35 | 347.54 | 51.87 | 277.62 | 0.7830 | 498.0 | 434.3 | |
| 0.00 | 3.14 | 0.00 | 2.46 | 8.32 | 346.96 | 51.30 | 275.00 | 0.7774 | -589.0 | -531.9 | |
| 0.00 | 1.26 | 0.00 | 0.98 | 6.17 | 346.52 | 50.85 | 272.19 | 0.7739 | 271.0 | 279.8 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 6.83 | 346.57 | 50.90 | 273.05 | 0.7739 | -335.0 | -366.3 | |
| 1.62 | 598.15 | 1.26 | 443.87 | 7.88 | 346.49 | 50.82 | 274.40 | 0.7724 | -599.6 | -324.0 | |
| 1.89 | -7.00 | 1.46 | -7.00 | 7.61 | 346.40 | 50.73 | 274.05 | 0.7715 | -830.9 | 999999 | |
| 2.96 | 9.61 | 2.31 | 7.49 | 9.72 | 346.80 | 51.13 | 276.79 | 0.7751 | 790.3 | 570.2 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 8.19 | 346.45 | 50.78 | 274.80 | 0.7718 | -541.0 | -444.4 | |
| 1.80 | -9.00 | 1.40 | -9.00 | 9.96 | 346.76 | 51.09 | 277.11 | 0.7746 | 636.8 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 8.02 | 346.32 | 50.65 | 274.57 | 0.7705 | -374.0 | -430.6 | |
| 4.85 | -7.00 | 3.74 | -7.00 | 7.83 | 346.10 | 50.43 | 274.31 | 0.7681 | -974.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 9.51 | 346.41 | 50.74 | 276.51 | 0.7709 | -233.0 | -188.4 | |
| 0.00 | 1.62 | 0.00 | 1.25 | 9.74 | 346.26 | 50.60 | 276.80 | 0.7692 | 568.0 | 569.8 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 7.82 | 345.23 | 49.56 | 274.24 | 0.7584 | -505.0 | -503.6 | |
| 7.18 | -7.00 | 5.41 | -7.00 | 6.87 | 344.90 | 49.23 | 272.97 | 0.7552 | 580.6 | 999999 | |
| 0.00 | 2.60 | 0.00 | 2.02 | 13.75 | 346.36 | 50.69 | 282.04 | 0.7707 | 82.0 | 131.6 | |
| 1.35 | -7.00 | 1.01 | -7.00 | 7.44 | 344.66 | 48.99 | 273.71 | 0.7521 | -528.1 | 999999 | |
| 15.45 | -7.00 | 11.51 | -7.00 | 6.74 | 344.37 | 48.70 | 272.75 | 0.7492 | 856.6 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 10.58 | 345.05 | 49.38 | 277.90 | 0.7556 | -470.0 | -396.2 | |
| 0.00 | 1.98 | 0.00 | 1.48 | 11.35 | 344.75 | 49.08 | 278.92 | 0.7522 | -596.0 | -433.8 | |
| 57.83 | -7.00 | 42.49 | -7.00 | 8.29 | 343.72 | 48.05 | 274.80 | 0.7409 | -1168.5 | 999999 | |
| 1.62 | -7.00 | 1.18 | -7.00 | 6.74 | 343.36 | 47.69 | 272.67 | 0.7375 | 494.8 | 999999 | |
| 4.85 | -7.00 | 3.48 | -7.00 | 7.07 | 342.41 | 46.74 | 273.05 | 0.7260 | 488.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.32 | 14.43 | 343.67 | 48.00 | 283.11 | 0.7413 | -702.0 | -527.6 | |
| 0.00 | 2.33 | 0.00 | 1.67 | 11.29 | 342.37 | 46.71 | 278.88 | 0.7247 | 693.0 | 530.3 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 9.17 | 341.48 | 45.81 | 275.92 | 0.7140 | -355.0 | -319.7 | |
| 2.51 | 11.58 | 1.78 | 8.17 | 10.01 | 341.58 | 45.91 | 277.11 | 0.7151 | 661.8 | 446.2 | |
| 1.80 | 5.66 | 1.26 | 3.98 | 8.63 | 341.35 | 45.68 | 275.16 | 0.7125 | -691.6 | -533.1 | |
| 0.00 | 2.07 | 0.00 | 1.45 | 8.26 | 341.03 | 45.36 | 274.63 | 0.7087 | 369.0 | 338.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 8.12 | 340.87 | 45.20 | 274.43 | 0.7069 | 549.0 | 503.6 | |
| 0.00 | 1.35 | 0.00 | 0.94 | 7.47 | 340.65 | 44.98 | 273.49 | 0.7045 | 508.0 | 375.9 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 7.98 | 340.68 | 45.01 | 274.22 | 0.7046 | 436.0 | 435.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 8.35 | 340.69 | 45.02 | 274.74 | 0.7046 | 485.0 | 549.8 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 7.58 | 340.45 | 44.78 | 273.63 | 0.7020 | 636.0 | 544.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
