SDO HMI 2014-08-26 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.63 | 609.75 | 82.64 | 484.49 | 7.92 | 344.21 | 51.83 | 274.52 | 0.7833 | -426.3 | -280.5 | |
|
previous
or next observation for the same group /

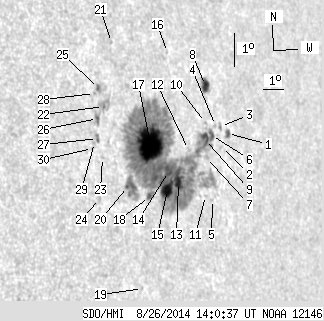

back to the solar disc SDO HMI 2014-08-26 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 3.95 | 1.77 | 3.39 | 8.16 | 347.68 | 55.31 | 275.03 | 0.8192 | -413.5 | -283.7 | |
| 0.00 | 1.44 | 0.00 | 1.22 | 7.78 | 347.28 | 54.91 | 274.53 | 0.8154 | -544.0 | -427.2 | |
| 0.00 | 2.60 | 0.00 | 2.22 | 8.41 | 347.36 | 54.99 | 275.32 | 0.8159 | -218.0 | -208.9 | |
| 0.00 | 1.08 | 0.00 | 0.91 | 8.47 | 347.10 | 54.73 | 275.37 | 0.8133 | -441.0 | -375.2 | |
| 0.00 | 0.90 | 0.00 | 0.75 | 6.26 | 346.54 | 54.17 | 272.61 | 0.8089 | -654.0 | -585.8 | |
| 3.05 | 550.68 | 2.57 | 437.67 | 8.19 | 346.83 | 54.46 | 275.01 | 0.8107 | -566.5 | -307.4 | |
| 0.00 | 2.42 | 0.00 | 2.02 | 7.55 | 346.44 | 54.07 | 274.20 | 0.8071 | -293.0 | -276.3 | |
| 6.46 | 10.50 | 5.43 | 8.83 | 9.72 | 346.85 | 54.48 | 276.90 | 0.8103 | 693.8 | 420.7 | |
| 5.92 | -6.00 | 4.95 | -6.00 | 8.10 | 346.50 | 54.12 | 274.88 | 0.8073 | -838.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.98 | 8.61 | 346.60 | 54.23 | 275.52 | 0.8082 | -463.0 | -385.4 | |
| 0.00 | 1.08 | 0.00 | 0.90 | 6.42 | 346.20 | 53.83 | 272.77 | 0.8053 | -320.0 | -253.2 | |
| 0.00 | 1.79 | 0.00 | 1.47 | 7.89 | 345.57 | 53.20 | 274.56 | 0.7979 | -430.0 | -477.0 | |
| 6.10 | -6.00 | 4.92 | -6.00 | 6.94 | 344.90 | 52.53 | 273.32 | 0.7914 | 558.7 | 999999 | |
| 6.91 | -6.00 | 5.51 | -6.00 | 7.32 | 344.46 | 52.09 | 273.77 | 0.7864 | -579.0 | 999999 | |
| 13.28 | -6.00 | 10.58 | -6.00 | 6.79 | 344.32 | 51.95 | 273.08 | 0.7853 | 737.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 10.89 | 345.16 | 52.79 | 278.34 | 0.7927 | -380.0 | -307.2 | |
| 55.45 | -6.00 | 43.53 | -6.00 | 8.25 | 343.73 | 51.35 | 274.91 | 0.7781 | -1072.7 | 999999 | |
| 2.15 | -6.00 | 1.68 | -6.00 | 6.66 | 343.42 | 51.04 | 272.84 | 0.7756 | 434.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.63 | 3.92 | 342.76 | 50.39 | 269.23 | 0.7709 | 544.0 | 436.6 | |
| 0.90 | -6.00 | 0.69 | -6.00 | 7.06 | 342.41 | 50.04 | 273.28 | 0.7642 | 453.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.55 | 11.46 | 342.51 | 50.14 | 279.05 | 0.7641 | 558.0 | 463.8 | |
| 0.36 | 10.50 | 0.27 | 7.91 | 9.57 | 341.71 | 49.34 | 276.56 | 0.7552 | -129.2 | 95.9 | |
| 0.00 | 1.17 | 0.00 | 0.87 | 8.04 | 341.38 | 49.01 | 274.51 | 0.7520 | -199.0 | -153.0 | |
| 0.00 | 2.60 | 0.00 | 1.94 | 6.82 | 341.06 | 48.69 | 272.86 | 0.7490 | 529.0 | 384.0 | |
| 0.00 | 3.23 | 0.00 | 2.43 | 10.13 | 341.59 | 49.22 | 277.30 | 0.7537 | 743.0 | 597.0 | |
| 0.99 | 6.01 | 0.74 | 4.49 | 9.24 | 341.36 | 48.99 | 276.11 | 0.7513 | -255.0 | -49.8 | |
| 0.00 | 3.14 | 0.00 | 2.34 | 8.63 | 341.25 | 48.88 | 275.30 | 0.7503 | -679.0 | -557.6 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 10.00 | 341.37 | 49.00 | 277.12 | 0.7513 | 622.0 | 546.1 | |
| 0.00 | 1.53 | 0.00 | 1.14 | 8.53 | 341.09 | 48.72 | 275.15 | 0.7485 | -746.0 | -513.2 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 8.36 | 340.97 | 48.60 | 274.91 | 0.7471 | 263.0 | 181.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
