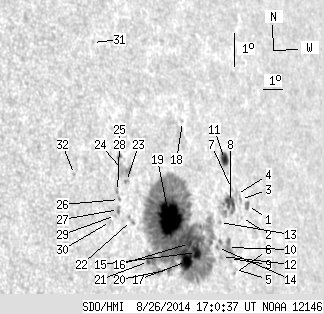

SDO HMI 2014-08-26 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.95 | 574.33 | 75.19 | 472.77 | 7.89 | 344.11 | 53.40 | 274.58 | 0.7998 | -419.8 | -314.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.77 | 0.00 | 3.39 | 8.16 | 347.84 | 57.13 | 275.14 | 0.8368 | -408.0 | -237.8 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 7.84 | 347.43 | 56.72 | 274.72 | 0.8331 | -434.0 | -396.7 | |
| 0.00 | 2.15 | 0.00 | 1.92 | 8.38 | 347.49 | 56.78 | 275.38 | 0.8334 | -248.0 | -168.8 | |
| 0.00 | 3.23 | 0.00 | 2.86 | 8.55 | 347.31 | 56.60 | 275.58 | 0.8316 | -253.0 | -193.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 6.31 | 346.81 | 56.09 | 272.84 | 0.8281 | -498.0 | -547.7 | |
| 0.00 | 0.99 | 0.00 | 0.87 | 6.20 | 346.73 | 56.02 | 272.69 | 0.8274 | -595.0 | -531.7 | |
| 0.00 | 0.72 | 0.00 | 0.63 | 8.76 | 347.08 | 56.36 | 275.81 | 0.8293 | -312.0 | -273.0 | |
| 7.80 | 21.08 | 6.85 | 18.45 | 8.35 | 346.93 | 56.21 | 275.31 | 0.8280 | -634.1 | -598.7 | |
| 0.00 | 3.14 | 0.00 | 2.74 | 6.68 | 346.54 | 55.83 | 273.26 | 0.8252 | -216.0 | -138.2 | |
| 0.00 | 11.93 | 0.00 | 10.39 | 7.02 | 346.49 | 55.78 | 273.66 | 0.8245 | -336.0 | -236.2 | |
| 6.28 | 9.33 | 5.51 | 8.18 | 9.67 | 346.91 | 56.20 | 276.90 | 0.8273 | 697.4 | 405.1 | |
| 0.00 | 2.06 | 0.00 | 1.78 | 6.78 | 346.12 | 55.41 | 273.35 | 0.8210 | -203.0 | -178.6 | |
| 0.00 | 1.52 | 0.00 | 1.32 | 7.81 | 346.21 | 55.50 | 274.61 | 0.8213 | -740.0 | -675.3 | |
| 0.00 | 1.79 | 0.00 | 1.54 | 7.07 | 345.96 | 55.25 | 273.69 | 0.8192 | 448.0 | 250.4 | |
| 7.80 | 480.32 | 6.53 | 393.55 | 7.03 | 344.84 | 54.12 | 273.55 | 0.8079 | 482.1 | -343.0 | |
| 1.97 | -15.00 | 1.64 | -15.00 | 7.34 | 344.52 | 53.81 | 273.91 | 0.8045 | -379.3 | 999999 | |
| 13.72 | -15.00 | 11.33 | -15.00 | 6.81 | 344.28 | 53.56 | 273.24 | 0.8023 | 636.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.83 | 11.03 | 344.99 | 54.28 | 278.51 | 0.8079 | -335.0 | -254.3 | |
| 50.59 | -15.00 | 41.13 | -15.00 | 8.19 | 343.65 | 52.94 | 274.92 | 0.7950 | -1119.7 | 999999 | |
| 0.81 | -15.00 | 0.65 | -15.00 | 6.66 | 343.38 | 52.67 | 272.97 | 0.7931 | 487.6 | 999999 | |
| 1.26 | -15.00 | 0.99 | -15.00 | 7.00 | 342.39 | 51.67 | 273.32 | 0.7822 | 382.7 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.94 | 8.31 | 341.77 | 51.06 | 274.97 | 0.7748 | -608.0 | -372.9 | |
| 0.00 | 1.97 | 0.00 | 1.54 | 9.50 | 341.76 | 51.05 | 276.51 | 0.7743 | -526.0 | -302.3 | |
| 0.00 | 12.11 | 0.00 | 9.42 | 9.85 | 341.69 | 50.97 | 276.95 | 0.7734 | 309.0 | 294.9 | |
| 0.72 | 2.60 | 0.56 | 2.02 | 10.28 | 341.59 | 50.88 | 277.52 | 0.7722 | 729.8 | 593.9 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 8.99 | 341.32 | 50.60 | 275.84 | 0.7695 | -414.0 | -355.8 | |
| 0.00 | 2.60 | 0.00 | 2.01 | 8.70 | 341.21 | 50.50 | 275.45 | 0.7685 | -682.0 | -547.4 | |
| 0.00 | 1.35 | 0.00 | 1.04 | 9.24 | 341.27 | 50.56 | 276.16 | 0.7689 | -199.0 | -128.2 | |
| 0.00 | 1.70 | 0.00 | 1.31 | 8.53 | 341.04 | 50.32 | 275.22 | 0.7666 | -582.0 | -403.1 | |
| 0.00 | 1.61 | 0.00 | 1.23 | 8.37 | 340.77 | 50.05 | 275.00 | 0.7636 | 584.0 | 431.5 | |
| 0.00 | 1.08 | 0.00 | 0.83 | 13.83 | 341.20 | 50.48 | 282.14 | 0.7685 | 165.0 | 281.9 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 9.94 | 339.36 | 48.65 | 277.04 | 0.7473 | 573.0 | 441.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
