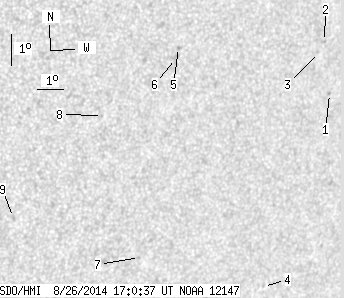

SDO HMI 2014-08-26 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.26 | 0.00 | 9.78 | -10.62 | 325.91 | 35.19 | 243.44 | 0.6355 | -147.3 | -174.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.74 | -10.21 | 331.35 | 40.63 | 247.32 | 0.6969 | 657.0 | 569.8 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -8.54 | 330.91 | 40.20 | 249.36 | 0.6843 | 524.0 | 478.0 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -8.87 | 330.71 | 40.00 | 248.81 | 0.6834 | 724.0 | 596.7 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -16.29 | 329.85 | 39.14 | 238.59 | 0.7122 | -563.0 | -430.0 | |
| 0.00 | 1.61 | 0.00 | 1.01 | -8.29 | 325.24 | 34.52 | 246.54 | 0.6136 | -702.0 | -609.6 | |
| 0.00 | 5.29 | 0.00 | 3.32 | -8.63 | 325.16 | 34.45 | 245.98 | 0.6145 | -85.0 | -159.3 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -14.94 | 324.70 | 33.99 | 236.73 | 0.6483 | -623.0 | -521.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -10.24 | 322.65 | 31.94 | 241.79 | 0.5929 | -613.0 | -578.3 | |
| 0.00 | 2.33 | 0.00 | 1.42 | -13.31 | 319.82 | 29.11 | 234.87 | 0.5810 | -645.0 | -498.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
