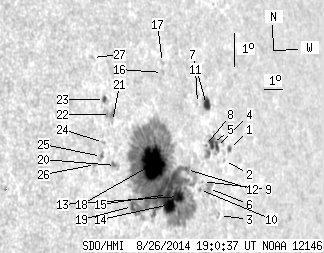

SDO HMI 2014-08-26 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.63 | 529.24 | 85.34 | 446.72 | 7.86 | 344.14 | 54.53 | 274.61 | 0.8115 | -413.1 | -324.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 2.96 | 1.00 | 2.75 | 8.17 | 347.89 | 58.28 | 275.22 | 0.8476 | -296.1 | -168.7 | |
| 0.00 | 0.81 | 0.00 | 0.74 | 7.87 | 347.53 | 57.92 | 274.84 | 0.8444 | -424.0 | -372.3 | |
| 0.00 | 0.90 | 0.00 | 0.81 | 6.25 | 346.92 | 57.31 | 272.87 | 0.8398 | -580.0 | -556.8 | |
| 2.60 | 22.24 | 2.37 | 20.15 | 8.34 | 347.17 | 57.57 | 275.37 | 0.8409 | -475.0 | -430.3 | |
| 4.39 | -4.00 | 3.97 | -4.00 | 8.45 | 346.97 | 57.36 | 275.49 | 0.8389 | -681.2 | 999999 | |
| 0.00 | 8.97 | 0.00 | 8.02 | 7.13 | 346.46 | 56.85 | 273.87 | 0.8348 | -308.0 | -262.1 | |
| 5.65 | 8.79 | 5.10 | 7.94 | 9.65 | 346.93 | 57.32 | 276.92 | 0.8380 | 689.9 | 437.7 | |
| 0.00 | 0.90 | 0.00 | 0.80 | 8.43 | 346.57 | 56.96 | 275.44 | 0.8351 | -539.0 | -631.1 | |
| 0.00 | 0.90 | 0.00 | 0.80 | 7.37 | 346.17 | 56.56 | 274.14 | 0.8319 | 92.0 | 83.3 | |
| 0.00 | 1.43 | 0.00 | 1.27 | 7.15 | 345.96 | 56.35 | 273.86 | 0.8300 | 452.0 | 362.4 | |
| 0.00 | 0.54 | 0.00 | 0.48 | 9.73 | 346.44 | 56.83 | 277.00 | 0.8333 | 479.0 | 430.5 | |
| 1.17 | 456.04 | 1.01 | 383.05 | 7.82 | 345.38 | 55.77 | 274.63 | 0.8239 | -595.1 | -348.5 | |
| 9.42 | -12.00 | 8.08 | -12.00 | 7.05 | 344.80 | 55.19 | 273.65 | 0.8187 | 399.9 | 999999 | |
| 15.16 | -12.00 | 12.85 | -12.00 | 6.86 | 344.28 | 54.67 | 273.38 | 0.8136 | 529.2 | 999999 | |
| 4.48 | -12.00 | 3.80 | -12.00 | 7.17 | 344.23 | 54.62 | 273.76 | 0.8129 | -514.3 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.69 | 10.85 | 344.80 | 55.20 | 278.30 | 0.8171 | -258.0 | -284.1 | |
| 0.00 | 1.88 | 0.00 | 1.61 | 11.15 | 344.89 | 55.28 | 278.67 | 0.8179 | -397.0 | -297.5 | |
| 52.55 | -12.00 | 43.83 | -12.00 | 8.17 | 343.68 | 54.07 | 274.96 | 0.8068 | -1083.9 | 999999 | |
| 2.78 | -12.00 | 2.26 | -12.00 | 6.99 | 342.38 | 52.77 | 273.39 | 0.7940 | 110.6 | 999999 | |
| 0.00 | 3.59 | 0.00 | 2.87 | 8.30 | 341.76 | 52.15 | 275.01 | 0.7866 | -663.0 | -465.4 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 9.63 | 341.88 | 52.27 | 276.71 | 0.7874 | -249.0 | -242.0 | |
| 0.00 | 6.91 | 0.00 | 5.52 | 9.85 | 341.83 | 52.22 | 276.99 | 0.7868 | 443.0 | 267.7 | |
| 1.35 | 3.05 | 1.07 | 2.43 | 10.33 | 341.64 | 52.03 | 277.60 | 0.7847 | 653.6 | 507.7 | |
| 0.00 | 1.43 | 0.00 | 1.13 | 9.05 | 341.30 | 51.70 | 275.94 | 0.7814 | -370.0 | -319.8 | |
| 0.00 | 3.41 | 0.00 | 2.68 | 8.64 | 341.12 | 51.52 | 275.41 | 0.7796 | -634.0 | -532.9 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 8.43 | 340.79 | 51.18 | 275.12 | 0.7761 | 413.0 | 358.5 | |
| 0.00 | 1.26 | 0.00 | 0.99 | 11.65 | 341.36 | 51.76 | 279.28 | 0.7817 | 365.0 | 335.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
