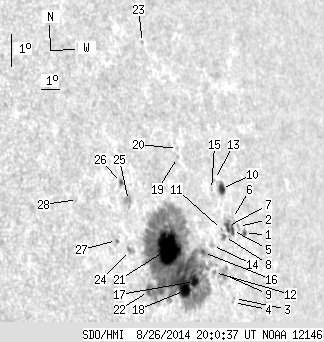

SDO HMI 2014-08-26 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.19 | 508.94 | 74.07 | 435.64 | 7.91 | 344.11 | 55.05 | 274.70 | 0.8167 | -444.4 | -321.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 2.87 | 1.10 | 2.71 | 8.17 | 347.93 | 58.87 | 275.26 | 0.8530 | -214.5 | -120.8 | |
| 0.00 | 1.88 | 0.00 | 1.76 | 8.42 | 347.63 | 58.57 | 275.53 | 0.8501 | -86.0 | -63.1 | |
| 0.00 | 0.99 | 0.00 | 0.91 | 6.29 | 346.94 | 57.89 | 272.96 | 0.8451 | -538.0 | -484.5 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 6.17 | 346.87 | 57.81 | 272.82 | 0.8445 | -683.0 | -597.8 | |
| 2.24 | 12.73 | 2.07 | 11.74 | 8.33 | 347.25 | 58.20 | 275.41 | 0.8468 | -474.4 | -428.8 | |
| 0.00 | 1.79 | 0.00 | 1.66 | 8.69 | 347.34 | 58.29 | 275.83 | 0.8474 | -120.0 | -128.9 | |
| 3.86 | -5.00 | 3.55 | -5.00 | 8.48 | 347.00 | 57.94 | 275.57 | 0.8443 | -675.2 | 999999 | |
| 1.08 | 2.87 | 0.98 | 2.62 | 8.20 | 346.76 | 57.70 | 275.22 | 0.8422 | -670.3 | -617.5 | |
| 0.00 | 11.12 | 0.00 | 10.09 | 7.07 | 346.46 | 57.41 | 273.85 | 0.8401 | -240.0 | -231.5 | |
| 4.48 | 8.34 | 4.11 | 7.64 | 9.65 | 346.95 | 57.90 | 276.95 | 0.8434 | 731.8 | 465.8 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 8.43 | 346.64 | 57.58 | 275.48 | 0.8410 | -557.0 | -584.6 | |
| 0.00 | 1.61 | 0.00 | 1.45 | 7.18 | 345.97 | 56.92 | 273.95 | 0.8354 | 426.0 | 275.5 | |
| 0.00 | 0.54 | 0.00 | 0.49 | 9.96 | 346.63 | 57.58 | 277.31 | 0.8403 | 435.0 | 349.3 | |
| 0.00 | 2.42 | 0.00 | 2.17 | 8.00 | 346.03 | 56.97 | 274.93 | 0.8355 | -551.0 | -484.8 | |
| 0.00 | 0.72 | 0.00 | 0.65 | 9.68 | 346.38 | 57.33 | 276.96 | 0.8381 | 305.0 | 312.9 | |
| 1.35 | 440.07 | 1.19 | 374.57 | 7.84 | 345.49 | 56.43 | 274.70 | 0.8304 | -478.5 | -347.4 | |
| 5.74 | -16.00 | 5.00 | -16.00 | 7.03 | 344.83 | 55.78 | 273.67 | 0.8245 | 493.4 | 999999 | |
| 12.82 | -16.00 | 11.01 | -16.00 | 6.81 | 344.25 | 55.20 | 273.36 | 0.8189 | 661.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.85 | 10.83 | 344.79 | 55.73 | 278.29 | 0.8224 | -373.0 | -359.5 | |
| 0.00 | 0.90 | 0.00 | 0.78 | 11.10 | 344.86 | 55.81 | 278.62 | 0.8231 | -324.0 | -211.6 | |
| 50.58 | -16.00 | 42.72 | -16.00 | 8.15 | 343.65 | 54.59 | 274.96 | 0.8121 | -1072.2 | 999999 | |
| 1.43 | -16.00 | 1.18 | -16.00 | 6.97 | 342.38 | 53.33 | 273.40 | 0.7998 | 215.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.92 | 14.45 | 344.05 | 55.00 | 282.73 | 0.8154 | -546.0 | -450.9 | |
| 0.00 | 4.84 | 0.00 | 3.91 | 8.29 | 341.70 | 52.65 | 275.01 | 0.7919 | -646.0 | -452.1 | |
| 0.00 | 7.71 | 0.00 | 6.25 | 9.79 | 341.92 | 52.87 | 276.93 | 0.7936 | 251.0 | 172.9 | |
| 1.08 | 2.69 | 0.87 | 2.17 | 10.37 | 341.70 | 52.64 | 277.65 | 0.7912 | 683.9 | 503.9 | |
| 0.36 | 1.43 | 0.29 | 1.14 | 8.65 | 341.07 | 52.01 | 275.45 | 0.7850 | -474.5 | -483.4 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 10.06 | 339.44 | 50.38 | 277.22 | 0.7668 | 430.0 | 449.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
