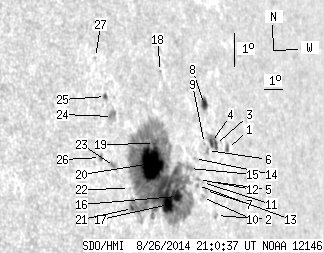

SDO HMI 2014-08-26 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.45 | 475.49 | 75.25 | 411.85 | 7.88 | 344.05 | 55.55 | 274.68 | 0.8216 | -393.9 | -344.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-26 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 2.96 | 1.29 | 2.84 | 8.17 | 347.98 | 59.47 | 275.30 | 0.8583 | -265.6 | -143.2 | |
| 0.00 | 2.06 | 0.00 | 1.93 | 6.24 | 346.91 | 58.41 | 272.95 | 0.8499 | -599.0 | -503.3 | |
| 2.42 | 11.30 | 2.28 | 10.59 | 8.37 | 347.30 | 58.80 | 275.48 | 0.8522 | -422.5 | -441.2 | |
| 3.05 | -3.00 | 2.85 | -3.00 | 8.45 | 347.08 | 58.58 | 275.57 | 0.8502 | -683.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 7.30 | 346.70 | 58.20 | 274.18 | 0.8474 | -495.0 | -404.7 | |
| 0.00 | 2.51 | 0.00 | 2.33 | 8.24 | 346.80 | 58.30 | 275.29 | 0.8477 | -683.0 | -625.1 | |
| 0.00 | 1.61 | 0.00 | 1.49 | 7.05 | 346.42 | 57.92 | 273.87 | 0.8449 | -125.0 | -136.1 | |
| 4.75 | 7.26 | 4.43 | 6.76 | 9.63 | 346.98 | 58.48 | 276.95 | 0.8487 | 658.3 | 400.4 | |
| 0.00 | 0.90 | 0.00 | 0.83 | 8.46 | 346.68 | 58.17 | 275.56 | 0.8464 | -613.0 | -576.9 | |
| 0.00 | 2.87 | 0.00 | 2.63 | 6.86 | 346.21 | 57.71 | 273.62 | 0.8431 | -83.0 | -83.9 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 7.31 | 346.30 | 57.80 | 274.16 | 0.8436 | -148.0 | -155.3 | |
| 0.00 | 1.70 | 0.00 | 1.55 | 7.42 | 346.09 | 57.59 | 274.28 | 0.8416 | 205.0 | 27.0 | |
| 0.00 | 1.70 | 0.00 | 1.55 | 7.25 | 346.00 | 57.50 | 274.07 | 0.8408 | 412.0 | 305.9 | |
| 0.00 | 1.08 | 0.00 | 0.98 | 8.08 | 346.00 | 57.50 | 275.05 | 0.8404 | -514.0 | -408.5 | |
| 0.00 | 3.77 | 0.00 | 3.39 | 7.81 | 345.66 | 57.16 | 274.71 | 0.8373 | -272.0 | -299.4 | |
| 7.26 | 415.86 | 6.41 | 358.58 | 7.04 | 344.78 | 56.28 | 273.72 | 0.8293 | 427.4 | -366.4 | |
| 14.08 | -16.00 | 12.26 | -16.00 | 6.85 | 344.30 | 55.80 | 273.45 | 0.8248 | 606.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.79 | 10.87 | 344.80 | 56.30 | 278.35 | 0.8279 | -512.0 | -448.3 | |
| 1.97 | -16.00 | 1.70 | -16.00 | 8.75 | 343.92 | 55.42 | 275.74 | 0.8200 | -442.1 | 999999 | |
| 48.07 | -16.00 | 41.15 | -16.00 | 8.17 | 343.63 | 55.13 | 275.01 | 0.8174 | -1013.6 | 999999 | |
| 1.79 | -16.00 | 1.49 | -16.00 | 6.92 | 342.39 | 53.89 | 273.38 | 0.8056 | 240.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.82 | 7.53 | 342.34 | 53.84 | 274.14 | 0.8047 | -432.0 | -384.5 | |
| 0.00 | 5.11 | 0.00 | 4.18 | 8.27 | 341.71 | 53.21 | 275.02 | 0.7977 | -661.0 | -431.2 | |
| 0.00 | 7.17 | 0.00 | 5.89 | 9.77 | 341.93 | 53.43 | 276.92 | 0.7995 | 208.0 | 135.9 | |
| 0.99 | 2.33 | 0.81 | 1.90 | 10.41 | 341.72 | 53.22 | 277.71 | 0.7972 | 676.0 | 531.9 | |
| 0.72 | 2.60 | 0.58 | 2.10 | 8.61 | 341.06 | 52.56 | 275.41 | 0.7908 | -516.5 | -400.7 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 11.62 | 341.52 | 53.02 | 279.24 | 0.7950 | 381.0 | 404.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
