SDO HMI 2014-08-26 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.97 | 0.00 | 7.56 | -10.30 | 328.09 | 40.69 | 246.95 | 0.6996 | -210.9 | -189.5 | |
|
previous
or next observation for the same group /

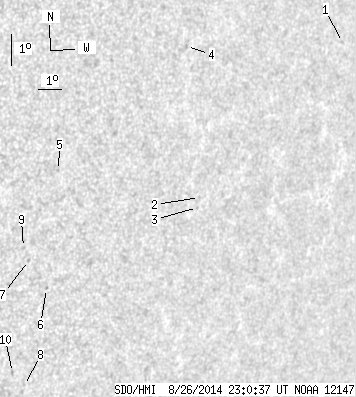

back to the solar disc SDO HMI 2014-08-26 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.92 | -5.62 | 337.22 | 49.83 | 256.93 | 0.7829 | -130.0 | -109.6 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -9.92 | 331.41 | 44.01 | 249.32 | 0.7339 | 558.0 | 482.7 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -10.23 | 331.38 | 43.98 | 248.90 | 0.7348 | 569.0 | 525.9 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -5.11 | 330.26 | 42.86 | 255.24 | 0.7030 | 595.0 | 532.9 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -8.57 | 325.46 | 38.06 | 248.19 | 0.6589 | -649.0 | -481.5 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -12.31 | 325.53 | 38.13 | 243.07 | 0.6789 | -592.0 | -504.6 | |
| 0.00 | 1.08 | 0.00 | 0.71 | -11.35 | 324.66 | 37.27 | 243.85 | 0.6637 | -648.0 | -559.2 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -15.41 | 325.25 | 37.85 | 238.84 | 0.6936 | -554.0 | -467.7 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -10.91 | 324.41 | 37.01 | 244.28 | 0.6583 | -551.0 | -557.9 | |
| 0.00 | 1.61 | 0.00 | 1.09 | -14.94 | 324.68 | 37.28 | 239.06 | 0.6846 | -707.0 | -575.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
