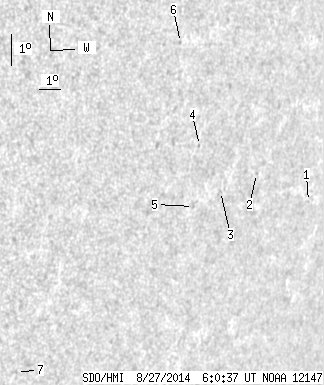

SDO HMI 2014-08-27 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.12 | 0.00 | 4.74 | -9.94 | 331.10 | 47.55 | 250.68 | 0.7723 | 348.7 | 278.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.24 | -10.66 | 337.15 | 53.59 | 252.09 | 0.8333 | 444.0 | 410.0 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -9.48 | 334.25 | 50.70 | 252.50 | 0.8025 | 296.0 | 274.6 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -9.89 | 332.61 | 49.06 | 251.42 | 0.7873 | 595.0 | 412.1 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -8.32 | 331.35 | 47.80 | 252.88 | 0.7692 | 479.0 | 343.7 | |
| 0.00 | 1.26 | 0.00 | 0.98 | -10.25 | 331.42 | 47.87 | 250.53 | 0.7763 | 536.0 | 465.3 | |
| 0.00 | 0.90 | 0.00 | 0.66 | -5.00 | 330.07 | 46.52 | 256.68 | 0.7452 | 630.0 | 539.9 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -14.94 | 324.70 | 41.15 | 241.46 | 0.7260 | -539.0 | -416.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
