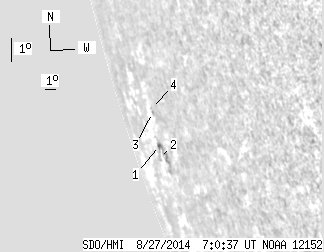

SDO HMI 2014-08-27 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 17.68 | 2.86 | 50.23 | -16.66 | 205.53 | -77.48 | 108.35 | 0.9861 | 122.8 | 126.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 14.00 | 2.86 | 39.39 | -16.68 | 205.60 | -77.41 | 108.38 | 0.9859 | 269.8 | 211.4 | |
| 0.00 | 2.24 | 0.00 | 6.95 | -17.20 | 204.86 | -78.14 | 108.76 | 0.9881 | -385.0 | -338.2 | |
| 0.00 | 1.17 | 0.00 | 3.16 | -15.57 | 206.04 | -76.97 | 107.35 | 0.9840 | 176.0 | 154.0 | |
| 0.00 | 0.27 | 0.00 | 0.73 | -15.44 | 206.05 | -76.95 | 107.22 | 0.9839 | 157.0 | 157.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
