SDO HMI 2014-08-27 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.30 | 352.31 | 77.73 | 359.25 | 7.72 | 344.00 | 61.54 | 274.91 | 0.8762 | -370.5 | -362.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

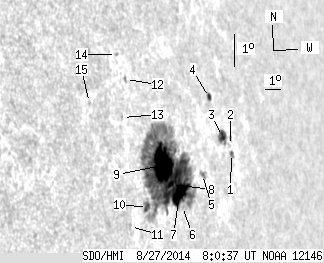

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 2.78 | 0.85 | 3.29 | 7.85 | 348.28 | 65.82 | 275.40 | 0.9095 | -369.4 | -270.7 | |
| 0.00 | 0.81 | 0.00 | 0.95 | 8.10 | 348.28 | 65.82 | 275.67 | 0.9094 | -185.0 | -232.4 | |
| 6.10 | 10.05 | 7.07 | 11.65 | 8.43 | 347.79 | 65.33 | 276.00 | 0.9056 | -591.5 | -388.8 | |
| 1.97 | 3.50 | 2.24 | 3.96 | 9.68 | 347.27 | 64.81 | 277.35 | 0.9012 | 453.7 | 344.1 | |
| 0.54 | 4.31 | 0.59 | 4.72 | 7.45 | 346.06 | 63.61 | 274.78 | 0.8932 | 350.0 | 217.5 | |
| 0.00 | 1.80 | 0.00 | 1.87 | 6.64 | 344.51 | 62.06 | 273.74 | 0.8813 | 118.0 | 189.6 | |
| 20.02 | 322.59 | 20.75 | 326.72 | 7.05 | 344.41 | 61.95 | 274.20 | 0.8802 | 595.6 | -396.1 | |
| 2.69 | -7.00 | 2.75 | -7.00 | 7.38 | 343.97 | 61.51 | 274.53 | 0.8763 | -718.0 | 999999 | |
| 40.39 | -7.00 | 40.69 | -7.00 | 8.01 | 343.55 | 61.09 | 275.21 | 0.8724 | -968.2 | 999999 | |
| 2.87 | -7.00 | 2.79 | -7.00 | 6.85 | 342.34 | 59.88 | 273.79 | 0.8627 | -134.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.61 | 6.39 | 341.22 | 58.76 | 273.15 | 0.8531 | 158.0 | 199.9 | |
| 0.00 | 2.06 | 0.00 | 1.98 | 10.81 | 342.06 | 59.60 | 278.37 | 0.8584 | 556.0 | 426.6 | |
| 0.00 | 0.63 | 0.00 | 0.59 | 9.69 | 341.53 | 59.07 | 277.05 | 0.8541 | -220.0 | -133.4 | |
| 0.00 | 1.08 | 0.00 | 1.02 | 11.61 | 341.78 | 59.32 | 279.30 | 0.8557 | 413.0 | 309.1 | |
| 0.00 | 0.99 | 0.00 | 0.89 | 10.34 | 339.77 | 57.32 | 277.74 | 0.8377 | 427.0 | 326.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
