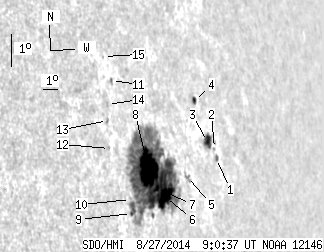

SDO HMI 2014-08-27 09:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.19 | 353.73 | 81.22 | 366.87 | 7.80 | 344.03 | 62.12 | 275.06 | 0.8810 | -389.7 | -342.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 09:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 2.51 | 1.09 | 3.04 | 7.81 | 348.32 | 66.42 | 275.41 | 0.9137 | -336.5 | -243.7 | |
| 0.00 | 0.81 | 0.00 | 0.97 | 8.13 | 348.27 | 66.36 | 275.75 | 0.9132 | -207.0 | -176.6 | |
| 7.00 | 10.41 | 8.29 | 12.33 | 8.39 | 347.82 | 65.92 | 276.00 | 0.9099 | -552.0 | -358.9 | |
| 1.88 | 3.23 | 2.18 | 3.74 | 9.71 | 347.32 | 65.41 | 277.42 | 0.9056 | 337.1 | 284.3 | |
| 0.00 | 4.13 | 0.00 | 4.60 | 7.51 | 346.09 | 64.18 | 274.90 | 0.8975 | 377.0 | 191.9 | |
| 19.12 | 324.37 | 20.19 | 334.20 | 7.05 | 344.45 | 62.55 | 274.24 | 0.8850 | 622.0 | -368.0 | |
| 2.06 | -6.00 | 2.14 | -6.00 | 7.38 | 343.94 | 62.03 | 274.58 | 0.8806 | -670.6 | 999999 | |
| 45.42 | -6.00 | 46.53 | -6.00 | 8.03 | 343.58 | 61.67 | 275.29 | 0.8773 | -907.5 | 999999 | |
| 0.81 | -6.00 | 0.80 | -6.00 | 6.80 | 342.21 | 60.30 | 273.77 | 0.8664 | 268.6 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.59 | 7.23 | 342.24 | 60.33 | 274.26 | 0.8664 | -376.0 | -398.4 | |
| 0.00 | 1.71 | 0.00 | 1.66 | 10.90 | 342.09 | 60.18 | 278.50 | 0.8635 | 518.0 | 435.8 | |
| 0.00 | 0.90 | 0.00 | 0.86 | 8.89 | 341.36 | 59.45 | 276.12 | 0.8578 | -276.0 | -263.6 | |
| 0.00 | 1.53 | 0.00 | 1.46 | 9.73 | 341.47 | 59.57 | 277.12 | 0.8584 | -184.0 | -111.0 | |
| 0.00 | 2.06 | 0.00 | 1.99 | 10.21 | 341.62 | 59.71 | 277.68 | 0.8595 | 205.0 | 269.7 | |
| 0.00 | 0.45 | 0.00 | 0.43 | 11.66 | 341.86 | 59.95 | 279.38 | 0.8613 | 267.0 | 220.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
