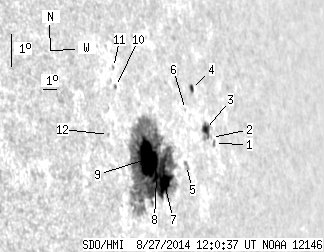

SDO HMI 2014-08-27 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.79 | 325.96 | 69.75 | 356.85 | 7.84 | 344.08 | 63.82 | 275.24 | 0.8944 | -386.9 | -305.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 1.97 | 0.93 | 2.56 | 7.90 | 348.53 | 68.27 | 275.66 | 0.9262 | -162.1 | -100.3 | |
| 0.00 | 0.27 | 0.00 | 0.35 | 8.11 | 348.36 | 68.09 | 275.87 | 0.9250 | -155.0 | -169.7 | |
| 4.84 | 11.75 | 6.16 | 14.93 | 8.40 | 347.97 | 67.70 | 276.15 | 0.9223 | -505.7 | -355.8 | |
| 1.88 | 3.41 | 2.33 | 4.21 | 9.73 | 347.35 | 67.09 | 277.55 | 0.9175 | 217.1 | 208.9 | |
| 0.00 | 3.77 | 0.00 | 4.47 | 7.50 | 346.17 | 65.91 | 275.02 | 0.9103 | 324.0 | 174.7 | |
| 0.00 | 0.27 | 0.00 | 0.32 | 9.16 | 346.66 | 66.40 | 276.88 | 0.9129 | -261.0 | -242.7 | |
| 13.28 | 300.83 | 14.84 | 326.25 | 7.14 | 344.46 | 64.20 | 274.48 | 0.8979 | 618.9 | -324.5 | |
| 1.88 | -7.00 | 2.07 | -7.00 | 7.41 | 343.97 | 63.71 | 274.74 | 0.8940 | -355.5 | 999999 | |
| 40.19 | -7.00 | 43.42 | -7.00 | 8.00 | 343.58 | 63.32 | 275.38 | 0.8906 | -821.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.29 | 10.37 | 342.11 | 61.85 | 277.97 | 0.8777 | 453.0 | 465.4 | |
| 0.00 | 1.44 | 0.00 | 1.48 | 10.95 | 342.18 | 61.92 | 278.63 | 0.8781 | 476.0 | 357.0 | |
| 0.00 | 0.99 | 0.00 | 0.99 | 8.99 | 341.22 | 60.96 | 276.34 | 0.8708 | -180.0 | -171.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
