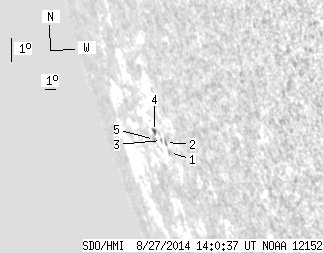

SDO HMI 2014-08-27 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 9.59 | 2.50 | 20.07 | -16.96 | 205.86 | -73.30 | 109.44 | 0.9726 | 121.6 | 110.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 3.61 | -17.26 | 206.56 | -72.60 | 109.89 | 0.9702 | 397.0 | 328.1 | |
| 0.00 | 2.33 | 0.00 | 4.69 | -16.95 | 206.44 | -72.72 | 109.55 | 0.9704 | 373.0 | 356.9 | |
| 0.00 | 0.99 | 0.00 | 2.05 | -16.94 | 206.01 | -73.15 | 109.45 | 0.9720 | 89.0 | 166.8 | |
| 1.17 | 2.33 | 2.50 | 4.99 | -16.72 | 205.45 | -73.71 | 109.11 | 0.9739 | 156.8 | 191.5 | |
| 0.00 | 2.15 | 0.00 | 4.73 | -17.01 | 205.13 | -74.03 | 109.35 | 0.9753 | -461.0 | -368.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
