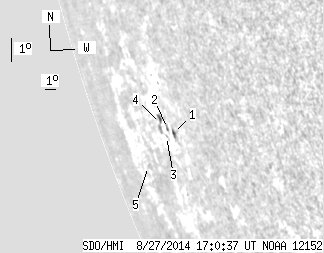

SDO HMI 2014-08-27 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.08 | 0.00 | 27.60 | -17.21 | 205.27 | -72.23 | 109.92 | 0.9683 | 63.6 | 35.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-27 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.23 | 0.00 | 5.82 | -17.05 | 206.58 | -70.92 | 110.04 | 0.9630 | 346.0 | 300.4 | |
| 0.00 | 1.97 | 0.00 | 3.67 | -16.95 | 206.08 | -71.42 | 109.83 | 0.9650 | 325.0 | 286.0 | |
| 0.00 | 0.90 | 0.00 | 1.71 | -17.26 | 205.69 | -71.82 | 110.05 | 0.9670 | -54.0 | 9.2 | |
| 0.00 | 6.37 | 0.00 | 12.34 | -16.87 | 205.44 | -72.06 | 109.61 | 0.9676 | -168.0 | -108.9 | |
| 0.00 | 1.61 | 0.00 | 4.06 | -18.68 | 202.00 | -75.50 | 110.73 | 0.9815 | -131.0 | -124.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
