SDO HMI 2014-08-27 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.97 | 237.11 | 71.51 | 310.45 | 7.75 | 343.88 | 68.59 | 275.51 | 0.9282 | -261.4 | -245.8 | |
|
previous
or next observation for the same group /

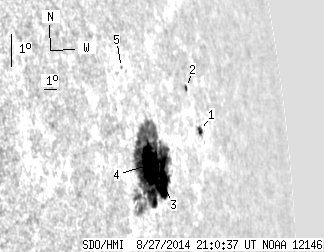

back to the solar disc SDO HMI 2014-08-27 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 4.03 | 3.51 | 6.58 | 8.36 | 348.40 | 73.11 | 276.55 | 0.9543 | -462.7 | -338.0 | |
| 0.00 | 2.15 | 0.00 | 3.36 | 9.77 | 347.67 | 72.38 | 277.97 | 0.9498 | 71.0 | 137.7 | |
| 12.82 | 230.03 | 17.34 | 299.41 | 7.17 | 344.38 | 69.09 | 274.93 | 0.9318 | 568.7 | -253.4 | |
| 39.00 | -3.00 | 50.66 | -3.00 | 7.88 | 343.52 | 68.23 | 275.63 | 0.9259 | -552.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.10 | 10.99 | 342.42 | 67.13 | 278.92 | 0.9173 | 452.0 | 448.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
