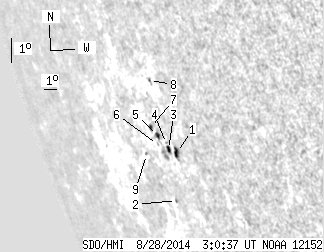

SDO HMI 2014-08-28 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.35 | 24.41 | 10.23 | 34.30 | -17.12 | 206.30 | -65.68 | 111.38 | 0.9368 | 292.6 | 82.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.69 | 5.20 | 3.65 | 7.06 | -17.24 | 207.11 | -64.87 | 111.72 | 0.9323 | 521.3 | 399.6 | |
| 0.00 | 1.26 | 0.00 | 1.84 | -18.96 | 205.86 | -66.13 | 113.16 | 0.9421 | 114.0 | 195.5 | |
| 1.79 | 8.34 | 2.49 | 11.71 | -17.21 | 206.52 | -65.46 | 111.53 | 0.9357 | 332.1 | -83.3 | |
| 0.00 | 1.08 | 0.00 | 1.49 | -17.02 | 206.50 | -65.49 | 111.32 | 0.9355 | 466.0 | 433.2 | |
| 1.79 | 3.23 | 2.54 | 4.57 | -16.82 | 205.93 | -66.05 | 110.98 | 0.9384 | 433.4 | 281.2 | |
| 0.00 | 0.72 | 0.00 | 1.03 | -17.14 | 205.71 | -66.28 | 111.25 | 0.9401 | -207.0 | -194.5 | |
| 1.08 | 2.69 | 1.55 | 3.87 | -16.61 | 205.52 | -66.46 | 110.65 | 0.9404 | 315.0 | 179.9 | |
| 0.00 | 0.90 | 0.00 | 1.22 | -14.98 | 206.50 | -65.49 | 109.21 | 0.9323 | 286.0 | 243.8 | |
| 0.00 | 0.99 | 0.00 | 1.51 | -17.62 | 204.45 | -67.53 | 111.42 | 0.9475 | -521.0 | -464.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
