SDO HMI 2014-08-28 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.45 | 175.13 | 67.11 | 282.54 | 7.80 | 343.78 | 72.89 | 275.94 | 0.9533 | -122.0 | -188.8 | |
|
previous
or next observation for the same group /

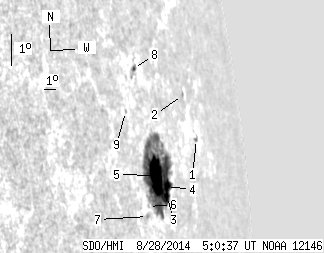

back to the solar disc SDO HMI 2014-08-28 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 1.88 | 0.98 | 4.13 | 8.30 | 348.66 | 77.77 | 276.91 | 0.9751 | -332.2 | -186.7 | |
| 0.00 | 1.79 | 0.00 | 3.65 | 9.77 | 347.72 | 76.83 | 278.33 | 0.9709 | 128.0 | 103.3 | |
| 2.96 | 162.66 | 4.96 | 261.52 | 7.06 | 344.35 | 73.46 | 275.22 | 0.9566 | 595.6 | -209.6 | |
| 6.46 | -3.00 | 10.92 | -3.00 | 7.37 | 344.37 | 73.48 | 275.54 | 0.9566 | 473.8 | 999999 | |
| 30.59 | -3.00 | 48.74 | -3.00 | 7.81 | 343.50 | 72.61 | 275.92 | 0.9519 | -339.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.76 | 6.99 | 342.36 | 71.47 | 274.96 | 0.9461 | -455.0 | -417.8 | |
| 0.00 | 1.88 | 0.00 | 2.82 | 6.71 | 342.16 | 71.27 | 274.64 | 0.9451 | -184.0 | -127.2 | |
| 0.99 | 4.67 | 1.51 | 7.12 | 11.18 | 342.94 | 72.05 | 279.42 | 0.9474 | 457.6 | 354.4 | |
| 0.00 | 1.08 | 0.00 | 1.54 | 10.01 | 341.50 | 70.61 | 278.09 | 0.9397 | -136.0 | -67.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
