SDO HMI 2014-08-28 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.81 | 168.22 | 69.85 | 279.45 | 7.85 | 343.79 | 73.45 | 276.04 | 0.9561 | -94.0 | -190.5 | |
|
previous
or next observation for the same group /

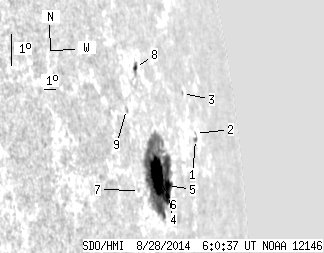

back to the solar disc SDO HMI 2014-08-28 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 2.15 | 1.83 | 4.91 | 8.30 | 348.56 | 78.22 | 276.96 | 0.9768 | -296.8 | -132.3 | |
| 0.00 | 0.27 | 0.00 | 0.62 | 8.47 | 348.68 | 78.34 | 277.15 | 0.9772 | -202.0 | -208.3 | |
| 0.00 | 1.35 | 0.00 | 2.86 | 9.82 | 347.77 | 77.43 | 278.44 | 0.9733 | 73.0 | 86.0 | |
| 3.05 | 156.74 | 5.27 | 259.17 | 7.09 | 344.36 | 74.02 | 275.30 | 0.9594 | 601.6 | -214.2 | |
| 6.37 | -4.00 | 11.08 | -4.00 | 7.39 | 344.39 | 74.05 | 275.62 | 0.9594 | 540.7 | 999999 | |
| 29.97 | -4.00 | 49.12 | -4.00 | 7.81 | 343.48 | 73.14 | 275.97 | 0.9546 | -335.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.53 | 7.57 | 341.55 | 71.21 | 275.55 | 0.9443 | -113.0 | -151.0 | |
| 1.61 | 5.20 | 2.55 | 8.20 | 11.19 | 343.02 | 72.68 | 279.48 | 0.9508 | 447.5 | 356.2 | |
| 0.00 | 2.15 | 0.00 | 3.16 | 10.08 | 341.46 | 71.12 | 278.19 | 0.9426 | 17.0 | -25.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
