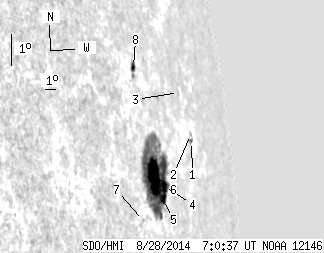

SDO HMI 2014-08-28 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.73 | 170.03 | 71.72 | 291.57 | 7.79 | 343.85 | 74.06 | 276.05 | 0.9591 | -34.2 | -181.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 1.61 | 1.49 | 3.82 | 8.26 | 348.62 | 78.83 | 276.97 | 0.9790 | -253.7 | -183.5 | |
| 0.00 | 1.26 | 0.00 | 3.00 | 8.47 | 348.62 | 78.83 | 277.19 | 0.9790 | -261.0 | -130.3 | |
| 0.00 | 1.17 | 0.00 | 2.59 | 9.86 | 347.87 | 78.07 | 278.54 | 0.9757 | 1.0 | 44.5 | |
| 6.46 | 158.09 | 11.60 | 269.38 | 7.38 | 344.42 | 74.63 | 275.67 | 0.9621 | 577.1 | -202.5 | |
| 4.76 | -4.00 | 8.39 | -4.00 | 7.02 | 344.13 | 74.34 | 275.26 | 0.9609 | 507.8 | 999999 | |
| 26.83 | -4.00 | 45.27 | -4.00 | 7.80 | 343.48 | 73.69 | 276.02 | 0.9574 | -330.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.68 | 6.64 | 341.83 | 72.04 | 274.65 | 0.9494 | 203.0 | 153.8 | |
| 3.05 | 6.82 | 4.97 | 11.10 | 11.23 | 343.15 | 73.36 | 279.57 | 0.9543 | 381.8 | 319.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
