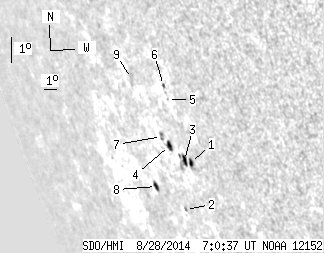

SDO HMI 2014-08-28 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.03 | 34.82 | 14.36 | 45.39 | -16.86 | 205.80 | -63.99 | 111.56 | 0.9263 | 244.7 | 91.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 07:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 4.67 | 2.67 | 5.77 | -17.24 | 207.22 | -62.57 | 112.36 | 0.9183 | 607.6 | 462.7 | |
| 0.00 | 1.35 | 0.00 | 1.80 | -18.96 | 205.73 | -64.06 | 113.71 | 0.9305 | 278.0 | 209.2 | |
| 2.87 | 9.24 | 3.61 | 11.69 | -17.22 | 206.81 | -62.98 | 112.22 | 0.9208 | 348.2 | 18.1 | |
| 3.14 | 4.84 | 4.06 | 6.26 | -16.83 | 205.98 | -63.81 | 111.58 | 0.9252 | 364.6 | 160.8 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -15.25 | 206.76 | -63.03 | 110.13 | 0.9175 | 309.0 | 243.7 | |
| 0.45 | 1.44 | 0.55 | 1.76 | -14.80 | 206.72 | -63.07 | 109.65 | 0.9170 | 333.8 | 270.4 | |
| 0.00 | 3.41 | 0.00 | 4.47 | -16.59 | 205.55 | -64.24 | 111.20 | 0.9274 | 472.0 | 290.7 | |
| 2.42 | 4.31 | 3.47 | 6.17 | -18.41 | 203.92 | -65.88 | 112.65 | 0.9399 | -309.5 | -251.8 | |
| 0.00 | 5.29 | 0.00 | 7.14 | -14.85 | 204.36 | -65.43 | 109.08 | 0.9318 | -36.0 | -71.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
