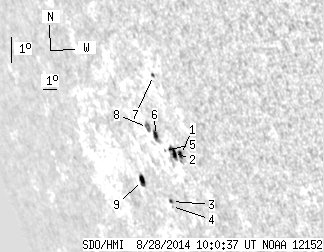

SDO HMI 2014-08-28 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.80 | 36.33 | 18.22 | 44.34 | -17.33 | 206.05 | -62.10 | 112.58 | 0.9152 | 206.0 | 199.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 15.07 | 2.40 | 17.74 | -17.23 | 207.41 | -60.74 | 112.88 | 0.9063 | 652.2 | 213.4 | |
| 4.57 | -1.00 | 5.40 | -1.00 | -17.22 | 206.95 | -61.20 | 112.73 | 0.9093 | 337.5 | 999999 | |
| 0.72 | 1.88 | 0.90 | 2.37 | -18.96 | 205.74 | -62.41 | 114.20 | 0.9206 | 230.8 | 167.2 | |
| 0.00 | 0.81 | 0.00 | 1.02 | -19.14 | 205.61 | -62.53 | 114.35 | 0.9217 | 209.0 | 277.7 | |
| 0.00 | 0.72 | 0.00 | 0.86 | -17.22 | 206.35 | -61.80 | 112.55 | 0.9133 | 162.0 | 143.2 | |
| 2.78 | 6.37 | 3.37 | 7.72 | -16.77 | 206.00 | -62.15 | 111.98 | 0.9147 | 394.6 | 236.9 | |
| 0.45 | 1.52 | 0.52 | 1.76 | -14.72 | 206.95 | -61.20 | 110.08 | 0.9042 | 390.2 | 355.2 | |
| 0.00 | 4.04 | 0.00 | 4.96 | -16.56 | 205.57 | -62.58 | 111.63 | 0.9170 | 444.0 | 286.2 | |
| 4.22 | 5.92 | 5.63 | 7.91 | -18.47 | 203.99 | -64.16 | 113.18 | 0.9302 | -279.2 | -203.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
