SDO HMI 2014-08-28 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.58 | 136.70 | 59.33 | 266.85 | 7.89 | 343.61 | 76.01 | 276.33 | 0.9681 | -25.0 | -98.8 | |
|
previous
or next observation for the same group /

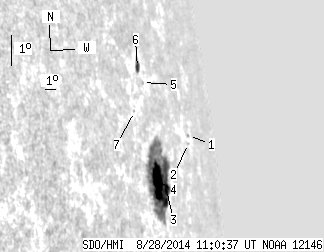

back to the solar disc SDO HMI 2014-08-28 11:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 2.88 | 8.52 | 348.79 | 81.19 | 277.48 | 0.9864 | -6.0 | -51.3 | |
| 0.00 | 0.54 | 0.00 | 1.56 | 8.30 | 348.57 | 80.97 | 277.24 | 0.9859 | -229.0 | -212.5 | |
| 5.02 | 127.36 | 10.36 | 247.90 | 7.40 | 344.34 | 76.74 | 275.90 | 0.9715 | 667.8 | -112.8 | |
| 23.14 | -3.00 | 44.46 | -3.00 | 7.76 | 343.36 | 75.76 | 276.17 | 0.9672 | -221.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 2.22 | 10.81 | 343.46 | 75.86 | 279.33 | 0.9664 | 247.0 | 249.6 | |
| 2.42 | 6.01 | 4.51 | 11.20 | 11.30 | 343.21 | 75.61 | 279.82 | 0.9651 | 327.1 | 193.0 | |
| 0.00 | 0.63 | 0.00 | 1.09 | 10.09 | 341.97 | 74.37 | 278.46 | 0.9598 | -152.0 | -85.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
