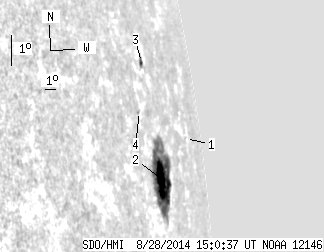

SDO HMI 2014-08-28 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.63 | 112.05 | 43.87 | 254.06 | 7.87 | 343.44 | 78.04 | 276.50 | 0.9764 | -85.6 | -55.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.99 | 8.36 | 348.65 | 83.25 | 277.53 | 0.9917 | -95.0 | -89.0 | |
| 18.82 | 107.03 | 42.12 | 242.94 | 7.73 | 343.43 | 78.03 | 276.36 | 0.9764 | -98.6 | -64.0 | |
| 0.81 | 3.85 | 1.75 | 8.35 | 11.36 | 343.35 | 77.95 | 280.06 | 0.9748 | 210.4 | 211.4 | |
| 0.00 | 0.90 | 0.00 | 1.78 | 10.01 | 341.91 | 76.52 | 278.56 | 0.9695 | -47.0 | -49.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
