SDO HMI 2014-08-28 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.99 | 43.21 | 21.06 | 48.26 | -17.34 | 205.92 | -59.47 | 113.40 | 0.8973 | 157.4 | 106.6 | |
|
previous
or next observation for the same group /

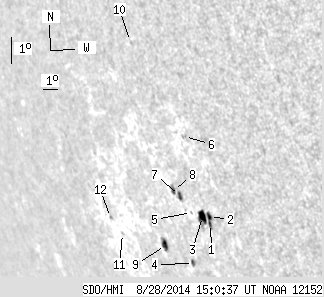

back to the solar disc SDO HMI 2014-08-28 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 19.18 | 1.43 | 20.49 | -17.46 | 207.59 | -57.81 | 114.07 | 0.8861 | 522.5 | 227.2 | |
| 2.24 | -1.00 | 2.37 | -1.00 | -17.22 | 207.65 | -57.75 | 113.84 | 0.8850 | 549.0 | 999999 | |
| 6.72 | -1.00 | 7.20 | -1.00 | -17.27 | 207.20 | -58.19 | 113.74 | 0.8884 | 345.1 | 999999 | |
| 0.99 | 2.51 | 1.13 | 2.87 | -18.98 | 205.70 | -59.70 | 115.07 | 0.9031 | 340.4 | 223.5 | |
| 0.00 | 0.90 | 0.00 | 0.98 | -17.21 | 206.56 | -58.84 | 113.47 | 0.8929 | 146.0 | 132.1 | |
| 0.00 | 1.70 | 0.00 | 1.77 | -14.66 | 207.34 | -58.06 | 110.96 | 0.8811 | 594.0 | 487.8 | |
| 1.97 | 3.94 | 2.17 | 4.35 | -16.71 | 206.07 | -59.32 | 112.77 | 0.8952 | 443.5 | 306.6 | |
| 1.52 | 4.21 | 1.70 | 4.69 | -16.58 | 205.76 | -59.63 | 112.54 | 0.8971 | 329.8 | 270.8 | |
| 4.21 | 7.62 | 5.06 | 9.15 | -18.57 | 204.12 | -61.28 | 114.13 | 0.9126 | -423.6 | -268.9 | |
| 0.00 | 1.08 | 0.00 | 1.17 | -11.87 | 205.16 | -60.24 | 107.28 | 0.8916 | -162.0 | -149.2 | |
| 0.00 | 0.99 | 0.00 | 1.32 | -18.51 | 201.12 | -64.27 | 113.19 | 0.9310 | -429.0 | -357.6 | |
| 0.00 | 1.08 | 0.00 | 1.47 | -18.05 | 200.54 | -64.85 | 112.56 | 0.9335 | -345.0 | -251.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
