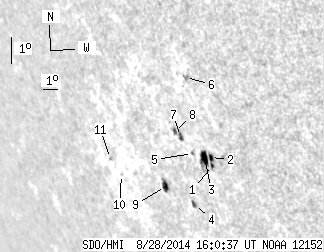

SDO HMI 2014-08-28 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.29 | 41.94 | 18.87 | 45.73 | -17.42 | 206.15 | -58.69 | 113.75 | 0.8920 | 153.6 | 152.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 20.70 | 1.03 | 21.73 | -17.49 | 207.62 | -57.22 | 114.31 | 0.8818 | 462.6 | 211.9 | |
| 2.06 | -1.00 | 2.14 | -1.00 | -17.23 | 207.63 | -57.21 | 114.03 | 0.8810 | 589.4 | 999999 | |
| 6.36 | -1.00 | 6.69 | -1.00 | -17.27 | 207.26 | -57.59 | 113.94 | 0.8840 | 380.1 | 999999 | |
| 1.25 | 2.87 | 1.41 | 3.22 | -18.98 | 205.72 | -59.12 | 115.26 | 0.8992 | 331.0 | 217.4 | |
| 0.00 | 1.25 | 0.00 | 1.35 | -17.21 | 206.56 | -58.28 | 113.65 | 0.8889 | 216.0 | 159.6 | |
| 0.00 | 2.60 | 0.00 | 2.66 | -14.66 | 207.32 | -57.52 | 111.14 | 0.8769 | 608.0 | 488.9 | |
| 1.34 | 3.50 | 1.46 | 3.78 | -16.71 | 206.08 | -58.76 | 112.95 | 0.8912 | 477.3 | 368.7 | |
| 1.08 | 2.60 | 1.17 | 2.84 | -16.58 | 205.78 | -59.06 | 112.72 | 0.8931 | 413.1 | 302.6 | |
| 4.21 | 6.90 | 4.97 | 8.13 | -18.57 | 204.10 | -60.74 | 114.30 | 0.9091 | -489.2 | -342.5 | |
| 0.00 | 0.27 | 0.00 | 0.35 | -18.52 | 201.09 | -63.75 | 113.34 | 0.9279 | -459.0 | -465.3 | |
| 0.00 | 1.25 | 0.00 | 1.67 | -18.05 | 200.60 | -64.24 | 112.72 | 0.9299 | -347.0 | -262.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
