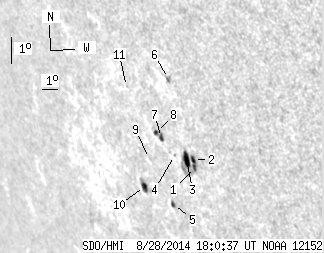

SDO HMI 2014-08-28 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.43 | 51.72 | 20.40 | 54.06 | -17.35 | 206.44 | -57.30 | 114.14 | 0.8818 | 215.9 | 97.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 27.51 | 1.36 | 27.98 | -17.52 | 207.67 | -56.06 | 114.75 | 0.8732 | 592.0 | 115.9 | |
| 1.97 | -1.00 | 1.98 | -1.00 | -17.25 | 207.74 | -55.99 | 114.48 | 0.8719 | 638.0 | 999999 | |
| 7.44 | -1.00 | 7.56 | -1.00 | -17.30 | 207.32 | -56.42 | 114.38 | 0.8753 | 414.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.02 | -17.24 | 206.65 | -57.09 | 114.09 | 0.8802 | 321.0 | 279.5 | |
| 1.43 | 2.69 | 1.56 | 2.92 | -18.96 | 205.69 | -58.04 | 115.60 | 0.8916 | 339.0 | 248.4 | |
| 0.00 | 2.87 | 0.00 | 2.84 | -14.66 | 207.44 | -56.29 | 111.54 | 0.8672 | 592.0 | 522.2 | |
| 1.88 | 7.17 | 1.97 | 7.51 | -16.71 | 206.14 | -57.60 | 113.34 | 0.8826 | 515.7 | 374.9 | |
| 1.52 | -7.00 | 1.60 | -7.00 | -16.57 | 205.91 | -57.83 | 113.11 | 0.8840 | 402.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.78 | -17.52 | 205.00 | -58.73 | 113.83 | 0.8930 | -291.0 | -282.4 | |
| 3.85 | 8.69 | 4.37 | 9.85 | -18.53 | 204.13 | -59.61 | 114.63 | 0.9015 | -552.9 | -320.4 | |
| 0.00 | 1.08 | 0.00 | 1.16 | -15.21 | 204.73 | -59.01 | 111.26 | 0.8895 | -327.0 | -262.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
