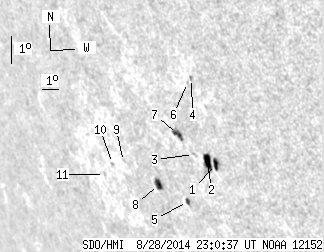

SDO HMI 2014-08-28 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.56 | 44.82 | 22.90 | 43.94 | -17.53 | 206.01 | -54.97 | 115.19 | 0.8642 | 226.0 | 108.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-28 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.85 | 6.00 | 3.60 | 5.60 | -17.47 | 207.85 | -53.12 | 115.81 | 0.8496 | 708.8 | 502.0 | |
| 8.51 | 13.89 | 8.02 | 13.11 | -17.41 | 207.45 | -53.53 | 115.58 | 0.8528 | 483.3 | 102.4 | |
| 0.00 | 0.45 | 0.00 | 0.43 | -17.25 | 206.76 | -54.22 | 115.15 | 0.8579 | 316.0 | 250.6 | |
| 0.00 | 1.79 | 0.00 | 1.64 | -14.69 | 207.67 | -53.31 | 112.63 | 0.8425 | 547.0 | 541.0 | |
| 1.70 | 3.14 | 1.71 | 3.15 | -18.92 | 205.64 | -55.33 | 116.54 | 0.8716 | 394.6 | 207.9 | |
| 0.00 | 0.63 | 0.00 | 0.58 | -14.84 | 207.40 | -53.58 | 112.71 | 0.8452 | 453.0 | 396.9 | |
| 4.39 | 7.80 | 4.25 | 7.54 | -16.66 | 206.14 | -54.84 | 114.27 | 0.8611 | 565.0 | 414.6 | |
| 5.11 | 7.53 | 5.32 | 7.84 | -18.51 | 204.18 | -56.80 | 115.57 | 0.8815 | -577.0 | -326.0 | |
| 0.00 | 0.90 | 0.00 | 0.98 | -17.95 | 202.37 | -58.60 | 114.35 | 0.8932 | -567.0 | -488.7 | |
| 0.00 | 1.17 | 0.00 | 1.31 | -18.10 | 201.60 | -59.37 | 114.25 | 0.8989 | -399.0 | -390.5 | |
| 0.00 | 1.52 | 0.00 | 1.76 | -18.55 | 200.83 | -60.14 | 114.48 | 0.9052 | -252.0 | -187.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
