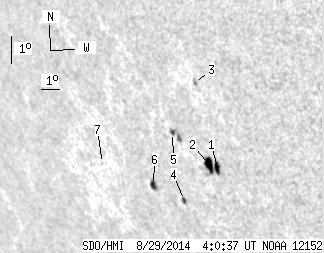

SDO HMI 2014-08-29 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.89 | 40.26 | 18.78 | 36.15 | -17.45 | 206.72 | -51.50 | 116.46 | 0.8358 | 292.6 | 257.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-29 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.93 | 22.15 | 4.31 | 19.45 | -17.54 | 207.99 | -50.24 | 117.09 | 0.8254 | 681.2 | 184.5 | |
| 9.15 | -1.00 | 8.05 | -1.00 | -17.48 | 207.61 | -50.61 | 116.85 | 0.8285 | 464.9 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.69 | -14.78 | 207.82 | -50.40 | 113.88 | 0.8169 | 711.0 | 567.7 | |
| 1.52 | 2.78 | 1.42 | 2.59 | -18.86 | 205.75 | -52.48 | 117.60 | 0.8490 | 467.5 | 343.3 | |
| 1.61 | 7.53 | 1.46 | 6.78 | -16.58 | 206.07 | -52.15 | 115.21 | 0.8386 | 510.7 | 513.2 | |
| 3.68 | 5.56 | 3.54 | 5.36 | -18.52 | 204.24 | -53.99 | 116.62 | 0.8600 | -647.9 | -442.3 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -18.07 | 201.57 | -56.65 | 115.15 | 0.8792 | -426.0 | -433.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
