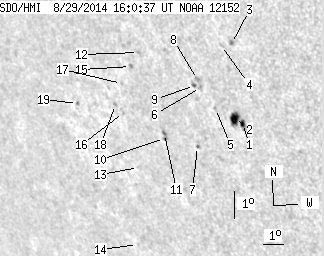

SDO HMI 2014-08-29 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.12 | 40.85 | 8.59 | 32.35 | -17.29 | 206.02 | -45.61 | 119.01 | 0.7818 | 161.3 | 83.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-29 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.33 | 14.78 | 1.78 | 11.34 | -17.72 | 208.14 | -43.50 | 120.61 | 0.7641 | 721.6 | 529.0 | |
| 7.26 | -1.00 | 5.57 | -1.00 | -17.59 | 207.83 | -43.81 | 120.28 | 0.7664 | 685.2 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.67 | -15.08 | 208.40 | -43.23 | 117.59 | 0.7485 | 695.0 | 596.8 | |
| 0.00 | 1.70 | 0.00 | 1.28 | -15.19 | 207.94 | -43.69 | 117.47 | 0.7537 | 500.0 | 417.4 | |
| 0.00 | 1.70 | 0.00 | 1.32 | -17.33 | 207.06 | -44.57 | 119.56 | 0.7725 | 551.0 | 415.9 | |
| 0.00 | 2.06 | 0.00 | 1.61 | -16.68 | 206.59 | -45.04 | 118.55 | 0.7740 | 745.0 | 524.7 | |
| 0.00 | 1.25 | 0.00 | 1.01 | -18.70 | 205.79 | -45.84 | 120.49 | 0.7908 | 451.0 | 452.4 | |
| 0.00 | 2.60 | 0.00 | 2.02 | -16.42 | 206.53 | -45.10 | 118.22 | 0.7734 | 704.0 | 564.2 | |
| 0.54 | 2.06 | 0.42 | 1.61 | -16.64 | 206.33 | -45.30 | 118.37 | 0.7763 | 492.3 | 387.4 | |
| 0.36 | 3.94 | 0.30 | 3.26 | -18.58 | 204.29 | -47.34 | 119.59 | 0.8038 | -599.0 | -554.5 | |
| 0.63 | -10.00 | 0.52 | -10.00 | -18.40 | 204.36 | -47.28 | 119.43 | 0.8025 | -618.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.87 | -15.78 | 204.03 | -47.61 | 116.24 | 0.7946 | -542.0 | -504.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -19.71 | 202.59 | -49.04 | 120.05 | 0.8235 | -544.0 | -562.7 | |
| 0.00 | 0.45 | 0.00 | 0.41 | -22.44 | 201.29 | -50.35 | 122.43 | 0.8452 | -391.0 | -324.2 | |
| 0.00 | 1.97 | 0.00 | 1.62 | -16.28 | 203.49 | -48.15 | 116.58 | 0.8017 | -693.0 | -613.7 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -17.88 | 202.58 | -49.05 | 118.00 | 0.8162 | -413.0 | -463.7 | |
| 0.00 | 0.99 | 0.00 | 0.83 | -16.90 | 202.84 | -48.79 | 117.00 | 0.8101 | -541.0 | -447.5 | |
| 0.00 | 1.52 | 0.00 | 1.30 | -17.65 | 202.28 | -49.35 | 117.60 | 0.8180 | -671.0 | -549.5 | |
| 0.00 | 1.43 | 0.00 | 1.28 | -17.81 | 200.32 | -51.32 | 116.92 | 0.8357 | -585.0 | -505.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
