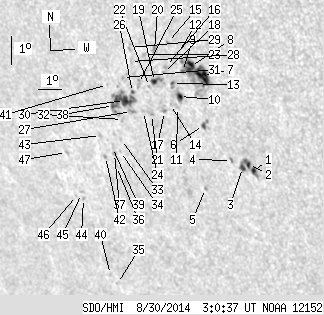

SDO HMI 2014-08-30 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.14 | 177.70 | 37.78 | 127.43 | -15.87 | 205.10 | -40.46 | 120.18 | 0.7239 | -152.0 | -221.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-30 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 16.13 | 1.43 | 11.25 | -17.88 | 208.17 | -37.39 | 124.62 | 0.7046 | 820.9 | 587.1 | |
| 1.79 | -1.00 | 1.25 | -1.00 | -17.70 | 208.02 | -37.54 | 124.29 | 0.7050 | 871.8 | 999999 | |
| 2.51 | -1.00 | 1.76 | -1.00 | -17.82 | 207.75 | -37.82 | 124.25 | 0.7085 | 627.8 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.38 | -17.62 | 207.35 | -38.21 | 123.74 | 0.7112 | 601.0 | 377.3 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -18.66 | 206.01 | -39.56 | 124.10 | 0.7310 | 632.0 | 536.8 | |
| 1.43 | 4.30 | 1.01 | 3.03 | -16.53 | 206.48 | -39.08 | 121.83 | 0.7136 | 610.1 | 567.6 | |
| 15.32 | 55.92 | 10.61 | 38.86 | -14.87 | 206.83 | -38.74 | 119.97 | 0.7004 | 646.2 | -176.7 | |
| 6.18 | -7.00 | 4.30 | -7.00 | -14.62 | 206.40 | -39.17 | 119.37 | 0.7036 | 130.9 | 999999 | |
| 0.63 | -7.00 | 0.44 | -7.00 | -14.81 | 206.03 | -39.53 | 119.39 | 0.7086 | -726.6 | 999999 | |
| 2.78 | 6.36 | 1.97 | 4.50 | -15.65 | 205.71 | -39.85 | 120.25 | 0.7166 | 172.8 | -72.3 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -16.02 | 205.54 | -40.02 | 120.61 | 0.7205 | 169.0 | 93.2 | |
| 0.00 | 1.79 | 0.00 | 1.25 | -14.30 | 205.90 | -39.67 | 118.66 | 0.7073 | 104.0 | 93.0 | |
| 0.72 | 3.05 | 0.51 | 2.16 | -15.24 | 205.52 | -40.04 | 119.62 | 0.7164 | -685.6 | -455.7 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -15.95 | 205.27 | -40.29 | 120.35 | 0.7229 | -485.0 | -398.7 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -13.90 | 205.61 | -39.95 | 117.99 | 0.7082 | 501.0 | 355.7 | |
| 0.00 | 1.88 | 0.00 | 1.33 | -14.70 | 205.36 | -40.21 | 118.85 | 0.7152 | -291.0 | -279.3 | |
| 0.00 | 1.88 | 0.00 | 1.35 | -16.20 | 204.96 | -40.61 | 120.48 | 0.7275 | 199.0 | 20.7 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -14.91 | 205.23 | -40.34 | 119.03 | 0.7177 | -808.0 | -692.9 | |
| 2.51 | 5.91 | 1.80 | 4.23 | -15.24 | 204.78 | -40.79 | 119.18 | 0.7242 | -869.2 | -744.5 | |
| 0.00 | 3.58 | 0.00 | 2.54 | -14.21 | 205.01 | -40.55 | 118.03 | 0.7163 | -124.0 | 194.2 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -16.35 | 204.38 | -41.19 | 120.31 | 0.7342 | 22.0 | 29.1 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -15.42 | 204.53 | -41.04 | 119.26 | 0.7278 | -556.0 | -505.6 | |
| 0.00 | 2.06 | 0.00 | 1.47 | -14.38 | 204.56 | -41.00 | 117.98 | 0.7219 | -329.0 | -260.3 | |
| 0.00 | 1.34 | 0.00 | 0.98 | -16.28 | 204.06 | -41.51 | 120.04 | 0.7371 | -352.0 | -334.1 | |
| 0.00 | 3.85 | 0.00 | 2.79 | -15.36 | 204.08 | -41.48 | 118.93 | 0.7321 | -307.0 | -468.5 | |
| 0.81 | 33.79 | 0.59 | 24.97 | -15.68 | 203.75 | -41.82 | 119.13 | 0.7372 | -794.0 | -577.9 | |
| 0.00 | 3.32 | 0.00 | 2.44 | -16.32 | 203.54 | -42.03 | 119.79 | 0.7426 | -772.0 | -686.3 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -14.66 | 203.91 | -41.65 | 117.96 | 0.7302 | 413.0 | 119.5 | |
| 0.00 | 2.60 | 0.00 | 1.87 | -14.20 | 203.98 | -41.59 | 117.43 | 0.7273 | -676.0 | -554.4 | |
| 13.98 | -26.00 | 10.31 | -26.00 | -15.98 | 203.33 | -42.24 | 119.26 | 0.7430 | -809.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.92 | -15.22 | 203.44 | -42.13 | 118.39 | 0.7380 | -314.0 | -300.2 | |
| 0.00 | 1.79 | 0.00 | 1.33 | -16.63 | 203.07 | -42.50 | 119.89 | 0.7489 | -696.0 | -606.2 | |
| 0.00 | 1.17 | 0.00 | 0.88 | -17.31 | 202.83 | -42.73 | 120.57 | 0.7547 | -505.0 | -455.9 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -17.72 | 202.67 | -42.90 | 120.96 | 0.7584 | -634.0 | -553.7 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -22.32 | 200.90 | -44.66 | 125.21 | 0.7981 | -356.0 | -336.5 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -18.24 | 202.33 | -43.23 | 121.39 | 0.7644 | -452.0 | -417.6 | |
| 0.00 | 2.51 | 0.00 | 1.91 | -17.81 | 202.38 | -43.19 | 120.91 | 0.7617 | -813.0 | -686.8 | |
| 2.42 | -26.00 | 1.80 | -26.00 | -16.19 | 202.80 | -42.76 | 119.21 | 0.7494 | -563.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -17.61 | 202.35 | -43.21 | 120.66 | 0.7610 | -481.0 | -465.6 | |
| 0.00 | 1.17 | 0.00 | 0.95 | -22.03 | 200.70 | -44.86 | 124.78 | 0.7984 | -467.0 | -381.4 | |
| 0.00 | 0.72 | 0.00 | 0.53 | -15.51 | 202.72 | -42.84 | 118.35 | 0.7468 | -449.0 | -463.1 | |
| 0.00 | 1.25 | 0.00 | 0.96 | -17.95 | 201.94 | -43.63 | 120.82 | 0.7666 | -627.0 | -578.3 | |
| 0.00 | 1.61 | 0.00 | 1.23 | -17.25 | 201.93 | -43.63 | 120.00 | 0.7632 | -346.0 | -341.9 | |
| 0.00 | 1.25 | 0.00 | 1.00 | -19.48 | 200.43 | -45.13 | 121.78 | 0.7882 | -527.0 | -421.2 | |
| 0.00 | 0.45 | 0.00 | 0.36 | -19.32 | 200.40 | -45.16 | 121.57 | 0.7877 | -377.0 | -433.4 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -19.41 | 200.14 | -45.42 | 121.54 | 0.7905 | -296.0 | -290.7 | |
| 0.00 | 1.79 | 0.00 | 1.42 | -17.97 | 200.18 | -45.38 | 119.91 | 0.7834 | -617.0 | -401.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
