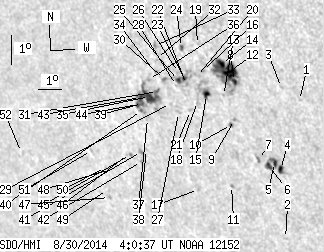

SDO HMI 2014-08-30 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.22 | 192.09 | 38.97 | 136.39 | -15.90 | 205.17 | -39.84 | 120.60 | 0.7177 | -85.3 | -242.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-30 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.48 | -15.54 | 209.45 | -35.56 | 122.98 | 0.6703 | 569.0 | 487.9 | |
| 0.00 | 1.34 | 0.00 | 0.95 | -20.26 | 207.76 | -37.26 | 127.55 | 0.7187 | 514.0 | 463.4 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -15.16 | 208.83 | -36.19 | 122.05 | 0.6746 | 612.0 | 496.2 | |
| 3.14 | 17.39 | 2.17 | 12.03 | -17.91 | 208.18 | -36.84 | 125.04 | 0.6991 | 774.5 | 553.9 | |
| 2.33 | -4.00 | 1.61 | -4.00 | -17.69 | 207.99 | -37.02 | 124.65 | 0.6996 | 860.8 | 999999 | |
| 2.78 | -4.00 | 1.93 | -4.00 | -17.84 | 207.75 | -37.26 | 124.66 | 0.7030 | 578.8 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.94 | -17.64 | 207.36 | -37.65 | 124.15 | 0.7057 | 647.0 | 346.5 | |
| 2.06 | 55.57 | 1.41 | 38.23 | -15.11 | 206.99 | -38.03 | 120.73 | 0.6942 | 317.3 | -150.2 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -16.38 | 206.70 | -38.31 | 122.14 | 0.7048 | 751.0 | 643.8 | |
| 0.72 | 1.79 | 0.50 | 1.25 | -16.55 | 206.54 | -38.48 | 122.25 | 0.7075 | 627.9 | 533.9 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -18.62 | 206.01 | -39.01 | 124.41 | 0.7253 | 602.0 | 481.4 | |
| 13.00 | -8.00 | 8.91 | -8.00 | -14.80 | 206.85 | -38.16 | 120.24 | 0.6938 | 778.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -15.61 | 206.43 | -38.58 | 121.01 | 0.7030 | 376.0 | 282.7 | |
| 4.48 | -8.00 | 3.08 | -8.00 | -14.56 | 206.58 | -38.43 | 119.76 | 0.6954 | 649.4 | 999999 | |
| 3.14 | 15.68 | 2.20 | 11.01 | -15.64 | 205.74 | -39.28 | 120.59 | 0.7105 | 72.8 | -356.0 | |
| 0.00 | 1.25 | 0.00 | 0.87 | -14.86 | 205.75 | -39.26 | 119.62 | 0.7059 | -241.0 | -221.6 | |
| 0.00 | 1.34 | 0.00 | 0.99 | -18.87 | 204.56 | -40.46 | 123.78 | 0.7410 | -139.0 | -99.8 | |
| 0.00 | 1.88 | 0.00 | 1.33 | -15.90 | 205.31 | -39.71 | 120.65 | 0.7165 | -400.0 | -226.6 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -14.02 | 205.73 | -39.28 | 118.53 | 0.7015 | 506.0 | 437.0 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -15.07 | 205.46 | -39.55 | 119.71 | 0.7103 | -664.0 | -535.9 | |
| 0.00 | 1.52 | 0.00 | 1.09 | -16.23 | 204.94 | -40.07 | 120.83 | 0.7222 | 236.0 | 57.9 | |
| 0.00 | 1.34 | 0.00 | 0.95 | -15.37 | 204.98 | -40.03 | 119.80 | 0.7170 | -717.0 | -563.1 | |
| 1.52 | 13.00 | 1.08 | 9.20 | -15.18 | 204.94 | -40.07 | 119.53 | 0.7163 | -966.3 | -531.1 | |
| 0.99 | 2.42 | 0.69 | 1.70 | -14.17 | 205.05 | -39.97 | 118.31 | 0.7098 | 483.6 | 355.8 | |
| 1.97 | -23.00 | 1.40 | -23.00 | -15.27 | 204.68 | -40.34 | 119.48 | 0.7196 | -809.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -15.00 | 204.74 | -40.28 | 119.19 | 0.7176 | -421.0 | -439.4 | |
| 0.00 | 2.06 | 0.00 | 1.48 | -16.34 | 204.42 | -40.60 | 120.64 | 0.7282 | 28.0 | -44.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -15.44 | 204.55 | -40.46 | 119.62 | 0.7219 | -518.0 | -562.3 | |
| 0.00 | 1.08 | 0.00 | 0.78 | -16.06 | 204.15 | -40.86 | 120.15 | 0.7294 | -369.0 | -381.8 | |
| 0.00 | 2.24 | 0.00 | 1.61 | -15.29 | 204.09 | -40.92 | 119.16 | 0.7259 | -737.0 | -592.7 | |
| 0.81 | 41.68 | 0.58 | 30.52 | -15.71 | 203.69 | -41.32 | 119.45 | 0.7322 | -873.2 | -596.4 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -14.62 | 203.92 | -41.10 | 118.22 | 0.7242 | 166.0 | 68.1 | |
| 0.00 | 2.60 | 0.00 | 1.85 | -14.19 | 203.97 | -41.04 | 117.72 | 0.7214 | -585.0 | -483.1 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -15.09 | 203.76 | -41.25 | 118.72 | 0.7282 | -628.0 | -514.2 | |
| 11.11 | -31.00 | 8.12 | -31.00 | -15.91 | 203.31 | -41.71 | 119.47 | 0.7372 | -801.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.24 | -15.34 | 203.41 | -41.61 | 118.83 | 0.7333 | -741.0 | -610.3 | |
| 0.00 | 2.06 | 0.00 | 1.52 | -16.65 | 203.02 | -41.99 | 120.21 | 0.7440 | -725.0 | -562.0 | |
| 0.00 | 0.72 | 0.00 | 0.54 | -17.70 | 202.68 | -42.33 | 121.27 | 0.7528 | -563.0 | -490.6 | |
| 1.34 | -31.00 | 0.99 | -31.00 | -16.17 | 202.94 | -42.07 | 119.57 | 0.7423 | -725.9 | 999999 | |
| 0.45 | -31.00 | 0.33 | -31.00 | -16.41 | 202.84 | -42.18 | 119.80 | 0.7446 | -594.4 | 999999 | |
| 0.00 | 2.96 | 0.00 | 2.23 | -17.79 | 202.44 | -42.57 | 121.23 | 0.7557 | -721.0 | -645.9 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -18.13 | 202.34 | -42.68 | 121.57 | 0.7584 | -590.0 | -501.0 | |
| 3.41 | -31.00 | 2.51 | -31.00 | -15.97 | 202.91 | -42.11 | 119.32 | 0.7416 | -664.4 | 999999 | |
| 1.97 | -31.00 | 1.46 | -31.00 | -16.22 | 202.76 | -42.26 | 119.53 | 0.7444 | -501.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.95 | -17.94 | 201.92 | -43.10 | 121.11 | 0.7615 | -642.0 | -540.9 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -17.95 | 201.78 | -43.23 | 121.04 | 0.7628 | -409.0 | -390.0 | |
| 0.00 | 1.43 | 0.00 | 1.14 | -19.50 | 200.47 | -44.55 | 122.11 | 0.7829 | -551.0 | -416.6 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -18.54 | 200.80 | -44.22 | 121.18 | 0.7751 | -504.0 | -496.3 | |
| 0.00 | 0.36 | 0.00 | 0.28 | -19.23 | 200.47 | -44.54 | 121.81 | 0.7816 | -544.0 | -555.8 | |
| 0.00 | 1.08 | 0.00 | 0.84 | -18.48 | 200.64 | -44.38 | 121.03 | 0.7764 | -502.0 | -420.3 | |
| 0.00 | 1.25 | 0.00 | 0.99 | -17.96 | 200.18 | -44.84 | 120.18 | 0.7782 | -445.0 | -401.1 | |
| 0.00 | 0.81 | 0.00 | 0.68 | -18.35 | 196.79 | -48.23 | 118.93 | 0.8110 | -326.0 | -221.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
