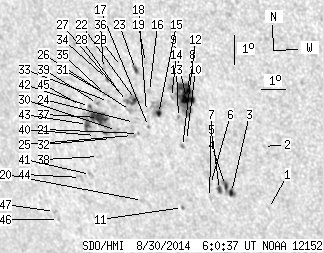

SDO HMI 2014-08-30 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.93 | 193.96 | 34.76 | 135.34 | -15.84 | 205.23 | -38.69 | 121.24 | 0.7054 | -79.6 | -186.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-30 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.42 | -18.39 | 209.51 | -34.41 | 127.44 | 0.6777 | 348.0 | 222.4 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -16.32 | 209.76 | -34.15 | 125.04 | 0.6604 | 597.0 | 384.3 | |
| 2.51 | 11.47 | 1.71 | 7.82 | -17.96 | 208.17 | -35.75 | 125.89 | 0.6884 | 732.8 | 418.2 | |
| 2.78 | -3.00 | 1.89 | -3.00 | -17.74 | 207.98 | -35.94 | 125.48 | 0.6888 | 767.3 | 999999 | |
| 1.97 | 4.39 | 1.35 | 3.01 | -17.89 | 207.71 | -36.21 | 125.47 | 0.6926 | 599.1 | 453.6 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -17.75 | 207.39 | -36.53 | 125.07 | 0.6950 | 484.0 | 458.8 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -18.20 | 207.24 | -36.68 | 125.50 | 0.6994 | 441.0 | 347.8 | |
| 4.75 | 48.49 | 3.19 | 32.73 | -14.72 | 207.15 | -36.77 | 121.06 | 0.6782 | 1015.9 | 206.2 | |
| 9.95 | -8.00 | 6.71 | -8.00 | -14.95 | 207.06 | -36.86 | 121.30 | 0.6806 | 788.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -16.35 | 206.76 | -37.16 | 122.88 | 0.6925 | 828.0 | 539.1 | |
| 0.36 | 1.34 | 0.25 | 0.95 | -18.62 | 206.04 | -37.88 | 125.18 | 0.7142 | 550.2 | 495.7 | |
| 0.00 | 2.06 | 0.00 | 1.42 | -16.56 | 206.55 | -37.37 | 123.00 | 0.6960 | 768.0 | 515.2 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -15.61 | 206.61 | -37.31 | 121.84 | 0.6895 | 518.0 | 299.0 | |
| 0.00 | 1.61 | 0.00 | 1.10 | -14.97 | 206.46 | -37.45 | 120.92 | 0.6871 | 196.0 | -26.4 | |
| 2.33 | 17.30 | 1.61 | 11.90 | -15.54 | 205.82 | -38.09 | 121.23 | 0.6974 | 280.9 | -407.6 | |
| 0.00 | 2.33 | 0.00 | 1.60 | -14.84 | 205.62 | -38.30 | 120.20 | 0.6955 | -338.0 | -297.0 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -16.01 | 205.32 | -38.60 | 121.48 | 0.7055 | -449.0 | -440.9 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -15.51 | 205.35 | -38.57 | 120.88 | 0.7023 | -55.0 | -75.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | -13.90 | 205.65 | -38.27 | 119.01 | 0.6898 | 616.0 | 504.2 | |
| 0.00 | 1.88 | 0.00 | 1.36 | -18.52 | 204.43 | -39.49 | 123.98 | 0.7295 | -169.0 | -237.9 | |
| 0.00 | 1.08 | 0.00 | 0.76 | -16.27 | 204.85 | -39.07 | 121.51 | 0.7120 | 523.0 | 428.2 | |
| 1.88 | 11.74 | 1.31 | 8.19 | -15.15 | 204.98 | -38.93 | 120.19 | 0.7041 | -857.7 | -653.1 | |
| 1.70 | 3.68 | 1.17 | 2.53 | -14.16 | 205.20 | -38.72 | 119.06 | 0.6962 | 506.1 | 349.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -15.92 | 204.77 | -39.15 | 121.02 | 0.7108 | -196.0 | -173.1 | |
| 0.00 | 4.21 | 0.00 | 2.98 | -16.36 | 204.58 | -39.34 | 121.45 | 0.7153 | -8.0 | -15.3 | |
| 0.00 | 4.57 | 0.00 | 3.20 | -15.53 | 204.70 | -39.22 | 120.49 | 0.7093 | -753.0 | -527.3 | |
| 1.17 | -22.00 | 0.81 | -22.00 | -15.24 | 204.64 | -39.28 | 120.09 | 0.7083 | -889.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -15.13 | 204.50 | -39.42 | 119.86 | 0.7091 | -369.0 | -392.6 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -14.11 | 204.64 | -39.28 | 118.65 | 0.7020 | -178.0 | -188.0 | |
| 0.00 | 2.96 | 0.00 | 2.11 | -16.25 | 203.95 | -39.97 | 120.92 | 0.7212 | -859.0 | -689.6 | |
| 0.00 | 1.25 | 0.00 | 0.88 | -15.22 | 204.11 | -39.81 | 119.74 | 0.7138 | -648.0 | -569.4 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -16.53 | 203.67 | -40.25 | 121.10 | 0.7256 | -621.0 | -569.8 | |
| 0.00 | 1.25 | 0.00 | 0.89 | -15.31 | 203.85 | -40.07 | 119.69 | 0.7170 | -599.0 | -480.8 | |
| 0.54 | 1.70 | 0.38 | 1.20 | -14.59 | 203.97 | -39.95 | 118.85 | 0.7118 | 386.2 | 247.5 | |
| 0.00 | 1.70 | 0.00 | 1.21 | -15.06 | 203.74 | -40.18 | 119.31 | 0.7168 | -858.0 | -740.4 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -14.24 | 203.88 | -40.04 | 118.36 | 0.7108 | -742.0 | -673.9 | |
| 14.79 | 43.83 | 10.61 | 31.55 | -15.88 | 203.30 | -40.62 | 120.06 | 0.7259 | -861.1 | -563.1 | |
| 0.00 | 1.34 | 0.00 | 0.98 | -17.19 | 202.96 | -40.96 | 121.46 | 0.7365 | -606.0 | -552.9 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -15.42 | 203.37 | -40.55 | 119.53 | 0.7226 | -848.0 | -671.3 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -16.49 | 203.02 | -40.90 | 120.65 | 0.7321 | -585.0 | -489.0 | |
| 0.00 | 2.69 | 0.00 | 1.99 | -17.83 | 202.44 | -41.48 | 121.91 | 0.7451 | -688.0 | -573.8 | |
| 0.81 | -37.00 | 0.58 | -37.00 | -15.54 | 203.00 | -40.92 | 119.48 | 0.7271 | -564.1 | 999999 | |
| 4.39 | -37.00 | 3.19 | -37.00 | -16.15 | 202.77 | -41.15 | 120.09 | 0.7328 | -603.6 | 999999 | |
| 0.00 | 2.78 | 0.00 | 2.07 | -17.97 | 201.97 | -41.95 | 121.80 | 0.7505 | -735.0 | -524.7 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -15.54 | 202.63 | -41.29 | 119.26 | 0.7310 | -398.0 | -372.6 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -19.49 | 200.53 | -43.39 | 122.75 | 0.7723 | -603.0 | -495.5 | |
| 0.00 | 1.34 | 0.00 | 1.04 | -19.23 | 200.44 | -43.48 | 122.40 | 0.7718 | -643.0 | -558.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
