SDO HMI 2014-08-30 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.87 | 273.03 | 59.42 | 180.92 | -15.78 | 205.14 | -34.94 | 123.78 | 0.6647 | -127.9 | -140.0 | |
|
previous
or next observation for the same group /

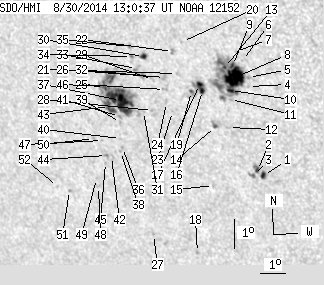

back to the solar disc SDO HMI 2014-08-30 13:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 4.39 | 1.63 | 2.85 | -18.09 | 208.15 | -31.92 | 129.10 | 0.6500 | 750.4 | 616.0 | |
| 1.70 | 7.79 | 1.11 | 5.08 | -17.94 | 207.96 | -32.12 | 128.74 | 0.6508 | 737.6 | 485.9 | |
| 0.63 | -2.00 | 0.41 | -2.00 | -18.11 | 207.77 | -32.31 | 128.81 | 0.6541 | 535.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -15.16 | 208.15 | -31.93 | 125.30 | 0.6277 | 338.0 | 297.7 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -14.86 | 208.20 | -31.88 | 124.94 | 0.6250 | 611.0 | 560.5 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -14.32 | 208.07 | -32.01 | 124.09 | 0.6225 | 607.0 | 605.3 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -14.04 | 207.85 | -32.23 | 123.54 | 0.6229 | 585.0 | 556.5 | |
| 27.05 | 89.58 | 17.23 | 57.25 | -14.90 | 207.67 | -32.41 | 124.55 | 0.6311 | 864.7 | 196.4 | |
| 1.61 | -8.00 | 1.02 | -8.00 | -14.51 | 207.66 | -32.41 | 124.02 | 0.6284 | 819.4 | 999999 | |
| 2.15 | -8.00 | 1.38 | -8.00 | -15.34 | 207.45 | -32.63 | 124.96 | 0.6368 | 534.9 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.04 | -15.63 | 207.39 | -32.69 | 125.31 | 0.6395 | 105.0 | 159.1 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -16.57 | 207.14 | -32.94 | 126.32 | 0.6491 | 516.0 | 397.1 | |
| 0.99 | -8.00 | 0.63 | -8.00 | -14.59 | 207.35 | -32.73 | 123.89 | 0.6325 | 602.6 | 999999 | |
| 0.90 | 3.58 | 0.59 | 2.34 | -16.57 | 206.65 | -33.43 | 125.93 | 0.6543 | 624.6 | 420.8 | |
| 0.00 | 1.43 | 0.00 | 0.96 | -18.56 | 206.15 | -33.93 | 128.03 | 0.6740 | 545.0 | 415.7 | |
| 2.78 | 18.27 | 1.80 | 11.90 | -15.41 | 206.38 | -33.70 | 124.20 | 0.6490 | 178.0 | 166.7 | |
| 3.14 | -16.00 | 2.04 | -16.00 | -15.22 | 206.30 | -33.78 | 123.89 | 0.6485 | -506.8 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.00 | -20.91 | 204.93 | -35.15 | 129.88 | 0.7030 | 532.0 | 456.6 | |
| 0.54 | -16.00 | 0.35 | -16.00 | -15.48 | 205.95 | -34.13 | 123.95 | 0.6541 | 365.3 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -13.86 | 205.90 | -34.18 | 121.76 | 0.6437 | 168.0 | 132.0 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -14.92 | 205.48 | -34.59 | 122.87 | 0.6555 | -580.0 | -560.2 | |
| 0.00 | 2.24 | 0.00 | 1.46 | -14.21 | 205.46 | -34.62 | 121.91 | 0.6510 | 725.0 | 560.8 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -16.19 | 205.08 | -35.00 | 124.22 | 0.6684 | 334.0 | 165.6 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -15.91 | 204.91 | -35.17 | 123.73 | 0.6684 | -303.0 | -274.9 | |
| 0.00 | 1.88 | 0.00 | 1.25 | -15.49 | 204.92 | -35.16 | 123.19 | 0.6654 | -752.0 | -568.6 | |
| 0.00 | 2.69 | 0.00 | 1.77 | -15.09 | 204.99 | -35.08 | 122.73 | 0.6620 | -623.0 | -593.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -20.43 | 203.30 | -36.77 | 128.09 | 0.7151 | 437.0 | 356.6 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -16.22 | 204.30 | -35.78 | 123.68 | 0.6769 | -662.0 | -574.3 | |
| 0.00 | 1.70 | 0.00 | 1.13 | -15.19 | 204.51 | -35.57 | 122.51 | 0.6679 | -510.0 | -439.7 | |
| 2.51 | 4.03 | 1.66 | 2.67 | -14.46 | 204.31 | -35.77 | 121.40 | 0.6655 | 450.5 | 241.7 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -16.28 | 203.94 | -36.14 | 123.50 | 0.6812 | -331.0 | -292.1 | |
| 0.00 | 2.33 | 0.00 | 1.55 | -15.09 | 204.07 | -36.01 | 122.06 | 0.6722 | -874.0 | -699.3 | |
| 0.00 | 2.87 | 0.00 | 1.91 | -14.87 | 203.95 | -36.12 | 121.70 | 0.6720 | -812.0 | -613.3 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -14.49 | 203.83 | -36.24 | 121.12 | 0.6709 | 461.0 | 386.3 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -14.17 | 203.82 | -36.26 | 120.68 | 0.6691 | -567.0 | -523.7 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -17.55 | 202.81 | -37.27 | 124.29 | 0.7011 | -683.0 | -570.2 | |
| 33.86 | 96.93 | 23.05 | 66.03 | -15.98 | 203.10 | -36.98 | 122.53 | 0.6882 | -897.9 | -552.2 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -17.69 | 202.70 | -37.38 | 124.39 | 0.7032 | -700.0 | -633.2 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -16.72 | 202.93 | -37.15 | 123.34 | 0.6946 | -639.0 | -550.7 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -17.26 | 202.81 | -37.27 | 123.92 | 0.6993 | -527.0 | -483.7 | |
| 0.00 | 1.70 | 0.00 | 1.17 | -16.52 | 202.94 | -37.14 | 123.10 | 0.6933 | -570.0 | -460.6 | |
| 0.00 | 2.51 | 0.00 | 1.76 | -17.89 | 202.29 | -37.79 | 124.34 | 0.7086 | -664.0 | -552.5 | |
| 6.81 | -37.00 | 4.68 | -37.00 | -16.22 | 202.61 | -37.47 | 122.49 | 0.6948 | -583.9 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.38 | -17.88 | 202.09 | -37.99 | 124.19 | 0.7105 | -680.0 | -569.6 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -18.12 | 201.99 | -38.09 | 124.41 | 0.7130 | -508.0 | -489.9 | |
| 2.69 | -37.00 | 1.84 | -37.00 | -15.57 | 202.55 | -37.53 | 121.63 | 0.6914 | -692.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -17.38 | 202.05 | -38.03 | 123.56 | 0.7078 | -630.0 | -566.7 | |
| 0.00 | 1.61 | 0.00 | 1.15 | -18.96 | 201.47 | -38.60 | 125.08 | 0.7233 | -560.0 | -525.1 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -18.69 | 201.47 | -38.61 | 124.75 | 0.7218 | -668.0 | -583.4 | |
| 0.00 | 1.61 | 0.00 | 1.13 | -17.34 | 201.70 | -38.38 | 123.28 | 0.7112 | -570.0 | -420.2 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -19.20 | 200.20 | -39.88 | 124.52 | 0.7372 | -584.0 | -439.2 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -19.10 | 199.73 | -40.35 | 124.11 | 0.7412 | -401.0 | -282.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
