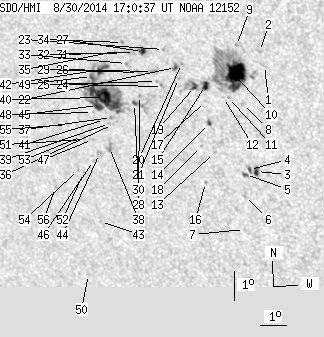

SDO HMI 2014-08-30 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.75 | 348.34 | 66.06 | 224.15 | -15.68 | 205.23 | -32.64 | 125.50 | 0.6391 | -70.1 | -128.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-30 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.51 | 0.00 | 1.53 | -14.53 | 209.04 | -28.84 | 127.21 | 0.5884 | 580.0 | 586.5 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -14.08 | 208.92 | -28.95 | 126.48 | 0.5861 | 776.0 | 609.8 | |
| 2.78 | 4.83 | 1.76 | 3.07 | -18.07 | 208.16 | -29.71 | 131.07 | 0.6273 | 873.8 | 676.4 | |
| 1.07 | 2.78 | 0.68 | 1.77 | -18.02 | 207.91 | -29.96 | 130.77 | 0.6294 | 559.2 | 520.9 | |
| 1.07 | 2.78 | 0.69 | 1.77 | -18.19 | 207.73 | -30.14 | 130.83 | 0.6327 | 555.2 | 422.2 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -18.94 | 207.54 | -30.33 | 131.59 | 0.6408 | 680.0 | 448.5 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -20.07 | 207.30 | -30.57 | 132.73 | 0.6526 | 516.0 | 336.2 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -15.86 | 208.04 | -29.83 | 128.09 | 0.6103 | 639.0 | 453.6 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -13.94 | 208.12 | -29.75 | 125.53 | 0.5941 | 737.0 | 621.8 | |
| 37.96 | 139.13 | 23.54 | 86.62 | -14.92 | 207.93 | -29.94 | 126.73 | 0.6039 | 959.0 | 280.5 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -15.66 | 207.56 | -30.31 | 127.39 | 0.6139 | 619.0 | 433.3 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -15.67 | 207.37 | -30.50 | 127.24 | 0.6160 | 344.0 | 330.5 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -17.53 | 206.71 | -31.16 | 129.07 | 0.6378 | 606.0 | 461.0 | |
| 0.98 | 2.60 | 0.63 | 1.65 | -16.57 | 206.70 | -31.17 | 127.83 | 0.6303 | 672.3 | 566.5 | |
| 3.94 | -10.00 | 2.48 | -10.00 | -15.32 | 206.77 | -31.10 | 126.24 | 0.6198 | 259.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.70 | -18.57 | 206.16 | -31.71 | 129.89 | 0.6516 | 508.0 | 370.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -15.85 | 206.68 | -31.19 | 126.87 | 0.6249 | 486.0 | 401.5 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -17.36 | 206.26 | -31.61 | 128.46 | 0.6412 | 565.0 | 526.8 | |
| 2.51 | -10.00 | 1.59 | -10.00 | -15.38 | 206.36 | -31.51 | 125.96 | 0.6249 | 549.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -14.66 | 206.00 | -31.87 | 124.68 | 0.6234 | -726.0 | -579.8 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -15.16 | 205.81 | -32.06 | 125.20 | 0.6293 | -175.0 | -181.0 | |
| 1.25 | 3.13 | 0.80 | 1.99 | -14.81 | 205.76 | -32.12 | 124.68 | 0.6272 | -744.6 | -632.5 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -14.25 | 205.40 | -32.47 | 123.63 | 0.6271 | 619.0 | 491.7 | |
| 0.00 | 1.88 | 0.00 | 1.21 | -15.47 | 205.16 | -32.71 | 125.07 | 0.6387 | -641.0 | -572.8 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -15.32 | 204.96 | -32.91 | 124.71 | 0.6398 | -685.0 | -491.4 | |
| 0.00 | 4.48 | 0.00 | 2.87 | -15.00 | 204.87 | -33.00 | 124.21 | 0.6385 | -844.0 | -605.8 | |
| 3.22 | 4.92 | 2.07 | 3.16 | -14.37 | 204.60 | -33.27 | 123.15 | 0.6370 | 610.6 | 400.2 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -15.83 | 204.22 | -33.65 | 124.79 | 0.6514 | -688.0 | -508.3 | |
| 0.00 | 2.86 | 0.00 | 1.85 | -15.07 | 204.33 | -33.54 | 123.88 | 0.6449 | -924.0 | -706.4 | |
| 1.16 | 11.28 | 0.76 | 7.36 | -16.11 | 203.98 | -33.89 | 124.97 | 0.6560 | -861.3 | -624.5 | |
| 0.00 | 1.34 | 0.00 | 0.86 | -14.42 | 204.29 | -33.58 | 122.98 | 0.6409 | 213.0 | 320.3 | |
| 0.00 | 2.33 | 0.00 | 1.50 | -14.44 | 204.02 | -33.85 | 122.80 | 0.6440 | 429.0 | 337.1 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -14.80 | 203.92 | -33.95 | 123.21 | 0.6476 | -619.0 | -603.6 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -14.13 | 203.89 | -33.98 | 122.28 | 0.6433 | -820.0 | -672.4 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -14.44 | 203.57 | -34.30 | 122.46 | 0.6490 | 372.0 | 260.5 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -16.87 | 202.98 | -34.89 | 125.17 | 0.6720 | -519.0 | -480.2 | |
| 0.00 | 1.79 | 0.00 | 1.19 | -16.64 | 202.99 | -34.88 | 124.89 | 0.6703 | -629.0 | -539.4 | |
| 0.00 | 4.39 | 0.00 | 2.96 | -17.65 | 202.69 | -35.18 | 125.93 | 0.6804 | -796.0 | -635.3 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -16.84 | 202.87 | -35.00 | 125.06 | 0.6729 | -623.0 | -534.7 | |
| 35.45 | 117.29 | 23.52 | 77.71 | -15.99 | 202.85 | -35.02 | 123.96 | 0.6673 | -923.7 | -564.7 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -16.72 | 202.70 | -35.17 | 124.78 | 0.6739 | -466.0 | -380.4 | |
| 4.83 | -40.00 | 3.18 | -40.00 | -15.07 | 202.92 | -34.95 | 122.81 | 0.6604 | -933.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -20.20 | 201.70 | -36.17 | 128.28 | 0.7079 | -619.0 | -499.4 | |
| 0.00 | 3.22 | 0.00 | 2.19 | -17.88 | 202.25 | -35.62 | 125.89 | 0.6865 | -793.0 | -656.7 | |
| 5.55 | -40.00 | 3.71 | -40.00 | -16.28 | 202.52 | -35.35 | 124.08 | 0.6728 | -624.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -18.14 | 201.95 | -35.92 | 125.98 | 0.6913 | -600.0 | -494.4 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -17.43 | 202.08 | -35.79 | 125.20 | 0.6852 | -613.0 | -484.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -16.53 | 202.28 | -35.59 | 124.21 | 0.6770 | -317.0 | -240.2 | |
| 0.98 | -40.00 | 0.65 | -40.00 | -15.33 | 202.49 | -35.38 | 122.83 | 0.6669 | -753.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -22.09 | 200.66 | -37.21 | 129.70 | 0.7305 | -307.0 | -358.8 | |
| 0.00 | 1.79 | 0.00 | 1.22 | -17.46 | 201.76 | -36.11 | 125.00 | 0.6887 | -486.0 | -386.6 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -18.58 | 201.45 | -36.42 | 126.15 | 0.6993 | -772.0 | -651.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -17.36 | 201.66 | -36.21 | 124.82 | 0.6891 | -390.0 | -435.7 | |
| 0.00 | 1.34 | 0.00 | 0.93 | -18.49 | 201.27 | -36.60 | 125.91 | 0.7005 | -586.0 | -503.1 | |
| 0.00 | 1.97 | 0.00 | 1.35 | -17.00 | 201.19 | -36.68 | 124.03 | 0.6916 | -324.0 | -330.5 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -19.18 | 200.16 | -37.71 | 125.96 | 0.7160 | -629.0 | -495.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
