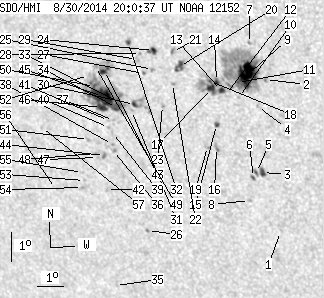

SDO HMI 2014-08-30 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.36 | 363.79 | 66.61 | 229.29 | -15.65 | 205.38 | -30.83 | 127.01 | 0.6194 | -114.9 | -38.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-30 20:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.45 | -20.05 | 208.42 | -27.79 | 135.38 | 0.6258 | 527.0 | 482.5 | |
| 0.00 | 1.97 | 0.00 | 1.19 | -14.98 | 208.73 | -27.48 | 129.19 | 0.5773 | 707.0 | 613.3 | |
| 3.04 | 8.41 | 1.90 | 5.26 | -18.08 | 208.13 | -28.08 | 132.68 | 0.6109 | 912.9 | 632.6 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -15.89 | 208.32 | -27.90 | 130.01 | 0.5897 | 663.0 | 541.8 | |
| 0.63 | -3.00 | 0.39 | -3.00 | -18.10 | 207.91 | -28.30 | 132.48 | 0.6132 | 667.3 | 999999 | |
| 0.90 | 2.24 | 0.56 | 1.41 | -18.27 | 207.77 | -28.44 | 132.56 | 0.6162 | 549.3 | 401.0 | |
| 0.00 | 1.52 | 0.00 | 0.92 | -13.84 | 208.32 | -27.89 | 127.18 | 0.5721 | 774.0 | 644.7 | |
| 0.00 | 1.52 | 0.00 | 0.96 | -19.06 | 207.48 | -28.73 | 133.25 | 0.6261 | 659.0 | 491.9 | |
| 30.35 | 157.19 | 18.47 | 96.11 | -14.86 | 208.11 | -28.10 | 128.40 | 0.5831 | 1093.9 | 329.6 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -15.63 | 207.68 | -28.54 | 129.03 | 0.5944 | 685.0 | 538.0 | |
| 0.27 | -9.00 | 0.16 | -9.00 | -15.14 | 207.71 | -28.50 | 128.40 | 0.5899 | 709.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.88 | -15.56 | 207.22 | -28.99 | 128.50 | 0.5988 | 119.0 | 223.0 | |
| 2.51 | -9.00 | 1.55 | -9.00 | -15.44 | 207.10 | -29.12 | 128.21 | 0.5991 | 526.2 | 999999 | |
| 1.61 | -9.00 | 0.99 | -9.00 | -15.16 | 206.96 | -29.25 | 127.70 | 0.5983 | 491.2 | 999999 | |
| 1.07 | 2.69 | 0.67 | 1.68 | -16.58 | 206.73 | -29.48 | 129.38 | 0.6125 | 806.7 | 601.0 | |
| 0.00 | 3.04 | 0.00 | 1.92 | -17.35 | 206.59 | -29.62 | 130.25 | 0.6203 | 817.0 | 687.0 | |
| 4.65 | -9.00 | 2.88 | -9.00 | -15.40 | 206.74 | -29.47 | 127.82 | 0.6027 | 580.1 | 999999 | |
| 0.63 | -9.00 | 0.39 | -9.00 | -15.17 | 206.74 | -29.47 | 127.51 | 0.6008 | 321.4 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.64 | -17.34 | 206.27 | -29.94 | 129.93 | 0.6237 | 398.0 | 360.8 | |
| 4.21 | 7.61 | 2.62 | 4.74 | -14.75 | 205.68 | -30.53 | 125.98 | 0.6092 | -877.6 | -668.3 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -14.27 | 205.50 | -30.71 | 125.16 | 0.6076 | 675.0 | 623.8 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -15.33 | 205.34 | -30.88 | 126.45 | 0.6175 | -680.0 | -603.7 | |
| 0.00 | 1.61 | 0.00 | 1.02 | -16.08 | 204.84 | -31.37 | 127.02 | 0.6288 | -577.0 | -532.7 | |
| 2.42 | 5.91 | 1.52 | 3.71 | -14.29 | 204.81 | -31.40 | 124.58 | 0.6155 | 694.0 | 561.4 | |
| 0.00 | 1.70 | 0.00 | 1.07 | -14.91 | 204.67 | -31.54 | 125.32 | 0.6218 | -910.0 | -753.2 | |
| 0.00 | 1.25 | 0.00 | 0.84 | -20.35 | 203.38 | -32.83 | 131.09 | 0.6768 | 344.0 | 357.4 | |
| 0.00 | 1.43 | 0.00 | 0.91 | -15.07 | 204.31 | -31.90 | 125.22 | 0.6269 | -818.0 | -743.2 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -14.42 | 204.31 | -31.90 | 124.34 | 0.6221 | 489.0 | 390.4 | |
| 0.00 | 3.40 | 0.00 | 2.16 | -14.63 | 204.13 | -32.08 | 124.47 | 0.6257 | -494.0 | -318.0 | |
| 1.70 | 12.71 | 1.09 | 8.15 | -16.12 | 203.79 | -32.42 | 126.18 | 0.6404 | -926.0 | -784.2 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -16.33 | 203.64 | -32.57 | 126.32 | 0.6435 | -567.0 | -460.0 | |
| 1.16 | 2.33 | 0.74 | 1.47 | -14.09 | 203.92 | -32.29 | 123.57 | 0.6241 | -860.4 | -690.8 | |
| 3.22 | 95.07 | 2.09 | 61.89 | -16.06 | 203.16 | -33.05 | 125.59 | 0.6467 | -968.5 | -512.8 | |
| 5.37 | -33.00 | 3.49 | -33.00 | -16.27 | 203.09 | -33.13 | 125.79 | 0.6490 | -834.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -22.36 | 201.59 | -34.62 | 131.96 | 0.7089 | -401.0 | -438.7 | |
| 0.00 | 1.61 | 0.00 | 1.06 | -17.71 | 202.68 | -33.53 | 127.31 | 0.6639 | -743.0 | -595.5 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -16.71 | 202.89 | -33.33 | 126.20 | 0.6544 | -632.0 | -524.9 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -17.51 | 202.68 | -33.53 | 127.06 | 0.6624 | -845.0 | -707.5 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -17.11 | 202.77 | -33.45 | 126.62 | 0.6586 | -595.0 | -536.2 | |
| 0.00 | 0.90 | 0.00 | 0.59 | -16.96 | 202.65 | -33.57 | 126.32 | 0.6587 | -690.0 | -610.8 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -16.72 | 202.69 | -33.52 | 126.06 | 0.6565 | -514.0 | -482.2 | |
| 0.00 | 1.61 | 0.00 | 1.08 | -19.06 | 202.10 | -34.11 | 128.50 | 0.6796 | -407.0 | -373.1 | |
| 4.65 | 16.20 | 3.00 | 10.44 | -15.07 | 202.86 | -33.35 | 124.04 | 0.6430 | -1001.2 | -633.6 | |
| 0.00 | 2.60 | 0.00 | 1.73 | -17.91 | 202.29 | -33.92 | 127.24 | 0.6693 | -775.0 | -649.8 | |
| 29.45 | -33.00 | 19.19 | -33.00 | -15.94 | 202.62 | -33.59 | 124.99 | 0.6517 | -948.6 | 999999 | |
| 5.46 | -33.00 | 3.57 | -33.00 | -16.31 | 202.51 | -33.70 | 125.39 | 0.6555 | -673.7 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -18.00 | 202.00 | -34.21 | 127.12 | 0.6729 | -634.0 | -501.7 | |
| 0.00 | 1.34 | 0.00 | 0.90 | -17.87 | 201.95 | -34.26 | 126.92 | 0.6725 | -633.0 | -567.3 | |
| 0.00 | 2.42 | 0.00 | 1.56 | -14.97 | 202.54 | -33.67 | 123.65 | 0.6458 | -327.0 | -325.4 | |
| 2.06 | -33.00 | 1.34 | -33.00 | -15.63 | 202.38 | -33.83 | 124.40 | 0.6521 | -765.9 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.31 | -17.41 | 201.78 | -34.43 | 126.22 | 0.6710 | -565.0 | -474.0 | |
| 0.00 | 1.97 | 0.00 | 1.28 | -15.28 | 202.21 | -34.00 | 123.82 | 0.6515 | -317.0 | -342.9 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -18.81 | 201.31 | -34.90 | 127.58 | 0.6858 | -476.0 | -393.5 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -19.06 | 201.17 | -35.04 | 127.77 | 0.6889 | -695.0 | -540.8 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -18.55 | 201.29 | -34.92 | 127.25 | 0.6840 | -521.0 | -480.6 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -19.18 | 200.07 | -36.14 | 127.09 | 0.7006 | -476.0 | -484.0 | |
| 0.00 | 1.16 | 0.00 | 0.79 | -17.15 | 200.01 | -36.20 | 124.57 | 0.6876 | -312.0 | -295.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
