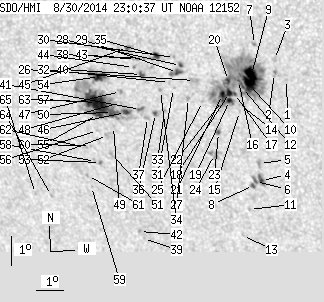

SDO HMI 2014-08-30 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.50 | 413.63 | 66.94 | 255.73 | -15.59 | 205.58 | -28.98 | 128.66 | 0.5988 | -130.3 | 45.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-30 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.64 | -14.74 | 209.49 | -25.07 | 131.45 | 0.5488 | 547.0 | 485.7 | |
| 0.00 | 2.33 | 0.00 | 1.38 | -14.56 | 209.09 | -25.46 | 130.76 | 0.5515 | 862.0 | 722.8 | |
| 0.00 | 2.51 | 0.00 | 1.48 | -14.11 | 209.15 | -25.41 | 130.17 | 0.5467 | 693.0 | 656.4 | |
| 1.52 | 11.19 | 0.94 | 6.90 | -18.14 | 208.12 | -26.44 | 134.47 | 0.5951 | 972.1 | 638.8 | |
| 0.00 | 3.58 | 0.00 | 2.19 | -17.57 | 208.14 | -26.42 | 133.77 | 0.5895 | 834.0 | 664.0 | |
| 0.90 | -4.00 | 0.55 | -4.00 | -18.19 | 207.89 | -26.66 | 134.29 | 0.5977 | 743.6 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -13.66 | 208.51 | -26.04 | 128.83 | 0.5498 | 875.0 | 728.8 | |
| 0.98 | -4.00 | 0.61 | -4.00 | -18.33 | 207.80 | -26.75 | 134.36 | 0.5999 | 637.7 | 999999 | |
| 12.80 | 178.35 | 7.65 | 107.21 | -14.64 | 208.28 | -26.27 | 129.99 | 0.5611 | 1387.6 | 396.2 | |
| 11.28 | -9.00 | 6.76 | -9.00 | -14.97 | 208.17 | -26.39 | 130.33 | 0.5654 | 999.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -19.15 | 207.51 | -27.04 | 135.08 | 0.6104 | 617.0 | 461.2 | |
| 0.27 | -9.00 | 0.16 | -9.00 | -15.09 | 207.91 | -26.65 | 130.21 | 0.5692 | 783.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.40 | -20.05 | 207.09 | -27.46 | 135.73 | 0.6229 | 644.0 | 553.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -15.65 | 207.72 | -26.83 | 130.79 | 0.5763 | 660.0 | 587.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -15.88 | 207.69 | -26.87 | 131.07 | 0.5787 | 637.0 | 483.4 | |
| 0.54 | -9.00 | 0.32 | -9.00 | -14.86 | 207.80 | -26.76 | 129.79 | 0.5684 | 605.7 | 999999 | |
| 1.25 | -9.00 | 0.76 | -9.00 | -15.30 | 207.60 | -26.96 | 130.18 | 0.5745 | 877.6 | 999999 | |
| 3.13 | -9.00 | 1.90 | -9.00 | -15.28 | 207.42 | -27.13 | 129.97 | 0.5762 | 904.4 | 999999 | |
| 1.88 | -9.00 | 1.14 | -9.00 | -15.54 | 207.38 | -27.17 | 130.29 | 0.5789 | 746.3 | 999999 | |
| 2.24 | -9.00 | 1.35 | -9.00 | -14.89 | 207.44 | -27.11 | 129.45 | 0.5725 | 605.6 | 999999 | |
| 2.33 | -9.00 | 1.41 | -9.00 | -15.36 | 207.16 | -27.39 | 129.81 | 0.5797 | 749.7 | 999999 | |
| 1.25 | -9.00 | 0.76 | -9.00 | -15.56 | 207.13 | -27.42 | 130.05 | 0.5818 | 346.1 | 999999 | |
| 1.16 | 2.95 | 0.72 | 1.82 | -16.63 | 206.83 | -27.73 | 131.17 | 0.5944 | 835.2 | 524.0 | |
| 0.00 | 7.70 | 0.00 | 4.77 | -17.37 | 206.56 | -27.99 | 131.87 | 0.6038 | 703.0 | 603.8 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -15.63 | 206.41 | -28.14 | 129.43 | 0.5903 | -215.0 | -197.5 | |
| 0.00 | 6.18 | 0.00 | 3.77 | -14.96 | 206.23 | -28.33 | 128.33 | 0.5866 | -221.0 | -199.3 | |
| 0.00 | 2.06 | 0.00 | 1.27 | -15.56 | 205.92 | -28.63 | 128.86 | 0.5950 | -294.0 | -202.3 | |
| 1.07 | 2.24 | 0.66 | 1.37 | -14.50 | 205.79 | -28.76 | 127.27 | 0.5875 | -895.6 | -708.0 | |
| 2.42 | 7.52 | 1.48 | 4.61 | -14.73 | 205.65 | -28.90 | 127.46 | 0.5911 | -914.5 | -732.6 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -14.25 | 205.62 | -28.94 | 126.75 | 0.5875 | 468.0 | 443.2 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -15.27 | 205.43 | -29.13 | 127.98 | 0.5979 | -636.0 | -576.8 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -15.08 | 205.31 | -29.24 | 127.62 | 0.5976 | -467.0 | -349.0 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -16.02 | 204.98 | -29.57 | 128.57 | 0.6089 | -760.0 | -519.1 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -15.36 | 204.94 | -29.61 | 127.66 | 0.6040 | 447.0 | 402.2 | |
| 3.04 | 6.89 | 1.87 | 4.24 | -14.22 | 204.97 | -29.58 | 126.12 | 0.5946 | 809.3 | 507.8 | |
| 0.98 | 2.24 | 0.62 | 1.40 | -16.14 | 204.64 | -29.92 | 128.41 | 0.6136 | -868.6 | -673.6 | |
| 0.00 | 2.24 | 0.00 | 1.41 | -16.29 | 204.32 | -30.23 | 128.32 | 0.6183 | -870.0 | -701.2 | |
| 0.00 | 1.52 | 0.00 | 0.94 | -14.35 | 204.52 | -30.03 | 125.88 | 0.6006 | 528.0 | 536.5 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -20.39 | 203.35 | -31.20 | 132.56 | 0.6616 | 399.0 | 314.0 | |
| 1.52 | 2.69 | 0.95 | 1.67 | -14.88 | 204.33 | -30.22 | 126.44 | 0.6069 | -886.9 | -775.0 | |
| 1.07 | 3.04 | 0.68 | 1.92 | -16.04 | 204.11 | -30.45 | 127.80 | 0.6186 | -935.3 | -720.5 | |
| 0.00 | 1.34 | 0.00 | 0.88 | -20.16 | 203.25 | -31.30 | 132.20 | 0.6607 | -724.0 | -599.5 | |
| 0.00 | 2.87 | 0.00 | 1.78 | -14.40 | 204.19 | -30.36 | 125.66 | 0.6048 | 515.0 | 287.1 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -14.67 | 204.08 | -30.48 | 125.92 | 0.6082 | -725.0 | -611.6 | |
| 1.07 | 3.85 | 0.67 | 2.39 | -14.03 | 203.96 | -30.60 | 124.93 | 0.6046 | -846.4 | -588.4 | |
| 2.60 | 122.04 | 1.64 | 77.92 | -16.18 | 203.53 | -31.02 | 127.46 | 0.6258 | -1015.0 | -497.9 | |
| 0.00 | 2.24 | 0.00 | 1.41 | -15.49 | 203.47 | -31.09 | 126.50 | 0.6213 | -898.0 | -824.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -15.86 | 203.40 | -31.15 | 126.93 | 0.6247 | -739.0 | -648.8 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -16.67 | 203.00 | -31.56 | 127.65 | 0.6354 | -719.0 | -573.0 | |
| 6.63 | -46.00 | 4.22 | -46.00 | -16.21 | 203.05 | -31.51 | 127.08 | 0.6313 | -879.5 | 999999 | |
| 0.00 | 3.67 | 0.00 | 2.37 | -17.61 | 202.78 | -31.78 | 128.66 | 0.6450 | -425.0 | -531.7 | |
| 0.00 | 3.76 | 0.00 | 2.42 | -16.99 | 202.71 | -31.84 | 127.81 | 0.6409 | -695.0 | -592.3 | |
| 0.00 | 1.79 | 0.00 | 1.17 | -17.92 | 202.27 | -32.29 | 128.60 | 0.6526 | -842.0 | -728.3 | |
| 7.79 | -46.00 | 4.94 | -46.00 | -15.05 | 202.77 | -31.79 | 125.31 | 0.6256 | -1024.7 | 999999 | |
| 5.01 | -46.00 | 3.22 | -46.00 | -16.32 | 202.47 | -32.09 | 126.73 | 0.6383 | -714.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -16.85 | 202.37 | -32.19 | 127.33 | 0.6434 | -445.0 | -356.2 | |
| 32.77 | -46.00 | 20.96 | -46.00 | -15.92 | 202.50 | -32.05 | 126.24 | 0.6350 | -969.7 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.40 | -17.90 | 202.08 | -32.47 | 128.42 | 0.6544 | -599.0 | -522.4 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -18.75 | 201.75 | -32.81 | 129.20 | 0.6644 | -616.0 | -490.6 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -17.37 | 202.00 | -32.55 | 127.69 | 0.6512 | -599.0 | -500.9 | |
| 0.00 | 1.43 | 0.00 | 0.94 | -18.39 | 201.67 | -32.88 | 128.69 | 0.6623 | -658.0 | -551.4 | |
| 0.00 | 1.52 | 0.00 | 0.99 | -17.45 | 201.80 | -32.76 | 127.62 | 0.6540 | -612.0 | -500.9 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -15.93 | 201.87 | -32.69 | 125.72 | 0.6419 | -439.0 | -345.1 | |
| 0.00 | 1.25 | 0.00 | 0.85 | -19.17 | 200.11 | -34.45 | 128.39 | 0.6839 | -511.0 | -422.6 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -19.15 | 199.49 | -35.07 | 127.88 | 0.6899 | -466.0 | -414.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
