SDO HMI 2014-08-31 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.74 | 0.00 | 3.63 | 11.08 | 182.42 | -49.93 | 81.44 | 0.7588 | -354.2 | -218.5 | |
|
previous
or next observation for the same group /

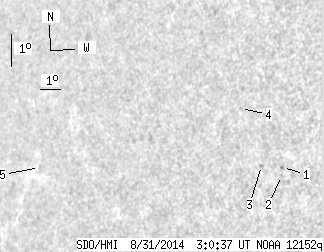

back to the solar disc SDO HMI 2014-08-31 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.82 | 11.14 | 186.54 | -45.81 | 81.42 | 0.7138 | -559.0 | -503.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 10.89 | 186.55 | -45.81 | 81.77 | 0.7137 | -610.0 | -640.0 | |
| 0.00 | 1.25 | 0.00 | 0.90 | 11.12 | 185.61 | -46.75 | 81.47 | 0.7250 | -636.0 | -500.1 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 12.74 | 184.27 | -48.08 | 79.28 | 0.7410 | -527.0 | -473.6 | |
| 0.00 | 1.16 | 0.00 | 1.06 | 9.99 | 174.63 | -57.72 | 82.72 | 0.8415 | 561.0 | 474.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
