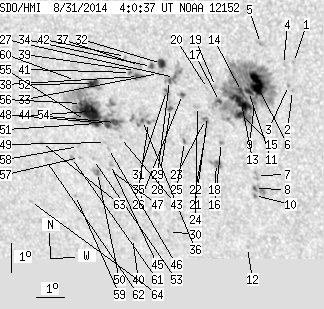

SDO HMI 2014-08-31 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.12 | 516.82 | 74.30 | 310.53 | -15.53 | 205.76 | -26.04 | 131.60 | 0.5668 | -49.0 | 41.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.57 | -13.91 | 209.73 | -22.08 | 133.88 | 0.5083 | 866.0 | 703.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.82 | 209.59 | -22.21 | 135.02 | 0.5191 | 787.0 | 668.4 | |
| 0.00 | 1.52 | 0.00 | 0.88 | -14.66 | 209.48 | -22.33 | 134.65 | 0.5187 | 825.0 | 689.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -13.99 | 209.38 | -22.43 | 133.56 | 0.5128 | 846.0 | 704.6 | |
| 0.00 | 3.23 | 0.00 | 1.86 | -13.34 | 208.67 | -23.14 | 131.72 | 0.5142 | 836.0 | 616.6 | |
| 20.34 | 238.21 | 11.86 | 139.73 | -14.65 | 208.39 | -23.42 | 133.28 | 0.5302 | 1341.4 | 415.6 | |
| 0.00 | 3.76 | 0.00 | 2.25 | -17.70 | 208.00 | -23.81 | 136.88 | 0.5648 | 925.0 | 671.8 | |
| 1.08 | 8.87 | 0.65 | 5.34 | -18.14 | 207.86 | -23.94 | 137.27 | 0.5706 | 710.8 | 706.3 | |
| 0.90 | -6.00 | 0.53 | -6.00 | -15.28 | 208.25 | -23.56 | 133.98 | 0.5379 | 721.9 | 999999 | |
| 0.36 | 1.08 | 0.22 | 0.65 | -18.38 | 207.83 | -23.98 | 137.53 | 0.5733 | 641.8 | 489.2 | |
| 3.40 | -6.00 | 1.99 | -6.00 | -14.93 | 208.08 | -23.72 | 133.30 | 0.5362 | 917.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -20.16 | 207.30 | -24.51 | 139.05 | 0.5964 | 643.0 | 436.1 | |
| 17.29 | -6.00 | 10.18 | -6.00 | -15.30 | 207.80 | -24.01 | 133.47 | 0.5429 | 899.3 | 999999 | |
| 2.96 | -6.00 | 1.74 | -6.00 | -14.94 | 207.84 | -23.96 | 133.02 | 0.5389 | 860.6 | 999999 | |
| 5.20 | -6.00 | 3.07 | -6.00 | -15.70 | 207.71 | -24.09 | 133.92 | 0.5477 | 767.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.97 | -16.66 | 206.92 | -24.88 | 134.29 | 0.5652 | 862.0 | 616.3 | |
| 1.43 | -6.00 | 0.85 | -6.00 | -15.31 | 207.04 | -24.77 | 132.60 | 0.5510 | 273.5 | 999999 | |
| 0.00 | 7.53 | 0.00 | 4.55 | -17.38 | 206.65 | -25.16 | 134.90 | 0.5750 | 847.0 | 643.4 | |
| 0.00 | 2.24 | 0.00 | 1.32 | -14.83 | 206.96 | -24.84 | 131.83 | 0.5472 | -93.0 | 6.8 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -14.91 | 206.67 | -25.13 | 131.62 | 0.5511 | 29.0 | 90.6 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -15.83 | 206.55 | -25.25 | 132.75 | 0.5611 | 514.0 | 463.4 | |
| 0.00 | 2.87 | 0.00 | 1.72 | -16.23 | 206.46 | -25.34 | 133.19 | 0.5658 | -210.0 | -26.7 | |
| 0.00 | 3.40 | 0.00 | 2.04 | -15.93 | 206.47 | -25.34 | 132.80 | 0.5630 | 635.0 | 561.0 | |
| 0.00 | 3.05 | 0.00 | 1.82 | -15.52 | 206.25 | -25.56 | 131.99 | 0.5614 | -204.0 | -150.6 | |
| 0.63 | 2.24 | 0.38 | 1.36 | -16.70 | 205.62 | -26.18 | 132.90 | 0.5791 | -838.3 | -664.8 | |
| 1.16 | 3.31 | 0.70 | 1.98 | -15.15 | 205.77 | -26.03 | 130.97 | 0.5632 | -833.3 | -608.0 | |
| 1.25 | 18.01 | 0.75 | 10.74 | -14.61 | 205.56 | -26.24 | 129.99 | 0.5605 | -975.6 | -634.6 | |
| 1.34 | 10.84 | 0.81 | 6.53 | -15.64 | 205.28 | -26.52 | 131.11 | 0.5729 | -800.4 | -163.2 | |
| 1.34 | -27.00 | 0.80 | -27.00 | -14.72 | 205.38 | -26.43 | 129.94 | 0.5636 | -855.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.78 | 204.53 | -27.27 | 135.60 | 0.6185 | -829.0 | -637.3 | |
| 0.81 | -28.00 | 0.48 | -28.00 | -15.05 | 205.23 | -26.58 | 130.24 | 0.5682 | 584.9 | 999999 | |
| 5.02 | 7.79 | 3.00 | 4.66 | -14.18 | 205.17 | -26.64 | 128.95 | 0.5611 | 951.6 | 531.8 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -14.51 | 205.02 | -26.79 | 129.27 | 0.5657 | 440.0 | 385.7 | |
| 1.61 | 3.76 | 0.97 | 2.26 | -14.30 | 204.80 | -27.00 | 128.74 | 0.5663 | 775.8 | 519.3 | |
| 0.72 | 16.66 | 0.44 | 10.19 | -16.15 | 204.43 | -27.37 | 130.90 | 0.5865 | -870.0 | -742.7 | |
| 1.16 | -35.00 | 0.71 | -35.00 | -16.10 | 204.23 | -27.58 | 130.62 | 0.5882 | -1018.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.92 | -14.29 | 204.38 | -27.43 | 128.30 | 0.5709 | 354.0 | 329.8 | |
| 2.78 | 7.97 | 1.68 | 4.82 | -14.65 | 204.29 | -27.51 | 128.72 | 0.5750 | -892.1 | -669.7 | |
| 0.00 | 1.88 | 0.00 | 1.14 | -14.46 | 204.21 | -27.59 | 128.37 | 0.5742 | -327.0 | -300.4 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -20.10 | 203.16 | -28.65 | 134.60 | 0.6346 | -624.0 | -489.8 | |
| 0.63 | -38.00 | 0.38 | -38.00 | -14.54 | 204.03 | -27.78 | 128.29 | 0.5769 | -853.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -14.03 | 203.92 | -27.88 | 127.46 | 0.5738 | -573.0 | -557.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -16.71 | 203.34 | -28.46 | 130.55 | 0.6030 | -677.0 | -573.7 | |
| 5.20 | 133.21 | 3.21 | 82.71 | -16.22 | 203.24 | -28.56 | 129.81 | 0.5999 | -982.1 | -491.0 | |
| 0.00 | 2.60 | 0.00 | 1.63 | -17.64 | 202.82 | -28.99 | 131.24 | 0.6164 | -751.0 | -700.2 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -17.10 | 202.84 | -28.96 | 130.58 | 0.6116 | -715.0 | -633.6 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -17.81 | 202.72 | -29.09 | 131.36 | 0.6189 | -562.0 | -496.0 | |
| 5.11 | -44.00 | 3.17 | -44.00 | -16.27 | 202.94 | -28.86 | 129.59 | 0.6035 | -885.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -16.91 | 202.77 | -29.04 | 130.25 | 0.6108 | -641.0 | -518.2 | |
| 1.08 | 4.93 | 0.68 | 3.12 | -17.94 | 202.29 | -29.51 | 131.11 | 0.6244 | -743.5 | -573.9 | |
| 3.94 | -44.00 | 2.46 | -44.00 | -16.30 | 202.51 | -29.30 | 129.21 | 0.6084 | -771.9 | 999999 | |
| 6.09 | -44.00 | 3.75 | -44.00 | -14.98 | 202.64 | -29.16 | 127.56 | 0.5960 | -1044.3 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -17.51 | 202.22 | -29.58 | 130.51 | 0.6214 | -715.0 | -598.4 | |
| 26.97 | -44.00 | 16.77 | -44.00 | -15.92 | 202.35 | -29.45 | 128.55 | 0.6068 | -1046.9 | 999999 | |
| 0.54 | -44.00 | 0.34 | -44.00 | -16.22 | 202.16 | -29.65 | 128.78 | 0.6115 | -575.0 | 999999 | |
| 2.78 | -44.00 | 1.73 | -44.00 | -15.67 | 202.10 | -29.70 | 127.99 | 0.6075 | -827.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.47 | 201.72 | -30.09 | 129.99 | 0.6264 | -588.0 | -533.8 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -17.11 | 201.75 | -30.06 | 129.55 | 0.6231 | -576.0 | -440.6 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -18.77 | 201.32 | -30.49 | 131.25 | 0.6412 | -580.0 | -480.9 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -14.93 | 202.00 | -29.80 | 126.89 | 0.6026 | -677.0 | -549.1 | |
| 0.00 | 2.24 | 0.00 | 1.43 | -17.49 | 201.42 | -30.39 | 129.74 | 0.6297 | -654.0 | -542.1 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -17.63 | 200.43 | -31.38 | 129.03 | 0.6410 | -464.0 | -445.8 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -17.07 | 200.39 | -31.42 | 128.28 | 0.6370 | -604.0 | -481.3 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -19.09 | 199.56 | -32.25 | 130.09 | 0.6613 | -573.0 | -379.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
