SDO HMI 2014-08-31 08:02:52 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.95 | 565.57 | 80.03 | 332.90 | -15.49 | 205.92 | -23.68 | 134.26 | 0.5412 | -117.9 | 113.1 | |
|
previous
or next observation for the same group /

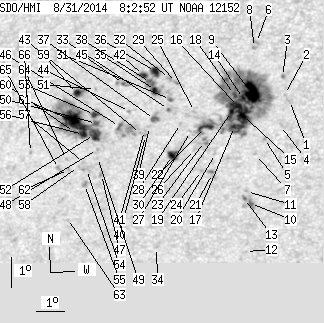

back to the solar disc SDO HMI 2014-08-31 08:02:52 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.87 | 0.00 | 1.63 | -14.82 | 209.75 | -19.84 | 138.22 | 0.4945 | 634.0 | 507.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -14.63 | 209.60 | -19.99 | 137.75 | 0.4939 | 676.0 | 553.8 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -14.04 | 209.59 | -20.00 | 136.90 | 0.4876 | 863.0 | 785.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -15.65 | 209.37 | -20.23 | 138.82 | 0.5076 | 490.0 | 466.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -16.11 | 208.78 | -20.81 | 138.61 | 0.5184 | 565.0 | 532.1 | |
| 0.00 | 2.51 | 0.00 | 1.42 | -12.98 | 208.83 | -20.77 | 134.25 | 0.4844 | 834.0 | 657.6 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -16.65 | 208.41 | -21.18 | 138.83 | 0.5280 | 512.0 | 360.0 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -13.14 | 208.74 | -20.85 | 134.39 | 0.4870 | 789.0 | 707.3 | |
| 20.97 | 276.13 | 12.02 | 159.17 | -14.61 | 208.50 | -21.09 | 136.20 | 0.5051 | 1346.3 | 473.9 | |
| 1.43 | 10.66 | 0.85 | 6.31 | -18.30 | 208.04 | -21.56 | 140.41 | 0.5495 | 772.5 | 587.6 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -17.90 | 207.95 | -21.64 | 139.81 | 0.5460 | 781.0 | 649.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -19.93 | 207.63 | -21.96 | 141.83 | 0.5710 | 388.0 | 276.8 | |
| 0.63 | -10.00 | 0.37 | -10.00 | -18.14 | 207.85 | -21.74 | 139.97 | 0.5495 | 718.7 | 999999 | |
| 2.24 | -9.00 | 1.29 | -9.00 | -14.82 | 208.21 | -21.38 | 136.10 | 0.5103 | 958.2 | 999999 | |
| 6.09 | -9.00 | 3.52 | -9.00 | -15.38 | 208.12 | -21.48 | 136.75 | 0.5172 | 1047.0 | 999999 | |
| 3.67 | -9.00 | 2.12 | -9.00 | -15.09 | 208.01 | -21.58 | 136.21 | 0.5152 | 916.0 | 999999 | |
| 2.51 | -9.00 | 1.46 | -9.00 | -15.76 | 207.80 | -21.79 | 136.85 | 0.5244 | 509.2 | 999999 | |
| 2.42 | -9.00 | 1.39 | -9.00 | -14.70 | 207.92 | -21.67 | 135.55 | 0.5121 | 799.1 | 999999 | |
| 2.51 | -9.00 | 1.45 | -9.00 | -15.27 | 207.76 | -21.84 | 136.12 | 0.5197 | 572.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -16.68 | 207.04 | -22.55 | 137.10 | 0.5417 | 604.0 | 417.4 | |
| 0.00 | 3.67 | 0.00 | 2.18 | -17.35 | 206.85 | -22.74 | 137.73 | 0.5506 | 753.0 | 632.7 | |
| 6.72 | -9.00 | 3.93 | -9.00 | -15.84 | 206.81 | -22.79 | 135.68 | 0.5354 | 520.3 | 999999 | |
| 0.00 | 5.29 | 0.00 | 3.11 | -16.30 | 206.72 | -22.88 | 136.19 | 0.5411 | 429.0 | 393.5 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -17.27 | 206.49 | -23.11 | 137.17 | 0.5534 | 531.0 | 456.0 | |
| 0.00 | 1.43 | 0.00 | 0.84 | -15.33 | 206.49 | -23.10 | 134.60 | 0.5335 | -198.0 | -144.8 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -16.59 | 206.34 | -23.26 | 136.10 | 0.5478 | -107.0 | -48.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -16.00 | 206.27 | -23.32 | 135.24 | 0.5425 | 214.0 | 185.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -15.75 | 205.96 | -23.63 | 134.53 | 0.5432 | -565.0 | -416.3 | |
| 0.00 | 1.97 | 0.00 | 1.15 | -14.41 | 205.99 | -23.61 | 132.69 | 0.5298 | -813.0 | -711.5 | |
| 6.63 | 10.57 | 3.95 | 6.30 | -16.83 | 205.54 | -24.05 | 135.46 | 0.5583 | -811.9 | -494.2 | |
| 0.54 | 6.27 | 0.32 | 3.68 | -14.98 | 205.71 | -23.88 | 133.16 | 0.5382 | -887.3 | -576.2 | |
| 0.00 | 2.24 | 0.00 | 1.31 | -14.29 | 205.76 | -23.83 | 132.25 | 0.5311 | -805.0 | -684.9 | |
| 0.63 | 2.06 | 0.37 | 1.21 | -15.31 | 205.60 | -23.99 | 133.49 | 0.5427 | -710.3 | -548.3 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -19.96 | 204.50 | -25.10 | 138.15 | 0.5997 | -767.0 | -571.8 | |
| 4.03 | 30.91 | 2.37 | 18.15 | -14.71 | 205.23 | -24.36 | 132.22 | 0.5408 | -891.9 | 41.4 | |
| 6.00 | -35.00 | 3.51 | -35.00 | -14.09 | 205.30 | -24.29 | 131.42 | 0.5341 | 817.7 | 999999 | |
| 2.42 | 7.08 | 1.43 | 4.19 | -15.67 | 205.08 | -24.52 | 133.36 | 0.5517 | -939.7 | -731.9 | |
| 3.23 | -35.00 | 1.90 | -35.00 | -14.46 | 205.09 | -24.50 | 131.69 | 0.5400 | 307.9 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.12 | -15.91 | 204.87 | -24.72 | 133.45 | 0.5562 | -637.0 | -505.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -16.21 | 204.69 | -24.90 | 133.66 | 0.5610 | -635.0 | -531.6 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -16.05 | 204.68 | -24.91 | 133.42 | 0.5596 | -666.0 | -593.6 | |
| 3.05 | -35.00 | 1.79 | -35.00 | -14.24 | 204.87 | -24.72 | 131.14 | 0.5403 | 632.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -16.16 | 204.52 | -25.07 | 133.39 | 0.5622 | -749.0 | -628.9 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -15.45 | 204.24 | -25.36 | 132.11 | 0.5585 | 239.0 | 199.7 | |
| 0.45 | 7.62 | 0.27 | 4.51 | -14.54 | 204.15 | -25.45 | 130.74 | 0.5511 | -820.2 | -570.1 | |
| 1.61 | 19.89 | 0.97 | 11.93 | -15.96 | 203.82 | -25.78 | 132.35 | 0.5678 | -901.3 | -747.1 | |
| 0.00 | 2.33 | 0.00 | 1.43 | -17.60 | 202.94 | -26.66 | 133.54 | 0.5922 | -554.0 | -489.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -16.77 | 202.92 | -26.67 | 132.46 | 0.5847 | -614.0 | -553.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -17.04 | 202.88 | -26.71 | 132.76 | 0.5875 | -618.0 | -544.2 | |
| 2.24 | 123.46 | 1.35 | 75.19 | -15.91 | 203.02 | -26.58 | 131.41 | 0.5758 | -993.0 | -386.7 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -14.79 | 203.14 | -26.46 | 130.00 | 0.5645 | -640.0 | -528.1 | |
| 10.12 | -50.00 | 6.15 | -50.00 | -16.28 | 202.89 | -26.70 | 131.77 | 0.5805 | -955.9 | 999999 | |
| 3.32 | -50.00 | 2.00 | -50.00 | -15.62 | 202.99 | -26.60 | 130.98 | 0.5735 | -994.3 | 999999 | |
| 0.00 | 3.40 | 0.00 | 2.10 | -17.46 | 202.42 | -27.17 | 132.83 | 0.5962 | -676.0 | -613.4 | |
| 0.00 | 3.05 | 0.00 | 1.89 | -17.97 | 202.27 | -27.33 | 133.32 | 0.6024 | -711.0 | -578.1 | |
| 4.66 | -50.00 | 2.84 | -50.00 | -16.30 | 202.50 | -27.09 | 131.39 | 0.5849 | -720.7 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.94 | -17.24 | 202.35 | -27.24 | 132.46 | 0.5948 | -655.0 | -562.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -17.38 | 202.15 | -27.44 | 132.44 | 0.5982 | -568.0 | -529.1 | |
| 4.39 | 8.51 | 2.65 | 5.13 | -14.96 | 202.48 | -27.11 | 129.55 | 0.5731 | -990.4 | -807.5 | |
| 0.72 | -50.00 | 0.44 | -50.00 | -16.26 | 202.19 | -27.41 | 131.01 | 0.5878 | -472.2 | 999999 | |
| 31.72 | -50.00 | 19.32 | -50.00 | -15.89 | 202.21 | -27.39 | 130.54 | 0.5843 | -980.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -17.50 | 201.77 | -27.82 | 132.21 | 0.6032 | -632.0 | -557.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -19.16 | 201.44 | -28.15 | 133.95 | 0.6214 | -204.0 | -230.1 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -17.17 | 201.76 | -27.84 | 131.77 | 0.6004 | -572.0 | -481.4 | |
| 0.00 | 2.87 | 0.00 | 1.78 | -17.49 | 201.41 | -28.18 | 131.84 | 0.6068 | -645.0 | -518.6 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.02 | 200.48 | -29.11 | 130.32 | 0.6124 | -665.0 | -574.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
