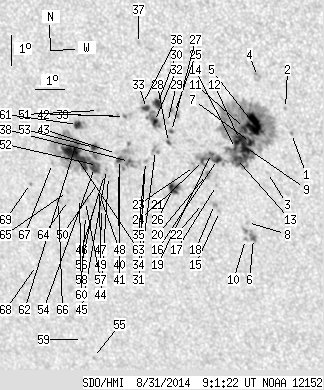

SDO HMI 2014-08-31 09:01:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.93 | 574.08 | 79.48 | 336.67 | -15.53 | 205.86 | -23.20 | 134.90 | 0.5367 | -119.6 | 69.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 09:01:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 0.91 | -14.84 | 209.76 | -19.30 | 139.04 | 0.4893 | 791.0 | 661.9 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -14.03 | 209.64 | -19.42 | 137.72 | 0.4815 | 900.0 | 801.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -16.16 | 208.82 | -20.23 | 139.48 | 0.5133 | 760.0 | 559.6 | |
| 0.00 | 5.64 | 0.00 | 3.18 | -13.03 | 208.80 | -20.26 | 135.04 | 0.4794 | 603.0 | 676.7 | |
| 20.07 | 277.37 | 11.46 | 159.19 | -14.60 | 208.55 | -20.51 | 136.97 | 0.4989 | 1324.1 | 460.8 | |
| 1.61 | 9.68 | 0.95 | 5.71 | -18.38 | 208.09 | -20.97 | 141.27 | 0.5450 | 724.6 | 641.5 | |
| 4.48 | -5.00 | 2.57 | -5.00 | -15.19 | 208.36 | -20.70 | 137.53 | 0.5073 | 1068.5 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -17.85 | 207.95 | -21.11 | 140.44 | 0.5404 | 812.0 | 641.6 | |
| 9.59 | -5.00 | 5.52 | -5.00 | -15.37 | 208.17 | -20.89 | 137.51 | 0.5111 | 972.5 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -18.43 | 207.81 | -21.25 | 140.96 | 0.5481 | 608.0 | 461.4 | |
| 3.67 | -5.00 | 2.10 | -5.00 | -14.74 | 208.20 | -20.86 | 136.70 | 0.5040 | 975.0 | 999999 | |
| 8.69 | -5.00 | 5.00 | -5.00 | -15.11 | 208.00 | -21.06 | 136.93 | 0.5101 | 859.2 | 999999 | |
| 2.51 | -5.00 | 1.45 | -5.00 | -15.74 | 207.83 | -21.23 | 137.56 | 0.5186 | 534.3 | 999999 | |
| 1.16 | -5.00 | 0.67 | -5.00 | -15.41 | 207.83 | -21.23 | 137.12 | 0.5151 | 596.7 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -17.53 | 207.03 | -22.03 | 138.85 | 0.5456 | 504.0 | 384.1 | |
| 3.94 | -5.00 | 2.29 | -5.00 | -15.81 | 207.18 | -21.88 | 136.79 | 0.5258 | 775.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -16.67 | 207.04 | -22.02 | 137.75 | 0.5363 | 704.0 | 552.9 | |
| 0.00 | 2.69 | 0.00 | 1.59 | -17.30 | 206.89 | -22.17 | 138.38 | 0.5446 | 845.0 | 660.9 | |
| 1.25 | -5.00 | 0.73 | -5.00 | -15.62 | 206.99 | -22.07 | 136.30 | 0.5257 | 669.7 | 999999 | |
| 0.00 | 5.64 | 0.00 | 3.31 | -16.32 | 206.74 | -22.32 | 136.91 | 0.5356 | 580.0 | 483.4 | |
| 2.33 | -5.00 | 1.36 | -5.00 | -15.86 | 206.69 | -22.37 | 136.24 | 0.5313 | 463.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -17.29 | 206.48 | -22.58 | 137.85 | 0.5484 | 552.0 | 396.1 | |
| 0.00 | 3.58 | 0.00 | 2.10 | -16.08 | 206.36 | -22.70 | 136.11 | 0.5369 | -87.0 | 35.2 | |
| 1.70 | 11.02 | 1.01 | 6.54 | -16.80 | 205.65 | -23.41 | 136.19 | 0.5516 | -926.2 | -497.2 | |
| 0.00 | 5.64 | 0.00 | 3.28 | -14.33 | 205.88 | -23.18 | 133.10 | 0.5243 | -705.0 | -732.2 | |
| 5.64 | -24.00 | 3.35 | -24.00 | -16.88 | 205.50 | -23.56 | 136.11 | 0.5538 | -800.8 | 999999 | |
| 0.81 | 2.06 | 0.47 | 1.20 | -14.96 | 205.71 | -23.35 | 133.78 | 0.5324 | -918.8 | -764.4 | |
| 0.99 | 3.40 | 0.58 | 2.00 | -15.33 | 205.56 | -23.50 | 134.11 | 0.5376 | -747.2 | -663.1 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -14.67 | 205.60 | -23.45 | 133.25 | 0.5307 | -884.0 | -720.1 | |
| 4.84 | 7.53 | 2.82 | 4.38 | -14.07 | 205.33 | -23.73 | 132.05 | 0.5277 | 854.9 | 547.7 | |
| 0.00 | 5.73 | 0.00 | 3.38 | -15.62 | 205.08 | -23.98 | 133.92 | 0.5455 | -936.0 | -788.7 | |
| 3.05 | 20.16 | 1.78 | 11.80 | -14.66 | 205.16 | -23.90 | 132.70 | 0.5353 | -810.3 | -10.1 | |
| 2.87 | -32.00 | 1.68 | -32.00 | -14.25 | 204.94 | -24.12 | 131.85 | 0.5338 | 695.7 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -16.00 | 204.69 | -24.37 | 133.98 | 0.5534 | -892.0 | -762.5 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -16.20 | 204.62 | -24.44 | 134.17 | 0.5560 | -745.0 | -592.7 | |
| 0.00 | 2.69 | 0.00 | 1.57 | -14.10 | 204.82 | -24.24 | 131.48 | 0.5337 | -262.0 | -205.0 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -12.16 | 204.89 | -24.17 | 128.67 | 0.5147 | -810.0 | -548.1 | |
| 0.99 | 31.36 | 0.59 | 18.71 | -16.03 | 204.13 | -24.93 | 133.37 | 0.5595 | -965.3 | -600.8 | |
| 0.36 | 3.67 | 0.21 | 2.17 | -14.56 | 204.14 | -24.92 | 131.36 | 0.5454 | -837.8 | -602.0 | |
| 2.42 | -38.00 | 1.45 | -38.00 | -15.98 | 203.78 | -25.27 | 132.92 | 0.5627 | -945.1 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -16.41 | 203.69 | -25.37 | 133.39 | 0.5678 | -625.0 | -584.6 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -14.54 | 203.90 | -25.16 | 131.06 | 0.5478 | -843.0 | -612.2 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -15.79 | 203.71 | -25.35 | 132.57 | 0.5617 | -354.0 | -386.9 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -16.57 | 203.32 | -25.74 | 133.18 | 0.5731 | -703.0 | -610.4 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -16.34 | 203.28 | -25.78 | 132.84 | 0.5713 | -795.0 | -689.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -16.51 | 203.18 | -25.87 | 132.96 | 0.5739 | -718.0 | -640.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -17.65 | 202.90 | -26.15 | 134.14 | 0.5875 | -716.0 | -627.3 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -17.25 | 202.93 | -26.13 | 133.66 | 0.5835 | -481.0 | -476.1 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -17.02 | 202.93 | -26.13 | 133.36 | 0.5813 | -633.0 | -493.7 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -16.75 | 202.94 | -26.12 | 133.01 | 0.5788 | -673.0 | -562.2 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -14.41 | 203.26 | -25.80 | 130.17 | 0.5537 | -808.0 | -613.5 | |
| 1.08 | 118.79 | 0.65 | 71.99 | -16.22 | 202.98 | -26.08 | 132.36 | 0.5734 | -1001.3 | -396.7 | |
| 3.31 | -52.00 | 1.99 | -52.00 | -15.63 | 202.96 | -26.10 | 131.54 | 0.5682 | -1029.8 | 999999 | |
| 7.79 | -52.00 | 4.71 | -52.00 | -16.30 | 202.86 | -26.20 | 132.33 | 0.5753 | -982.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -22.79 | 201.65 | -27.41 | 138.90 | 0.6479 | -625.0 | -519.9 | |
| 0.00 | 2.78 | 0.00 | 1.70 | -17.63 | 202.62 | -26.44 | 133.82 | 0.5902 | -614.0 | -529.7 | |
| 0.00 | 3.14 | 0.00 | 1.92 | -17.45 | 202.37 | -26.69 | 133.31 | 0.5911 | -766.0 | -621.2 | |
| 0.00 | 3.14 | 0.00 | 1.93 | -17.92 | 202.29 | -26.77 | 133.83 | 0.5962 | -763.0 | -561.5 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -22.18 | 201.37 | -27.69 | 137.95 | 0.6446 | -578.0 | -477.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.36 | 202.17 | -26.89 | 132.99 | 0.5923 | -637.0 | -562.2 | |
| 4.39 | 9.77 | 2.64 | 5.86 | -14.91 | 202.46 | -26.60 | 130.01 | 0.5670 | -976.2 | -807.0 | |
| 2.33 | -52.00 | 1.41 | -52.00 | -15.50 | 202.34 | -26.72 | 130.71 | 0.5736 | -992.4 | 999999 | |
| 33.06 | -52.00 | 20.04 | -52.00 | -15.94 | 202.25 | -26.81 | 131.19 | 0.5786 | -946.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -17.45 | 201.76 | -27.30 | 132.68 | 0.5973 | -678.0 | -515.3 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.15 | 201.78 | -27.28 | 132.31 | 0.5945 | -587.0 | -553.6 | |
| 0.00 | 2.15 | 0.00 | 1.33 | -17.51 | 201.40 | -27.66 | 132.37 | 0.6016 | -665.0 | -559.9 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -16.25 | 201.38 | -27.68 | 130.72 | 0.5906 | -647.0 | -497.3 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -19.72 | 200.19 | -28.87 | 133.93 | 0.6333 | -383.0 | -258.4 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -16.97 | 200.48 | -28.58 | 130.76 | 0.6063 | -723.0 | -645.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
