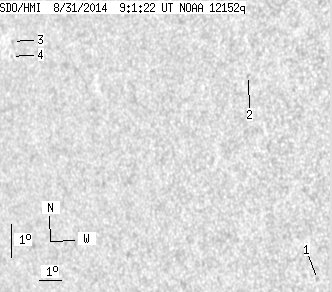

SDO HMI 2014-08-31 09:01:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.58 | 0.00 | 3.29 | 7.75 | 182.62 | -46.44 | 86.44 | 0.7180 | 43.2 | -57.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 09:01:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.21 | 4.08 | 189.34 | -39.72 | 92.27 | 0.6402 | -419.0 | -421.1 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 10.00 | 185.88 | -43.18 | 83.01 | 0.6813 | -463.0 | -402.7 | |
| 0.00 | 0.90 | 0.00 | 0.75 | 10.02 | 174.81 | -54.25 | 82.81 | 0.8077 | 553.0 | 467.2 | |
| 0.00 | 0.72 | 0.00 | 0.60 | 9.57 | 174.86 | -54.20 | 83.37 | 0.8073 | 502.0 | 442.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
