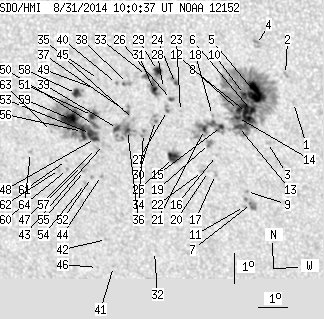

SDO HMI 2014-08-31 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 133.93 | 587.18 | 78.56 | 342.80 | -15.48 | 205.99 | -22.53 | 135.68 | 0.5292 | -102.1 | 84.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 10:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.71 | -14.86 | 209.81 | -18.70 | 139.95 | 0.4836 | 815.0 | 640.7 | |
| 0.00 | 2.15 | 0.00 | 1.21 | -13.95 | 209.63 | -18.89 | 138.40 | 0.4751 | 937.0 | 688.5 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -16.21 | 208.82 | -19.70 | 140.29 | 0.5087 | 638.0 | 518.8 | |
| 0.00 | 4.12 | 0.00 | 2.32 | -13.02 | 208.75 | -19.76 | 135.74 | 0.4739 | 529.0 | 674.7 | |
| 21.68 | 292.48 | 12.33 | 167.23 | -14.58 | 208.58 | -19.94 | 137.76 | 0.4929 | 1295.4 | 440.6 | |
| 5.29 | -5.00 | 3.02 | -5.00 | -15.18 | 208.39 | -20.13 | 138.31 | 0.5014 | 1063.3 | 999999 | |
| 0.00 | 9.05 | 0.00 | 5.31 | -18.27 | 208.04 | -20.48 | 141.79 | 0.5393 | 896.0 | 661.6 | |
| 15.05 | -5.00 | 8.62 | -5.00 | -15.25 | 208.21 | -20.31 | 138.16 | 0.5039 | 948.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -17.87 | 207.92 | -20.60 | 141.15 | 0.5359 | 798.0 | 645.7 | |
| 2.06 | -5.00 | 1.18 | -5.00 | -14.66 | 208.20 | -20.31 | 137.34 | 0.4976 | 948.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.00 | -18.38 | 207.78 | -20.73 | 141.59 | 0.5428 | 656.0 | 475.1 | |
| 2.51 | -5.00 | 1.44 | -5.00 | -15.20 | 207.95 | -20.57 | 137.72 | 0.5060 | 803.8 | 999999 | |
| 2.60 | -5.00 | 1.50 | -5.00 | -15.72 | 207.89 | -20.62 | 138.36 | 0.5123 | 642.4 | 999999 | |
| 2.06 | -5.00 | 1.18 | -5.00 | -15.43 | 207.89 | -20.63 | 137.96 | 0.5091 | 602.8 | 999999 | |
| 2.06 | -5.00 | 1.19 | -5.00 | -15.75 | 207.32 | -21.20 | 137.62 | 0.5183 | 809.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -16.72 | 207.04 | -21.48 | 138.52 | 0.5316 | 664.0 | 505.3 | |
| 0.00 | 2.33 | 0.00 | 1.37 | -17.35 | 206.92 | -21.59 | 139.19 | 0.5395 | 701.0 | 600.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -15.40 | 207.05 | -21.46 | 136.79 | 0.5173 | 675.0 | 470.3 | |
| 0.00 | 4.75 | 0.00 | 2.77 | -16.33 | 206.85 | -21.67 | 137.76 | 0.5293 | 690.0 | 580.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -17.27 | 206.70 | -21.82 | 138.78 | 0.5407 | 542.0 | 451.3 | |
| 1.88 | -5.00 | 1.09 | -5.00 | -15.88 | 206.73 | -21.79 | 137.01 | 0.5256 | 519.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -17.28 | 206.49 | -22.03 | 138.53 | 0.5428 | 549.0 | 391.0 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -15.32 | 205.98 | -22.54 | 135.29 | 0.5275 | -744.0 | -487.5 | |
| 0.99 | 4.66 | 0.57 | 2.69 | -14.41 | 205.91 | -22.61 | 133.93 | 0.5190 | -875.5 | -737.7 | |
| 7.79 | 11.91 | 4.61 | 7.04 | -16.86 | 205.55 | -22.97 | 136.80 | 0.5477 | -917.7 | -614.6 | |
| 1.07 | 2.87 | 0.63 | 1.67 | -14.95 | 205.72 | -22.80 | 134.43 | 0.5264 | -923.7 | -758.8 | |
| 0.63 | 3.31 | 0.37 | 1.94 | -15.31 | 205.54 | -22.98 | 134.72 | 0.5320 | -721.6 | -623.5 | |
| 0.00 | 2.42 | 0.00 | 1.41 | -14.60 | 205.48 | -23.04 | 133.65 | 0.5254 | -887.0 | -709.4 | |
| 4.66 | 26.07 | 2.70 | 15.17 | -14.02 | 205.34 | -23.18 | 132.65 | 0.5212 | 867.3 | 199.8 | |
| 0.36 | 6.36 | 0.21 | 3.74 | -15.66 | 205.08 | -23.43 | 134.64 | 0.5403 | -902.2 | -753.9 | |
| 3.49 | -29.00 | 2.04 | -29.00 | -14.68 | 205.17 | -23.35 | 133.38 | 0.5296 | -762.6 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -20.07 | 204.41 | -24.10 | 139.39 | 0.5916 | -564.0 | -623.5 | |
| 1.52 | -29.00 | 0.89 | -29.00 | -14.20 | 204.95 | -23.57 | 132.43 | 0.5273 | 757.0 | 999999 | |
| 0.00 | 5.02 | 0.00 | 2.97 | -16.11 | 204.61 | -23.90 | 134.69 | 0.5497 | -708.0 | -671.3 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -15.67 | 204.33 | -24.19 | 133.74 | 0.5483 | -253.0 | -253.6 | |
| 1.79 | 36.73 | 1.06 | 21.83 | -16.05 | 204.07 | -24.45 | 133.95 | 0.5546 | -1064.1 | -559.3 | |
| 0.72 | -36.00 | 0.42 | -36.00 | -15.45 | 204.15 | -24.37 | 133.23 | 0.5480 | 441.6 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.31 | -14.50 | 204.26 | -24.25 | 132.04 | 0.5376 | -766.0 | -671.4 | |
| 2.78 | -36.00 | 1.65 | -36.00 | -16.00 | 203.73 | -24.79 | 133.49 | 0.5577 | -935.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -14.52 | 203.88 | -24.63 | 131.63 | 0.5419 | -762.0 | -581.1 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -20.66 | 202.85 | -25.67 | 138.33 | 0.6119 | -622.0 | -500.3 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -19.75 | 202.76 | -25.76 | 137.16 | 0.6038 | 317.0 | 271.5 | |
| 0.00 | 1.88 | 0.00 | 1.13 | -16.56 | 203.16 | -25.35 | 133.60 | 0.5689 | -669.0 | -550.2 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -17.59 | 202.94 | -25.58 | 134.70 | 0.5812 | -681.0 | -536.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -14.42 | 203.27 | -25.24 | 130.80 | 0.5477 | -782.0 | -623.8 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -20.73 | 202.26 | -26.26 | 137.77 | 0.6179 | -567.0 | -386.0 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -16.70 | 202.90 | -25.62 | 133.50 | 0.5731 | -605.0 | -560.5 | |
| 3.40 | 125.32 | 2.05 | 75.57 | -16.37 | 202.91 | -25.61 | 133.07 | 0.5698 | -857.9 | -388.3 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -14.72 | 203.10 | -25.42 | 131.03 | 0.5524 | -693.0 | -561.4 | |
| 2.69 | -48.00 | 1.61 | -48.00 | -15.91 | 202.90 | -25.61 | 132.45 | 0.5656 | -969.4 | 999999 | |
| 4.30 | -48.00 | 2.57 | -48.00 | -15.62 | 202.91 | -25.61 | 132.06 | 0.5627 | -1083.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -17.68 | 202.57 | -25.95 | 134.41 | 0.5857 | -741.0 | -668.7 | |
| 6.00 | -48.00 | 3.61 | -48.00 | -16.22 | 202.76 | -25.76 | 132.70 | 0.5700 | -1015.3 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.04 | -17.90 | 202.33 | -26.19 | 134.41 | 0.5902 | -744.0 | -602.7 | |
| 0.00 | 2.15 | 0.00 | 1.31 | -17.46 | 202.36 | -26.16 | 133.89 | 0.5858 | -816.0 | -648.1 | |
| 7.88 | -48.00 | 4.75 | -48.00 | -16.17 | 202.48 | -26.03 | 132.33 | 0.5724 | -934.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.26 | -17.30 | 202.28 | -26.24 | 133.60 | 0.5851 | -688.0 | -592.1 | |
| 4.30 | 7.79 | 2.57 | 4.65 | -14.92 | 202.45 | -26.07 | 130.59 | 0.5614 | -976.4 | -836.3 | |
| 24.37 | -48.00 | 14.70 | -48.00 | -15.79 | 202.15 | -26.37 | 131.46 | 0.5725 | -954.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.46 | 201.76 | -26.76 | 133.25 | 0.5919 | -711.0 | -522.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -17.16 | 201.77 | -26.75 | 132.88 | 0.5890 | -623.0 | -592.8 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.48 | 201.47 | -27.05 | 132.97 | 0.5950 | -614.0 | -613.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -16.23 | 201.38 | -27.14 | 131.24 | 0.5846 | -549.0 | -451.6 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -16.97 | 200.51 | -28.00 | 131.34 | 0.6004 | -828.0 | -626.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
