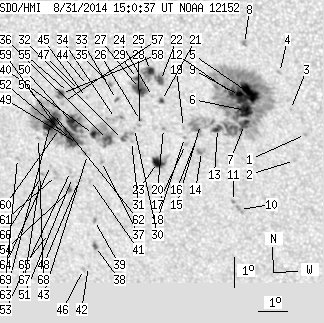

SDO HMI 2014-08-31 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.88 | 672.40 | 84.48 | 385.25 | -15.46 | 205.82 | -19.95 | 139.17 | 0.5030 | -166.3 | 58.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.75 | -15.79 | 210.44 | -15.33 | 146.60 | 0.4640 | 733.0 | 620.6 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -16.66 | 210.01 | -15.76 | 146.93 | 0.4788 | 700.0 | 493.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -14.99 | 210.01 | -15.75 | 144.86 | 0.4575 | 746.0 | 530.7 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -13.79 | 209.74 | -16.02 | 142.79 | 0.4451 | 838.0 | 652.2 | |
| 19.16 | 300.04 | 10.70 | 168.16 | -14.51 | 208.71 | -17.05 | 142.06 | 0.4636 | 1327.5 | 455.5 | |
| 11.73 | -5.00 | 6.58 | -5.00 | -15.07 | 208.53 | -17.23 | 142.53 | 0.4721 | 982.3 | 999999 | |
| 6.71 | -5.00 | 3.78 | -5.00 | -15.53 | 208.46 | -17.30 | 143.02 | 0.4783 | 854.5 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.48 | -12.89 | 208.67 | -17.09 | 139.69 | 0.4447 | 875.0 | 761.3 | |
| 8.32 | -5.00 | 4.66 | -5.00 | -14.59 | 208.38 | -17.39 | 141.62 | 0.4677 | 1066.0 | 999999 | |
| 0.00 | 3.22 | 0.00 | 1.86 | -18.37 | 208.02 | -17.75 | 145.78 | 0.5165 | 746.0 | 642.3 | |
| 0.00 | 1.70 | 0.00 | 0.98 | -18.10 | 207.85 | -17.92 | 145.23 | 0.5148 | 792.0 | 657.2 | |
| 3.67 | -5.00 | 2.06 | -5.00 | -14.53 | 208.15 | -17.61 | 141.19 | 0.4692 | 913.1 | 999999 | |
| 3.85 | -5.00 | 2.18 | -5.00 | -15.70 | 207.56 | -18.21 | 141.82 | 0.4887 | 785.3 | 999999 | |
| 0.00 | 5.01 | 0.00 | 2.87 | -16.48 | 206.95 | -18.82 | 141.92 | 0.5035 | 674.0 | 580.7 | |
| 0.00 | 25.06 | 0.00 | 14.25 | -15.59 | 207.00 | -18.76 | 140.85 | 0.4927 | 237.0 | 272.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -15.99 | 206.86 | -18.90 | 141.16 | 0.4986 | 349.0 | 356.6 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -16.27 | 206.43 | -19.33 | 140.90 | 0.5059 | -300.0 | -236.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -16.04 | 206.42 | -19.34 | 140.59 | 0.5034 | 454.0 | 336.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -15.71 | 206.42 | -19.34 | 140.16 | 0.4996 | 379.0 | 257.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -15.77 | 205.75 | -20.02 | 139.28 | 0.5069 | -810.0 | -651.3 | |
| 1.43 | 2.69 | 0.82 | 1.53 | -14.86 | 205.78 | -19.99 | 138.07 | 0.4964 | -818.9 | -643.7 | |
| 3.49 | 44.49 | 1.98 | 25.32 | -14.21 | 205.81 | -19.96 | 137.19 | 0.4889 | -966.6 | 105.2 | |
| 8.15 | 13.96 | 4.73 | 8.10 | -16.91 | 205.42 | -20.34 | 140.30 | 0.5227 | -949.1 | -588.7 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -14.74 | 205.49 | -20.28 | 137.49 | 0.4980 | -514.0 | -346.7 | |
| 4.30 | -22.00 | 2.44 | -22.00 | -13.89 | 205.50 | -20.26 | 136.31 | 0.4887 | 787.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -15.55 | 205.00 | -20.76 | 137.93 | 0.5117 | -808.0 | -655.8 | |
| 11.01 | -22.00 | 6.29 | -22.00 | -14.50 | 205.08 | -20.69 | 136.58 | 0.4996 | -537.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -15.71 | 204.95 | -20.81 | 138.08 | 0.5141 | -903.0 | -785.3 | |
| 1.79 | -22.00 | 1.02 | -22.00 | -14.17 | 205.04 | -20.72 | 136.07 | 0.4965 | 728.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -15.82 | 204.77 | -20.99 | 137.98 | 0.5170 | -794.0 | -656.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -16.25 | 204.62 | -21.14 | 138.36 | 0.5232 | -692.0 | -611.1 | |
| 0.98 | 7.79 | 0.57 | 4.52 | -16.20 | 204.32 | -21.44 | 137.89 | 0.5256 | -819.6 | -769.7 | |
| 0.45 | 2.15 | 0.26 | 1.24 | -14.89 | 204.27 | -21.50 | 136.04 | 0.5123 | 516.0 | 374.7 | |
| 0.00 | 7.25 | 0.00 | 4.20 | -15.52 | 204.16 | -21.60 | 136.77 | 0.5199 | 266.0 | 225.0 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -14.41 | 204.11 | -21.65 | 135.16 | 0.5088 | -810.0 | -712.6 | |
| 5.46 | 40.19 | 3.19 | 23.46 | -16.23 | 203.81 | -21.96 | 137.25 | 0.5310 | -1027.4 | -649.4 | |
| 0.00 | 1.61 | 0.00 | 0.95 | -16.97 | 203.51 | -22.25 | 137.84 | 0.5417 | -776.0 | -636.6 | |
| 1.61 | 3.85 | 0.98 | 2.33 | -19.84 | 202.90 | -22.86 | 140.60 | 0.5780 | 732.4 | 518.6 | |
| 0.00 | 1.88 | 0.00 | 1.13 | -18.96 | 203.00 | -22.76 | 139.68 | 0.5677 | -793.0 | -663.9 | |
| 3.40 | -36.00 | 1.99 | -36.00 | -16.08 | 203.35 | -22.42 | 136.48 | 0.5341 | -1042.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.90 | -17.62 | 203.05 | -22.71 | 138.09 | 0.5531 | -569.0 | -458.9 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -20.54 | 202.55 | -23.22 | 140.98 | 0.5886 | -660.0 | -520.8 | |
| 0.00 | 2.06 | 0.00 | 1.21 | -16.76 | 203.06 | -22.70 | 137.00 | 0.5440 | -562.0 | -580.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -14.48 | 203.33 | -22.44 | 134.24 | 0.5178 | -717.0 | -528.4 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -14.88 | 203.25 | -22.51 | 134.70 | 0.5227 | -781.0 | -560.9 | |
| 0.00 | 2.15 | 0.00 | 1.32 | -20.65 | 202.35 | -23.41 | 140.88 | 0.5915 | -573.0 | -479.5 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -14.66 | 203.04 | -22.73 | 134.13 | 0.5227 | -814.0 | -699.0 | |
| 0.00 | 1.97 | 0.00 | 1.17 | -17.67 | 202.63 | -23.14 | 137.64 | 0.5578 | -591.0 | -537.7 | |
| 3.22 | 152.89 | 1.90 | 90.11 | -16.41 | 202.76 | -23.00 | 136.17 | 0.5434 | -787.8 | -420.1 | |
| 12.17 | -49.00 | 7.14 | -49.00 | -15.75 | 202.71 | -23.06 | 135.23 | 0.5373 | -1113.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -17.55 | 202.44 | -23.33 | 137.26 | 0.5584 | -752.0 | -617.0 | |
| 10.11 | -49.00 | 5.96 | -49.00 | -16.29 | 202.57 | -23.19 | 135.78 | 0.5441 | -893.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.96 | -17.35 | 202.40 | -23.37 | 136.95 | 0.5568 | -609.0 | -564.6 | |
| 0.98 | 2.42 | 0.59 | 1.45 | -17.99 | 202.27 | -23.49 | 137.61 | 0.5645 | -758.8 | -607.7 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -14.74 | 202.66 | -23.11 | 133.77 | 0.5277 | -683.0 | -491.9 | |
| 3.58 | -49.00 | 2.11 | -49.00 | -16.03 | 202.43 | -23.33 | 135.26 | 0.5429 | -1023.7 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.36 | -15.08 | 202.41 | -23.35 | 133.94 | 0.5336 | -650.0 | -568.2 | |
| 2.69 | 5.91 | 1.57 | 3.45 | -14.79 | 202.41 | -23.35 | 133.53 | 0.5307 | -1024.0 | -816.5 | |
| 0.90 | -49.00 | 0.53 | -49.00 | -16.11 | 202.25 | -23.51 | 135.14 | 0.5455 | -751.8 | 999999 | |
| 1.07 | -49.00 | 0.63 | -49.00 | -15.94 | 202.20 | -23.56 | 134.87 | 0.5444 | -878.3 | 999999 | |
| 0.00 | 4.30 | 0.00 | 2.57 | -17.51 | 201.89 | -23.88 | 136.55 | 0.5634 | -786.0 | -612.2 | |
| 1.52 | -49.00 | 0.89 | -49.00 | -15.46 | 202.06 | -23.71 | 134.03 | 0.5411 | -994.8 | 999999 | |
| 15.13 | -49.00 | 8.93 | -49.00 | -15.80 | 201.91 | -23.85 | 134.32 | 0.5459 | -964.8 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -17.19 | 201.73 | -24.04 | 135.94 | 0.5618 | -745.0 | -613.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -19.49 | 201.31 | -24.46 | 138.30 | 0.5889 | -535.0 | -477.2 | |
| 0.00 | 1.52 | 0.00 | 0.91 | -17.51 | 201.40 | -24.36 | 135.97 | 0.5681 | -741.0 | -599.6 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -17.75 | 201.26 | -24.50 | 136.11 | 0.5719 | -558.0 | -446.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -16.31 | 201.43 | -24.33 | 134.44 | 0.5561 | -568.0 | -502.5 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -17.02 | 200.60 | -25.16 | 134.42 | 0.5714 | -671.0 | -523.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
