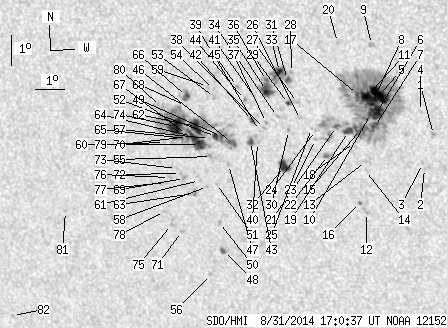

SDO HMI 2014-08-31 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 162.32 | 688.37 | 92.46 | 391.35 | -15.43 | 205.94 | -18.72 | 140.97 | 0.4909 | -77.8 | 30.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.51 | 0.00 | 1.39 | -15.71 | 210.45 | -14.21 | 148.47 | 0.4538 | 919.0 | 701.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -16.84 | 210.07 | -14.59 | 149.12 | 0.4717 | 682.0 | 495.5 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -16.68 | 210.02 | -14.64 | 148.84 | 0.4700 | 749.0 | 592.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -14.97 | 210.08 | -14.58 | 146.90 | 0.4472 | 659.0 | 491.8 | |
| 23.18 | 351.42 | 12.86 | 195.93 | -14.49 | 208.75 | -15.91 | 143.95 | 0.4528 | 1378.6 | 405.1 | |
| 14.05 | -5.00 | 7.83 | -5.00 | -15.05 | 208.64 | -16.02 | 144.51 | 0.4608 | 1006.2 | 999999 | |
| 5.10 | -5.00 | 2.86 | -5.00 | -15.51 | 208.54 | -16.12 | 144.93 | 0.4674 | 898.3 | 999999 | |
| 3.22 | -5.00 | 1.79 | -5.00 | -14.76 | 208.50 | -16.16 | 143.89 | 0.4584 | 1036.2 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.47 | -12.85 | 208.64 | -16.02 | 141.46 | 0.4335 | 818.0 | 734.4 | |
| 2.68 | -5.00 | 1.50 | -5.00 | -15.12 | 208.44 | -16.22 | 144.26 | 0.4635 | 883.0 | 999999 | |
| 8.50 | -5.00 | 4.73 | -5.00 | -14.54 | 208.36 | -16.30 | 143.35 | 0.4570 | 1137.8 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -18.38 | 208.02 | -16.64 | 147.49 | 0.5077 | 722.0 | 556.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.68 | 208.15 | -16.51 | 145.72 | 0.4854 | 742.0 | 569.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -16.98 | 208.12 | -16.54 | 146.04 | 0.4894 | 669.0 | 509.2 | |
| 8.77 | -5.00 | 4.93 | -5.00 | -15.63 | 208.07 | -16.59 | 144.30 | 0.4730 | 798.6 | 999999 | |
| 0.36 | 1.43 | 0.21 | 0.82 | -18.05 | 207.82 | -16.84 | 146.81 | 0.5053 | 730.0 | 647.7 | |
| 2.42 | -5.00 | 1.35 | -5.00 | -14.49 | 208.07 | -16.59 | 142.79 | 0.4590 | 925.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.06 | 207.84 | -16.82 | 144.47 | 0.4805 | 598.0 | 470.4 | |
| 4.38 | -5.00 | 2.47 | -5.00 | -15.71 | 207.67 | -16.99 | 143.76 | 0.4776 | 853.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -12.82 | 207.54 | -17.12 | 139.55 | 0.4442 | -786.0 | -583.2 | |
| 1.43 | -5.00 | 0.81 | -5.00 | -15.56 | 207.29 | -17.37 | 142.95 | 0.4793 | 747.6 | 999999 | |
| 0.00 | 4.12 | 0.00 | 2.34 | -16.53 | 206.90 | -17.76 | 143.58 | 0.4945 | 666.0 | 588.3 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -16.01 | 206.56 | -18.10 | 142.40 | 0.4915 | 520.0 | 403.9 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -15.72 | 206.58 | -18.08 | 142.06 | 0.4877 | 550.0 | 391.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -15.66 | 206.46 | -18.20 | 141.79 | 0.4882 | 598.0 | 458.8 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -15.38 | 206.12 | -18.54 | 140.90 | 0.4881 | -91.0 | -97.3 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -14.82 | 206.07 | -18.59 | 140.08 | 0.4822 | -837.0 | -654.5 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -13.85 | 205.96 | -18.70 | 138.55 | 0.4722 | -770.0 | -676.7 | |
| 1.16 | 2.51 | 0.66 | 1.42 | -14.87 | 205.77 | -18.89 | 139.69 | 0.4856 | -791.5 | -692.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -15.75 | 205.69 | -18.98 | 140.75 | 0.4967 | -982.0 | -865.5 | |
| 1.88 | 43.67 | 1.06 | 24.66 | -14.09 | 205.81 | -18.85 | 138.65 | 0.4763 | -1015.0 | 101.6 | |
| 7.96 | 12.44 | 4.59 | 7.16 | -16.95 | 205.43 | -19.23 | 141.92 | 0.5129 | -1028.3 | -663.7 | |
| 3.76 | -31.00 | 2.11 | -31.00 | -13.84 | 205.57 | -19.09 | 137.93 | 0.4760 | 829.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -15.31 | 205.36 | -19.30 | 139.69 | 0.4947 | -725.0 | -564.4 | |
| 9.75 | -31.00 | 5.53 | -31.00 | -14.47 | 205.08 | -19.58 | 138.12 | 0.4881 | -558.2 | 999999 | |
| 0.81 | -31.00 | 0.46 | -31.00 | -14.15 | 205.11 | -19.55 | 137.70 | 0.4842 | 847.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -15.52 | 204.98 | -19.68 | 139.41 | 0.5009 | -778.0 | -636.8 | |
| 0.00 | 1.61 | 0.00 | 0.92 | -15.72 | 204.89 | -19.77 | 139.56 | 0.5040 | -845.0 | -595.4 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -15.80 | 204.71 | -19.95 | 139.41 | 0.5065 | -487.0 | -536.3 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -16.20 | 204.60 | -20.06 | 139.78 | 0.5120 | -760.0 | -563.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -14.69 | 204.66 | -20.00 | 137.82 | 0.4947 | 559.0 | 384.5 | |
| 1.34 | 2.86 | 0.77 | 1.64 | -15.48 | 204.51 | -20.15 | 138.70 | 0.5049 | 637.4 | 447.7 | |
| 2.42 | 6.89 | 1.39 | 3.97 | -16.17 | 204.37 | -20.29 | 139.42 | 0.5140 | -931.3 | -740.4 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -14.80 | 204.31 | -20.35 | 137.49 | 0.4995 | 660.0 | 558.6 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -14.39 | 204.12 | -20.54 | 136.64 | 0.4969 | -856.0 | -698.5 | |
| 4.03 | 28.99 | 2.33 | 16.81 | -16.24 | 203.72 | -20.94 | 138.62 | 0.5210 | -1048.1 | -794.3 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.97 | 203.54 | -21.12 | 139.32 | 0.5309 | -721.0 | -623.0 | |
| 1.52 | 2.77 | 0.91 | 1.67 | -19.91 | 202.98 | -21.69 | 142.15 | 0.5683 | 770.0 | 600.5 | |
| 1.25 | -46.00 | 0.73 | -46.00 | -16.05 | 203.41 | -21.25 | 137.95 | 0.5222 | -1168.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.12 | -18.93 | 202.98 | -21.68 | 141.01 | 0.5576 | -841.0 | -658.2 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -17.62 | 203.05 | -21.61 | 139.50 | 0.5427 | -567.0 | -501.1 | |
| 2.77 | -46.00 | 1.61 | -46.00 | -16.06 | 203.20 | -21.46 | 137.69 | 0.5243 | -1100.7 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -14.78 | 203.31 | -21.35 | 136.09 | 0.5096 | -854.0 | -731.2 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -14.52 | 203.30 | -21.36 | 135.71 | 0.5069 | -855.0 | -638.6 | |
| 0.00 | 3.40 | 0.00 | 1.99 | -16.73 | 202.99 | -21.67 | 138.29 | 0.5336 | -626.0 | -592.8 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -20.72 | 202.40 | -22.26 | 142.35 | 0.5822 | -667.0 | -550.0 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -16.14 | 202.99 | -21.67 | 137.52 | 0.5272 | -759.0 | -683.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -17.74 | 202.72 | -21.94 | 139.23 | 0.5470 | -693.0 | -590.4 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -14.43 | 203.11 | -21.55 | 135.33 | 0.5080 | -696.0 | -588.3 | |
| 9.13 | 144.25 | 5.34 | 84.30 | -16.35 | 202.63 | -22.03 | 137.33 | 0.5332 | -894.7 | -522.3 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -17.55 | 202.47 | -22.19 | 138.68 | 0.5474 | -660.0 | -550.1 | |
| 11.72 | -60.00 | 6.83 | -60.00 | -15.76 | 202.59 | -22.07 | 136.50 | 0.5273 | -1192.2 | 999999 | |
| 0.00 | 4.30 | 0.00 | 2.55 | -18.00 | 202.21 | -22.45 | 138.90 | 0.5547 | -723.0 | -637.8 | |
| 6.53 | -60.00 | 3.82 | -60.00 | -16.10 | 202.42 | -22.24 | 136.72 | 0.5326 | -1022.2 | 999999 | |
| 1.52 | -60.00 | 0.89 | -60.00 | -16.17 | 202.24 | -22.42 | 136.59 | 0.5352 | -739.1 | 999999 | |
| 3.22 | 8.41 | 1.87 | 4.87 | -14.79 | 202.36 | -22.30 | 134.87 | 0.5196 | -1057.7 | -642.9 | |
| 0.63 | -60.00 | 0.37 | -60.00 | -16.04 | 202.22 | -22.44 | 136.40 | 0.5340 | -842.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -15.09 | 202.30 | -22.36 | 135.19 | 0.5233 | -668.0 | -574.0 | |
| 0.00 | 2.51 | 0.00 | 1.49 | -17.51 | 201.96 | -22.70 | 137.98 | 0.5519 | -749.0 | -648.5 | |
| 0.81 | -60.00 | 0.47 | -60.00 | -16.15 | 202.04 | -22.62 | 136.31 | 0.5370 | -489.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -19.30 | 201.61 | -23.05 | 139.74 | 0.5741 | -774.0 | -676.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -17.35 | 201.85 | -22.81 | 137.64 | 0.5513 | -605.0 | -595.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -17.19 | 201.73 | -22.93 | 137.29 | 0.5508 | -659.0 | -523.9 | |
| 16.02 | -60.00 | 9.38 | -60.00 | -15.80 | 201.87 | -22.79 | 135.63 | 0.5350 | -1007.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.03 | -19.08 | 201.29 | -23.37 | 139.10 | 0.5747 | -719.0 | -536.9 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -17.50 | 201.45 | -23.21 | 137.34 | 0.5568 | -779.0 | -619.9 | |
| 0.00 | 1.25 | 0.00 | 0.75 | -17.68 | 201.29 | -23.37 | 137.36 | 0.5602 | -670.0 | -431.1 | |
| 0.00 | 1.79 | 0.00 | 1.08 | -18.66 | 201.11 | -23.55 | 138.37 | 0.5720 | -600.0 | -366.6 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -16.35 | 201.43 | -23.23 | 135.81 | 0.5451 | -553.0 | -331.6 | |
| 0.00 | 9.58 | 0.00 | 5.60 | -15.17 | 201.44 | -23.22 | 134.22 | 0.5331 | -210.0 | -183.8 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -18.85 | 197.57 | -27.09 | 134.66 | 0.6081 | -568.0 | -401.5 | |
| 0.00 | 1.25 | 0.00 | 0.83 | -22.57 | 194.85 | -29.81 | 136.33 | 0.6671 | -596.0 | -477.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
