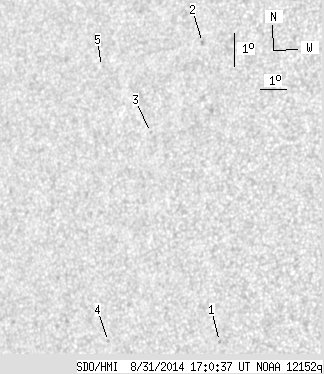

SDO HMI 2014-08-31 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.73 | 0.00 | 2.97 | 8.95 | 186.80 | -37.86 | 84.64 | 0.6135 | -672.2 | -564.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-31 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.54 | 4.24 | 189.44 | -35.22 | 92.83 | 0.5780 | -703.0 | -584.6 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 13.22 | 187.80 | -36.86 | 77.49 | 0.6004 | -798.0 | -634.9 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 10.35 | 186.23 | -38.44 | 82.36 | 0.6192 | -697.0 | -549.8 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 3.92 | 185.21 | -39.45 | 92.56 | 0.6368 | -607.0 | -498.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 12.19 | 183.96 | -40.70 | 79.60 | 0.6503 | -556.0 | -497.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
