SDO HMI 2014-08-31 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.51 | 0.00 | 4.90 | 9.52 | 183.06 | -40.49 | 83.79 | 0.6435 | -214.9 | -185.8 | |
|
previous
or next observation for the same group /

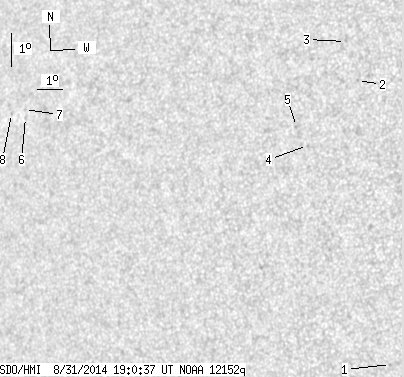

back to the solar disc SDO HMI 2014-08-31 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.69 | 3.54 | 190.43 | -33.12 | 94.53 | 0.5492 | -668.0 | -579.8 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 12.03 | 188.43 | -35.12 | 79.25 | 0.5749 | -630.0 | -490.0 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 13.18 | 187.79 | -35.76 | 77.38 | 0.5853 | -689.0 | -634.8 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 9.94 | 186.82 | -36.74 | 82.98 | 0.5958 | -651.0 | -512.2 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 10.48 | 186.32 | -37.23 | 82.10 | 0.6029 | -656.0 | -541.6 | |
| 0.00 | 1.16 | 0.00 | 0.86 | 9.81 | 175.00 | -48.55 | 83.24 | 0.7460 | 618.0 | 503.8 | |
| 0.00 | 0.45 | 0.00 | 0.33 | 10.05 | 174.91 | -48.64 | 82.92 | 0.7471 | 541.0 | 412.8 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 9.87 | 174.33 | -49.22 | 83.15 | 0.7537 | 416.0 | 333.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
